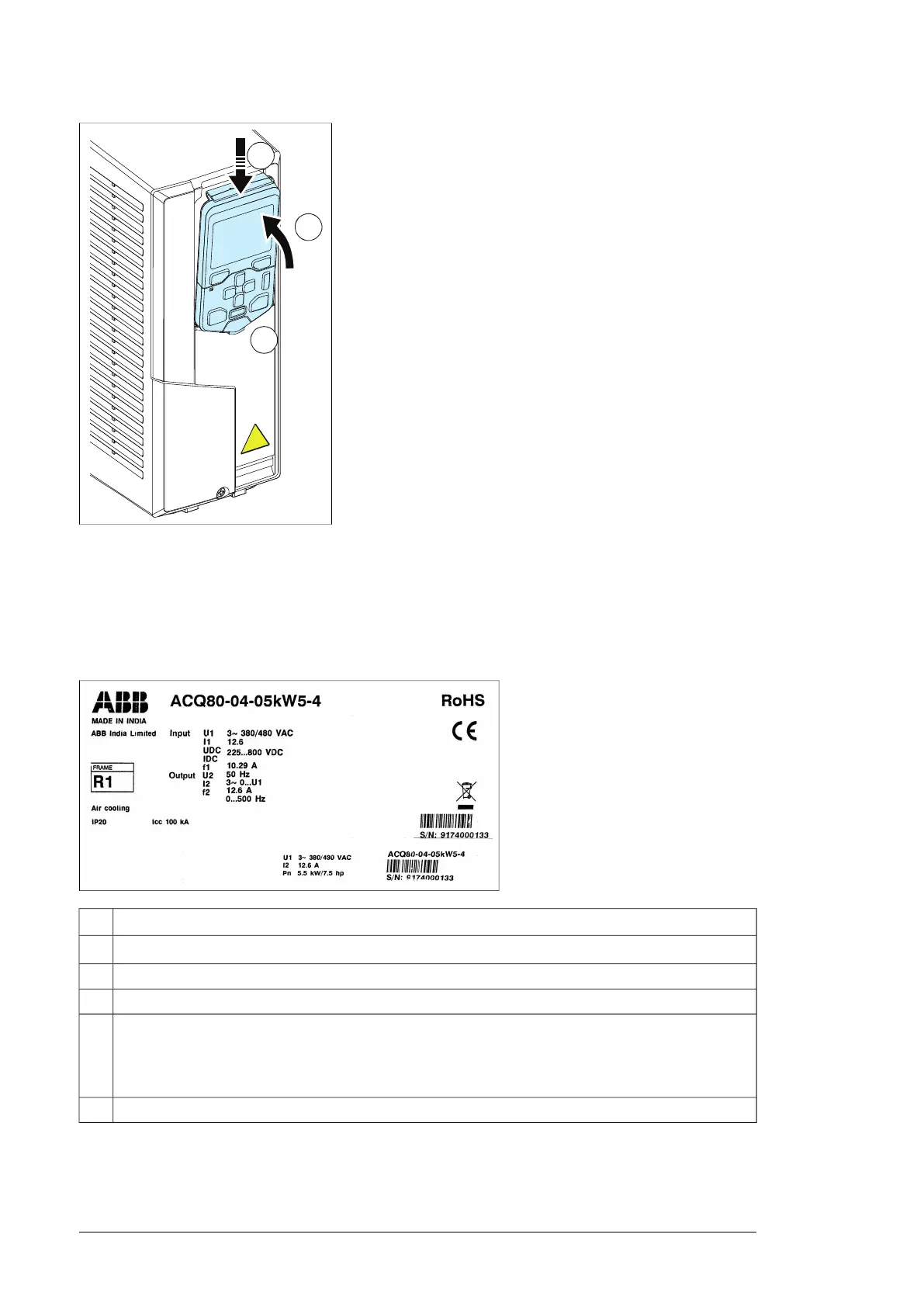

Type designation label
The type designation label includes IEC ratings, appropriate markings and the type
designation and serial number, which allow identification of each drive. The type designation
label is located on the left side of the drive, see section Layout (page 26). An example label
is shown below.
DescriptionNo.
Type designation, see section Type designation key (page 36).
1
Frame (size)2
Degree of protection3
Nominal ratings in the supply voltage range, see section Ratings (page 111), section Electrical power
network specification (page 124) and section Motor connection data (page 124).
4
Input voltage range 3~ 380…480V AC or 225...800V DC. This is indicated in the type designation label
as typical input voltage levels (U1) (3~ 400/480V AC) and (UDC) (225...800V DC).
Valid markings5
34 Operation principle and hardware description
