Installing the drive
￭ Installing the drive vertically, frames size R0…R2
The figures show frame R0 as an example.

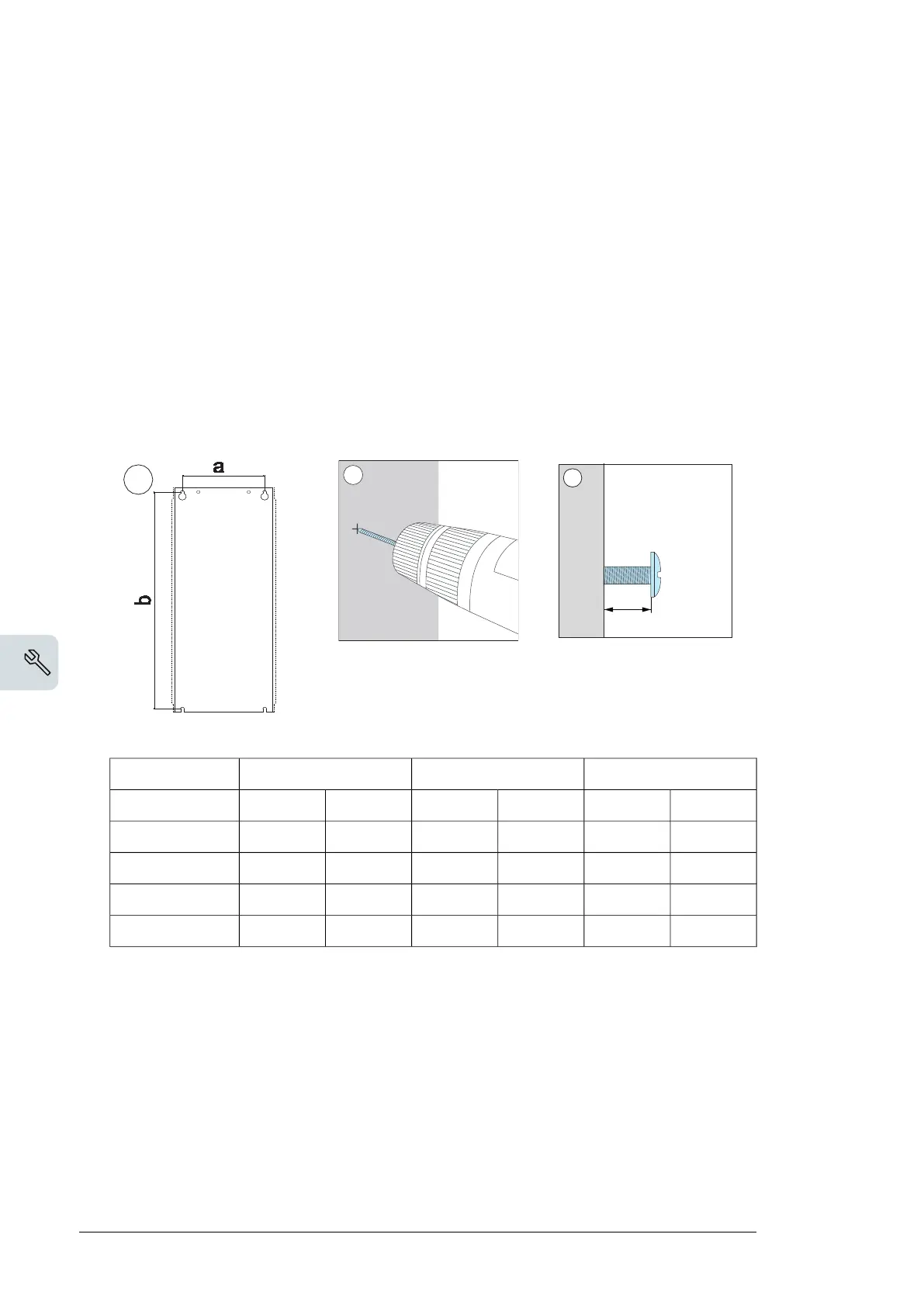

1. Mark the hole locations with the mounting template included in the package. Do not
leave the mounting template behind the drive. The drive dimensions and hole locations
are also shown in the drawings, see chapter Dimension drawings (page 137).
Note:
You can also adopt guide rail installation.
2. Drill the mounting holes.
3. Insert anchors or plugs into the holes and start the screws or bolts into the anchors or
plugs.
3
×4
Mechanical installation 47
Installing the drive
 Installing the drive vertically, frames size R0…R2
The figures show frame R0 as an example.
1. Mark the hole locations with the mounting template included in the package. Do
not leave the mounting template behind the drive. The drive dimensions and hole
locations are also shown in the drawings, see chapter Dimension drawings on
page 149.
Note: You can also adopt guide rail installation.
2. Drill the mounting holes.
3. Insert anchors or plugs into the holes and start the screws or bolts into the
anchors or plugs.
R0 R1 R2
mm in mm in mm in
a 50 1.97 75 2.95 148 5.83
b 191 7.52 191 7.52 191 7.52
Weight kg lb kg lb kg lb
4.47 9.86 4.57 10.08 7.54 16.63
2 3
×4
R0…R2: M5
×4
1
×4
Mechanical installation 47
Installing the drive
 Installing the drive vertically, frames size R0…R2
The figures show frame R0 as an example.
1. Mark the hole locations with the mounting template included in the package. Do
not leave the mounting template behind the drive. The drive dimensions and hole
locations are also shown in the drawings, see chapter Dimension drawings on
page 149.
Note: You can also adopt guide rail installation.
2. Drill the mounting holes.
3. Insert anchors or plugs into the holes and start the screws or bolts into the
anchors or plugs.
R0 R1 R2
mm in mm in mm in
a 50 1.97 75 2.95 148 5.83
b 191 7.52 191 7.52 191 7.52
Weight kg lb kg lb kg lb
4.47 9.86 4.57 10.08 7.54 16.63
2 3
×4
R0…R2: M5
×4
1
×4
R2R1R0
inmminmminmm
5.831482.95751.9750a
7.521917.521917.52191b
lbkglbkglbkgWeight
6.42.94.21.93.51.6
46 Mechanical installation
4
