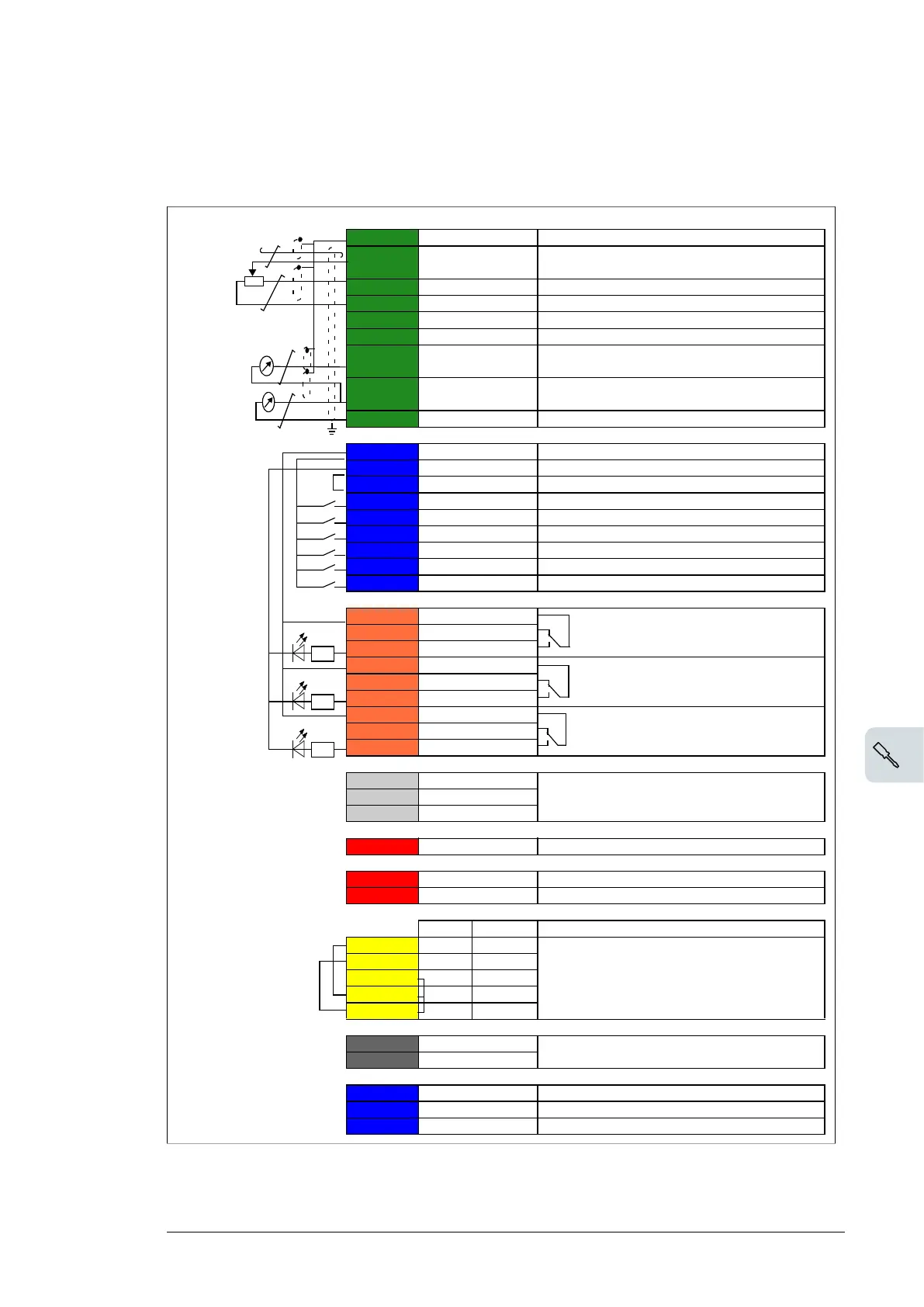

X1 Reference voltage and analog inputs
1 SCR Signal cable shield (screen)
2 AI1 Open for configuration
1)
3 AGND Analog input circuit, common
4 +10V 10 V DC reference voltage
5 AI2
9 AGND Analog output circuit common
X2, X3 Aux. voltage output and programmable digital inputs
10 +24V Aux. voltage output +24 VDC, max. 250 mA
3)
11 DGND Aux. voltage output common
12 DCOM Digital input common for all
13 DI1 Start (0) /Stop (1)
8)
14 DI2 Open for configuration
15 DI3 Open for configuration
16 DI4 Open for configuration
17 DI5 Open for configuration
18 DI6 Open for configuration
X6, X7, X8 Relay outputs
19 RO1C
Ready Run
9)
250 V AC / 30 V DC
2 A
20 RO1A
21 RO1B
22 RO2C
Running
9)
250 V AC / 30 V DC
2 A
23 RO2A
24 RO2B
25 RO3C
Fault (-1)
9)
250 V AC / 30 V DC
2 A
26 RO3A
27 RO3B
X5 Built-in fieldbus
29 B+
Internal Modbus RTU (EIA-485)
30 A-
31 DGND
(Frame R0~R2)
S100 TERM&BIAS Termination resistor and bias resistor switch
(Frame R3~R8)
S100 TERM Termination resistor switch
S200 BIAS Bias resistor switch
X4
Safety torque off
R0~R2 R3~R8
33 - OUT1
Safety torque off function. Factory connection.
Both circuits must be closed for the drive to
start. See Safe torque off function.
34 SGND OUT2
35 OUT1 SGND
36 IN1 IN1
37 IN2 IN2
X10 24 V AC/DC (frames R6~R8 only)
40 24 V AC/DC- in 24V AC/DC input, for control unit power supply
when external main power is disconnected.
41 24 V AC/DC+ in
X11 Redundant auxiliary voltage output (frames R0~R2 only)
42 +24 V Aux. voltage output +24 V DC, max. 250 mA
3)
43 DGND Aux. voltage output common
44 DCOM Digital input common for all
4)
6)
Max.
500 ohm
7 )
1…10 kohm
R3~R8
4)
5)
