ABB ACQ80-04 Series User Manual

Activation switchK

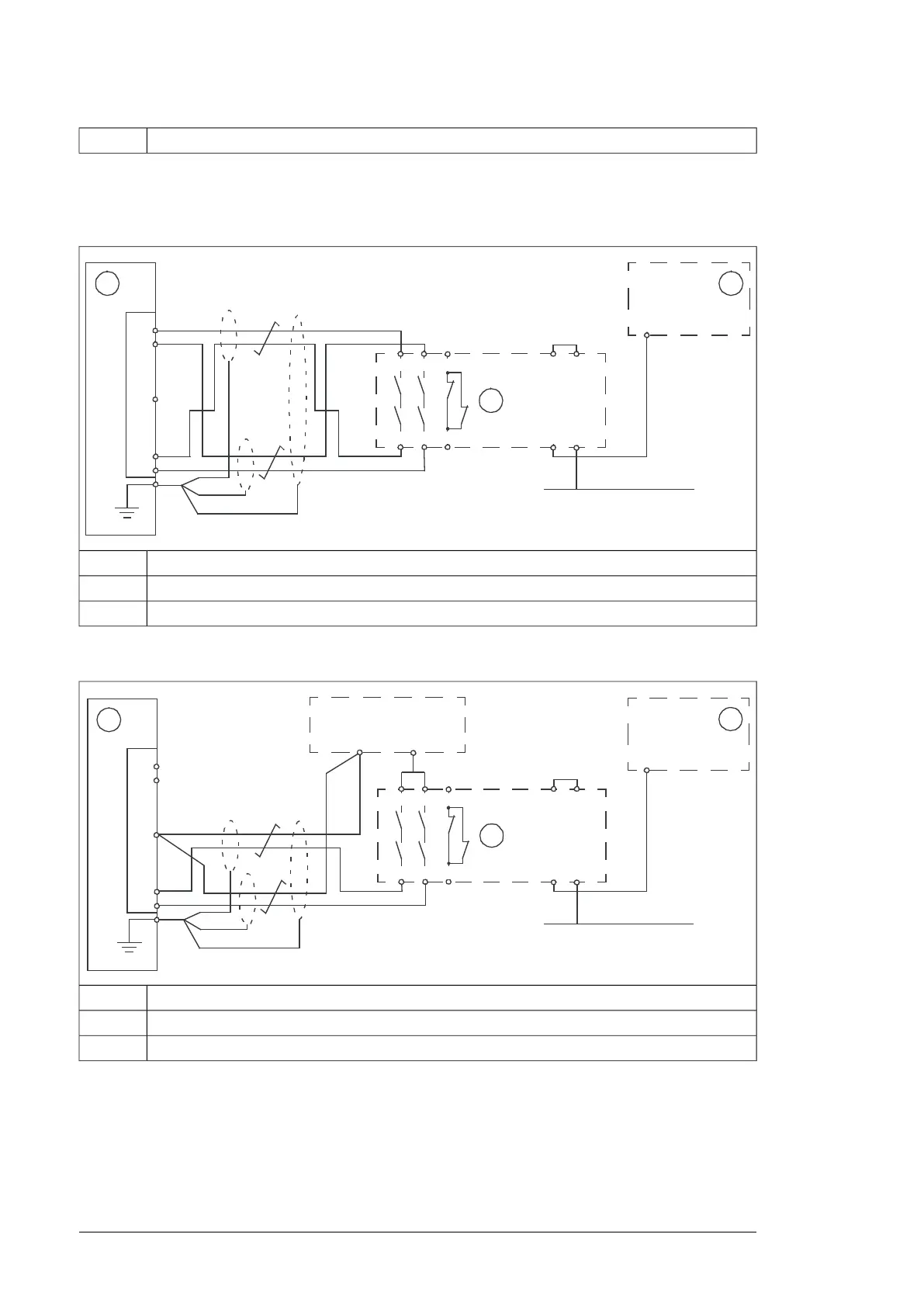

￭ Wiring examples (R3…R8)
Wiring with internal power supply
2414
2313 Y1
A2
Y2
A1
31
32
OUT
GND
K
1 2
OUT134
OUT235
SGND36
IN137
IN238
STO
Drive1
Safety PLC2
Safety relayK
Wiring with external power supply
2414
2313 Y1
A2
Y2
A1
31
32
OUT
GND
K
- +
2
24 V DC
1
OUT134
OUT235
SGND36
IN137
IN238
STO
Drive1
Safety PLC2
Safety relayK
￭ Activation switch
In the wiring diagrams, the activation switch has the designation [K]. This represents a
component such as a manually operated switch, an emergency stop push button switch, or
the contacts of a safety relay or safety PLC.
• In case a manually operated activation switch is used, the switch must be of a type that
can be locked out to the open position.
152 The Safe torque off function
