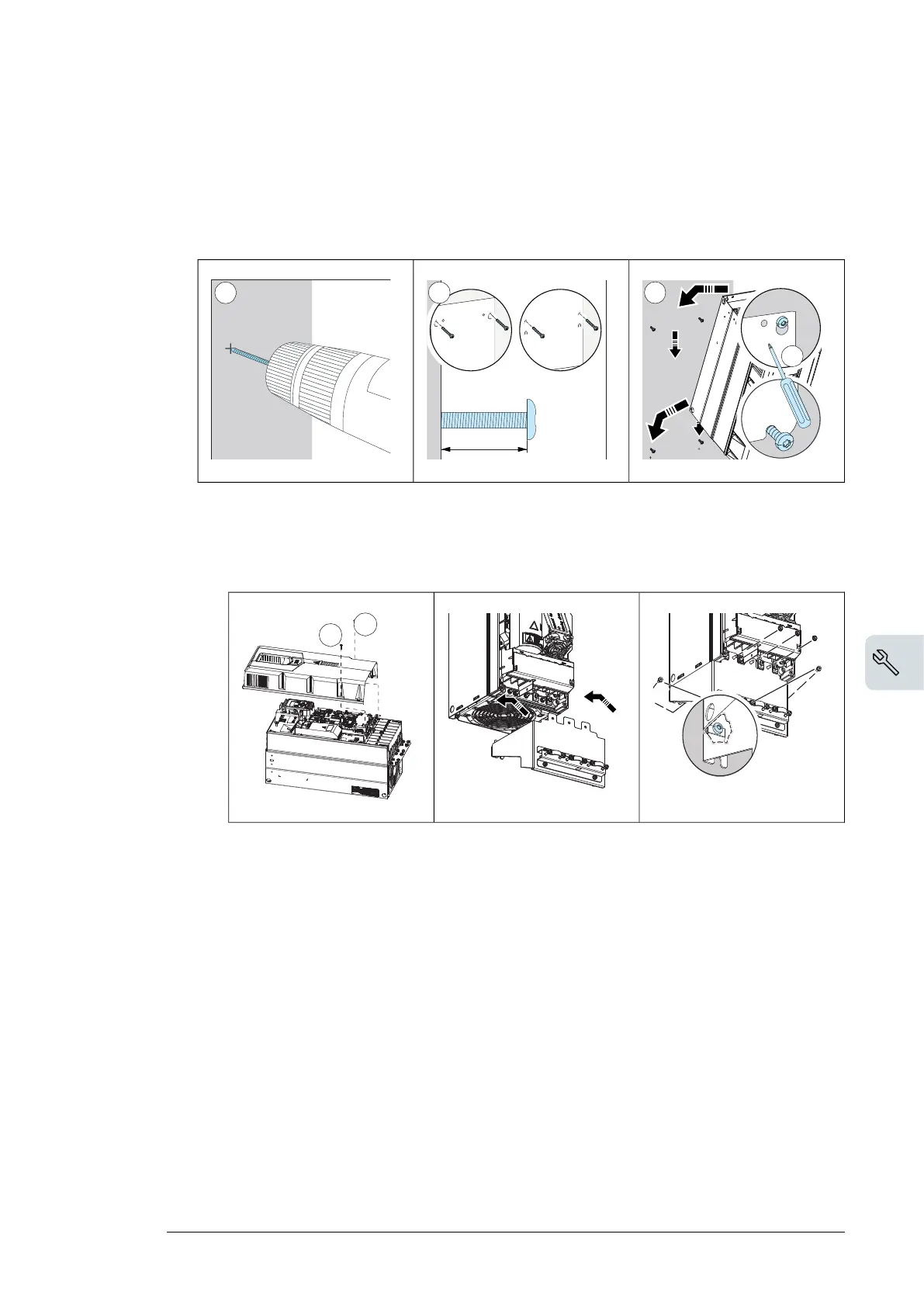

2. Drill the mounting holes.
3. Start the screws or bolts into the mounting holes.
4. Position the drive onto the screws on the wall. Lift the drive with another person as it is
heavy.
5. Tighten the screws in the wall securely.
50 Mechanical installation
Installing the drive vertically, frames size R5…R8
1. Mark the punch positions for the six mounting holes with the mounting template
included in the package. Do not leave the mounting template under the drive.
The drive dimensions and hole locations are also shown in the drawings, see
chapter Dimension drawings on page 149.
Note: You can use only two screws instead of four to attach the lower part of the
drive.
2. Drill the mounting holes.
3. Start the screws or bolts into the mounting holes.
4. Position the drive onto the screws on the wall. Lift the drive with another person
as it is heavy.
5. Tighten the screws in the wall securely.
R5 R6 R7 R8
mm in mm in mm in mm in
a 612 24.1 571 22.5 623 24.5 701 27.6
b 581 22.9 531 20.9 583 22.9 658 25.9
c 160 6.3 213 8.4 245 9.7 263 10.4
d 300 11.8 300 11.8 300 11.8 300 11.8
e 200 7.9 200 7.9 200 7.9 200 7.9
kg lb kg lb kg lb kg lb
28 62 45 99 55 121 70 154
50 Mechanical installation
Installing the drive vertically, frames size R5…R8
1. Mark the punch positions for the six mounting holes with the mounting template
included in the package. Do not leave the mounting template under the drive.
The drive dimensions and hole locations are also shown in the drawings, see
chapter Dimension drawings on page 149.
Note: You can use only two screws instead of four to attach the lower part of the
drive.
2. Drill the mounting holes.
3. Start the screws or bolts into the mounting holes.
4. Position the drive onto the screws on the wall. Lift the drive with another person
as it is heavy.
5. Tighten the screws in the wall securely.
R5 R6 R7 R8
mm in mm in mm in mm in
a 612 24.1 571 22.5 623 24.5 701 27.6
b 581 22.9 531 20.9 583 22.9 658 25.9
c 160 6.3 213 8.4 245 9.7 263 10.4
d 300 11.8 300 11.8 300 11.8 300 11.8
e 200 7.9 200 7.9 200 7.9 200 7.9
kg lb kg lb kg lb kg lb
28 62 45 99 55 121 70 154
50 Mechanical installation
Installing the drive vertically, frames size R5…R8
1. Mark the punch positions for the six mounting holes with the mounting template
included in the package. Do not leave the mounting template under the drive.
The drive dimensions and hole locations are also shown in the drawings, see
chapter Dimension drawings on page 149.
Note: You can use only two screws instead of four to attach the lower part of the
drive.
2. Drill the mounting holes.
3. Start the screws or bolts into the mounting holes.
4. Position the drive onto the screws on the wall. Lift the drive with another person
as it is heavy.
5. Tighten the screws in the wall securely.
R5 R6 R7 R8
mm in mm in mm in mm in
a 612 24.1 571 22.5 623 24.5 701 27.6
b 581 22.9 531 20.9 583 22.9 658 25.9
c 160 6.3 213 8.4 245 9.7 263 10.4
d 300 11.8 300 11.8 300 11.8 300 11.8
e 200 7.9 200 7.9 200 7.9 200 7.9
kg lb kg lb kg lb kg lb
28 62 45 99 55 121 70 154
6. Remove the front cover as follows:
• Remove the fastening screws (a).
• Move the cover to the top side and then up
Mechanical installation 51
6. Remove the front cover as follows:
• Remove the fastening screws (a).
• Move the cover to the top side and then up.
Installing the drive vertically side by side
Install the drive following the steps in the appropriate section Installing the drive
vertically, frames size R0…R2 (on page 47), Installing the drive vertically, frame size
R3...R4 (on page 49) or Installing the drive vertically, frames size R5…R8 (on page
50).
Flange mounting
Instructions for flange mounting are delivered with the flange mounting kit: Flange
mounting quick guide for frames R6 to R8 (3AXD50000019099 [English]). For more
information on flange mounting, see Flange mounting supplement
(3AXD50000019100 [English]).
6a
6a
Mechanical installation 51
6. Remove the front cover as follows:
• Remove the fastening screws (a).
• Move the cover to the top side and then up.
Installing the drive vertically side by side
Install the drive following the steps in the appropriate section Installing the drive
vertically, frames size R0…R2 (on page 47), Installing the drive vertically, frame size
R3...R4 (on page 49) or Installing the drive vertically, frames size R5…R8 (on page
50).
Flange mounting
Instructions for flange mounting are delivered with the flange mounting kit: Flange
mounting quick guide for frames R6 to R8 (3AXD50000019099 [English]). For more
information on flange mounting, see Flange mounting supplement
(3AXD50000019100 [English]).
6a
6a
Mechanical installation 51
6. Remove the front cover as follows:
• Remove the fastening screws (a).
• Move the cover to the top side and then up.
Installing the drive vertically side by side
Install the drive following the steps in the appropriate section Installing the drive
vertically, frames size R0…R2 (on page 47), Installing the drive vertically, frame size
R3...R4 (on page 49) or Installing the drive vertically, frames size R5…R8 (on page
50).
Flange mounting
Instructions for flange mounting are delivered with the flange mounting kit: Flange
mounting quick guide for frames R6 to R8 (3AXD50000019099 [English]). For more
information on flange mounting, see Flange mounting supplement
(3AXD50000019100 [English]).
6a
6a
￭ Installing the drive vertically side by side
Install the drive following the steps in the appropriate section Installing the drive vertically,
frames size R0…R2 (page 46), Installing the drive vertically, frame size R3...R4 (page 47)
or Installing the drive vertically, frames size R5…R8 (page 48).
￭ Installing the drive horizontally side by side
Install the drive following the steps in the appropriate section Installing the drive vertically,
frames size R0…R2 (page 46), Installing the drive vertically, frame size R3...R4 (page 47)
or Installing the drive vertically, frames size R5…R8 (page 48).
Mechanical installation 49
