ABB ACQ80-04 Series User Manual

5
4
1
2
3
7
8
6
109
11
Stopper5
Cover protecting film6
Straps7
Pallet8
Control panel selected in the order (in a separate
package) in the option box
9
Possible options in separate packages, if they
have been ordered with a plus code, such as for
example +K457 (FCAN-01 CANopen adapter
module) in the option box.
10
Basic panel (provided as default panel)11
Cable box package.1
Drive2
In the option box3
• Multilingual quick installation and start-up guide
• User's manual (if ordered with a plus code)
• Multilingual residual voltage warning stickers
Cardboard box. Mounting template in the card-
board box.
4
Unpacking and examining delivery, frames R6…R8

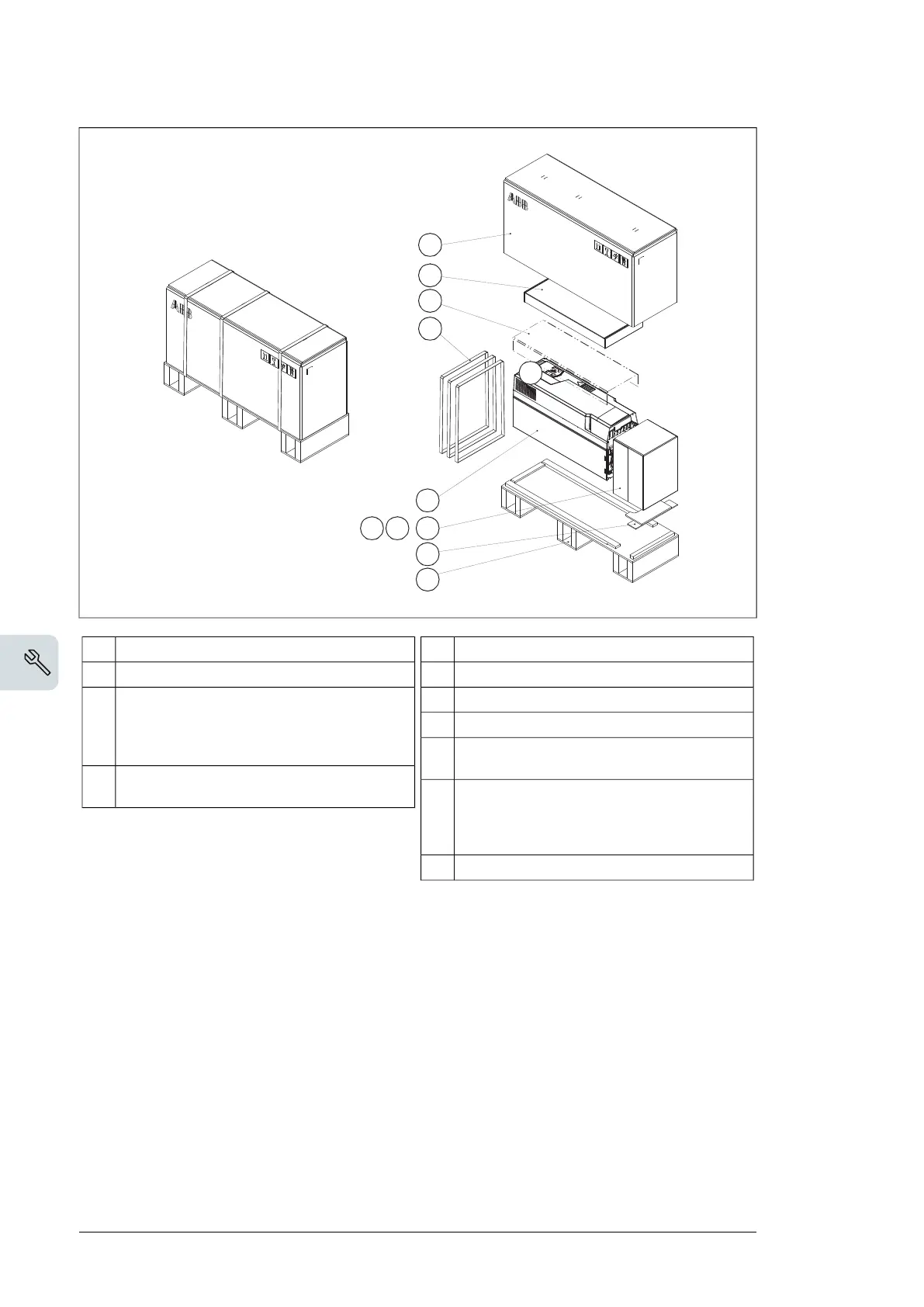

The figure below shows the layout of the transport package. Examine that all items are
present and there are no signs of damage. Read the data on the type designation label of
the drive to make sure that the drive is of the correct type. See section Type designation
label (page 34).
44 Mechanical installation
4
