1
A
2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F

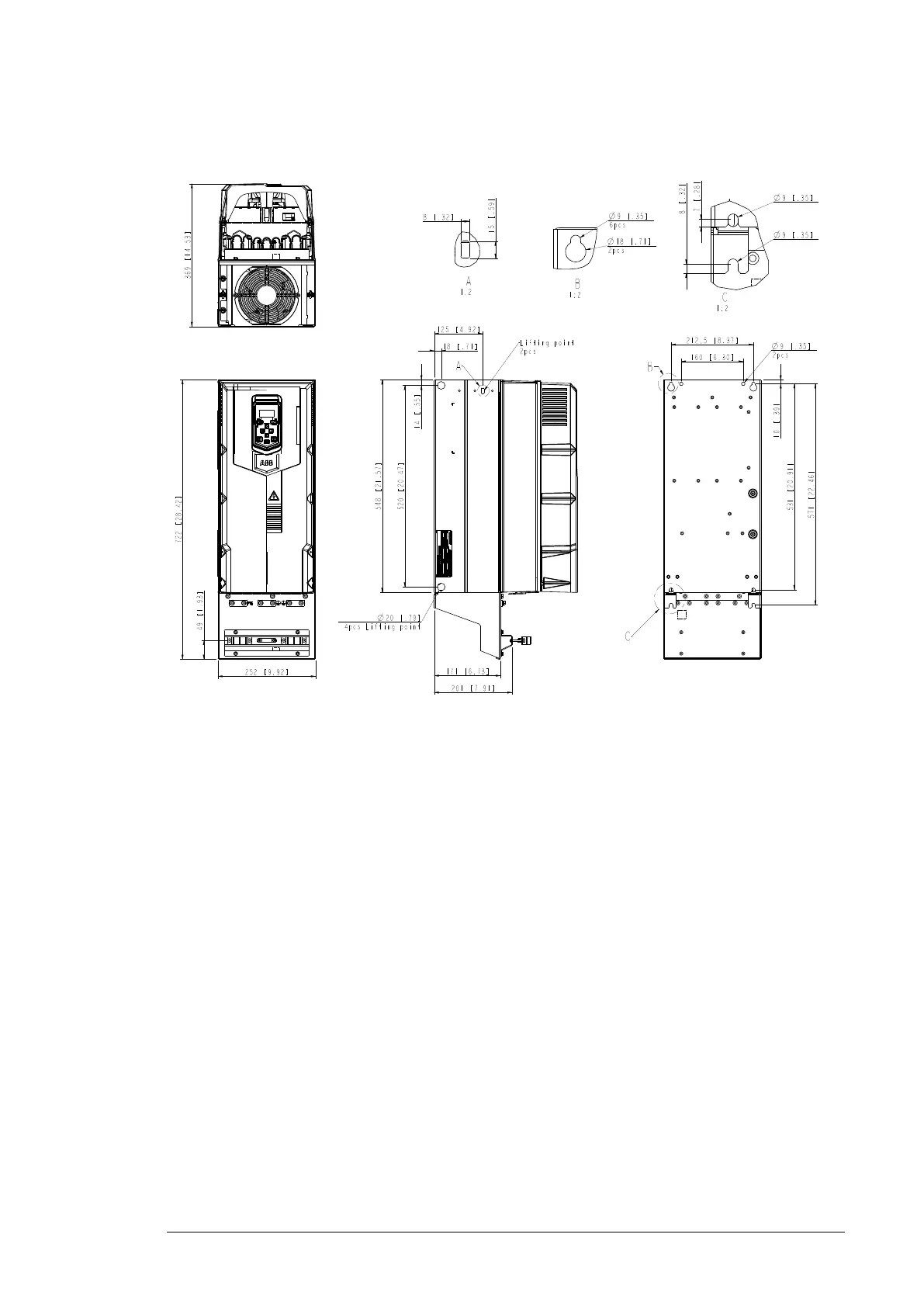

First angle projection. Original drawing made with 3D CAD. Set the correct scale factor when adding dimensions after DWG/DXF conversion.
531 20.91[ ]
212,5 8.37[ ]
160 6.30[ ]
369 14.53[ ]
520 20.47[ ]
548 21.57[ ]
14 .55[ ]
18 .71[ ]
125 4.92[ ]
4pcs Lifting point
20 .79[ ]
10 .39[ ]
15 .59[ ]
8 .32[ ]
6pcs
9 .35[ ]
2pcs
18 .71[ ]
2pcs
9 .35[ ]
722 28.42[ ]
49 1.93[ ]
252 9.92[ ]
171 6.73[ ]
201 7.91[ ]
571 22.46[ ]
9 .35[ ]
9 .35[ ]
7 .28[ ]
8 .32[ ]
3AXD50000037238 A.5+
We reserve all rights in this document and in the information contained therein. Reproduction,
use or disclosure to third parties without express authority is strictly forbidden.
© ABB Oy. PROPRIETARY AND SECRET INFORMATION. CONFIDENTIAL
3AXD50000037238 (ASSEM) A.6+
Based on Prepared
Hui Xu 09-Mar-16
Title
ASSEMBLY DRAWING
Doc. des. Scale Form
Customer Check.
Peng Du 09-Mar-16 DIMENSION DRAWING
ASSEMBLY DRAWING 17:100 A3
Appr.
J.Holappa 09-Mar-16 ACS530 R6
Resp.dept. Rev.ind.
A (AP)
Lang.
EN
Cust. Doc. No. Project name Doc. No.
3AXD50000037238
Sheet
1
DMS Number
3AXD10000490083
Weight kg
154656815.96
Total
1
A
Initial Approval 09-Mar-16 Hui Xu 500000761544
Frame R6, IP20
Lifting point
2pcs
A
B
C
A
1:2
B
1:2
C
1:2
