106 Electrical installation
Connecting a PC
To be able to connect a PC to the drive, you need a control panel

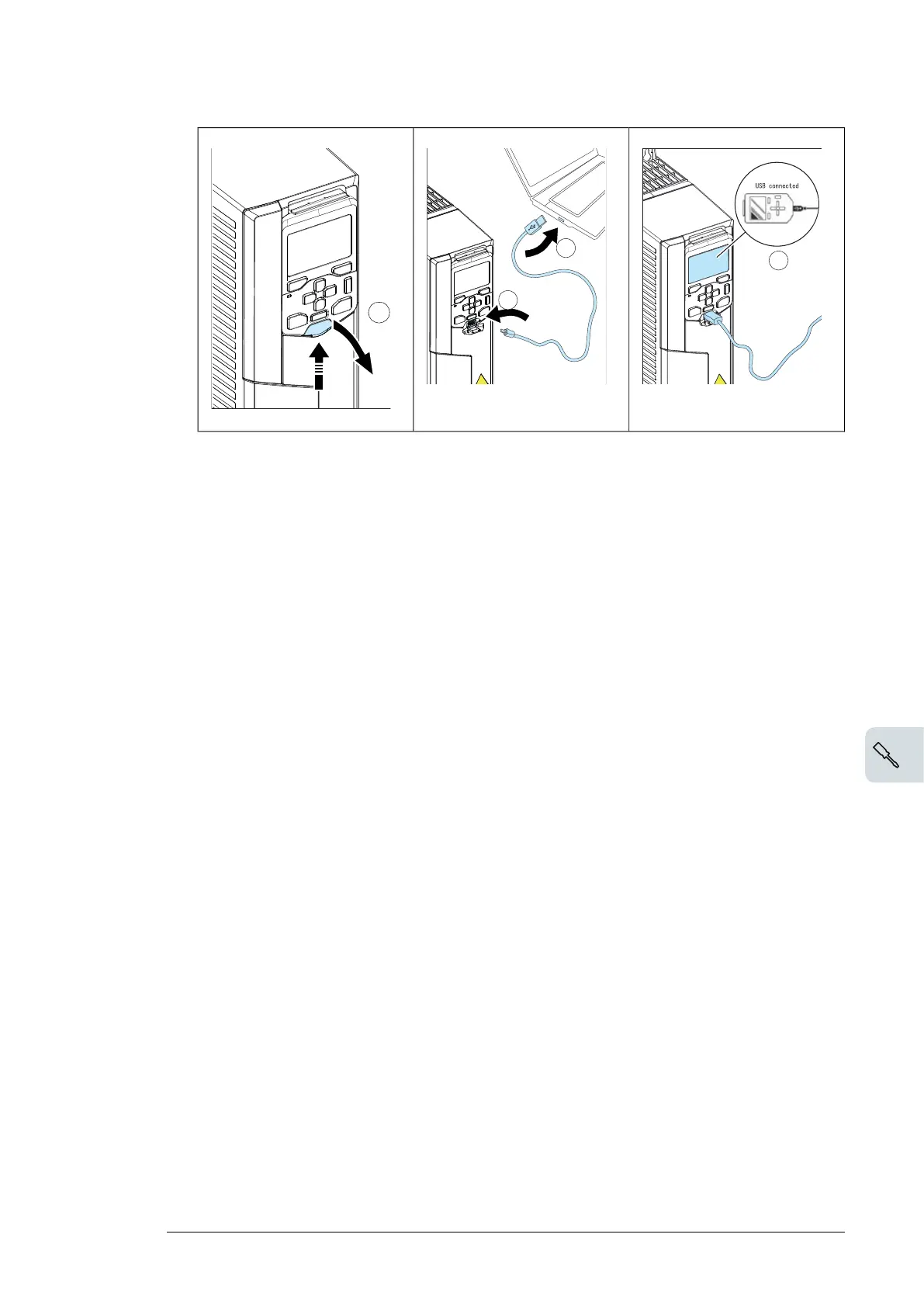

Connect a PC to the drive with a USB data cable (USB Type A <-> USB Type Mini-B)
as follows:
1. Lift the USB connector cover from bottom upwards.
2. Put the USB cable Mini-B plug in the control panel USB connector.
3. Put the USB cable A-plug in the USB connector of the PC (3a). The panel
displays text “USB connected” (3b).
Note: Panel keys cannot be used when a USB data cable is connected to the panel.
For information on using the Drive composer PC tool, see Drive composer PC tool
user's manual (3AUA0000094606 [English]).
1
3b
2
3a
106 Electrical installation
Connecting a PC
To be able to connect a PC to the drive, you need a control panel
Connect a PC to the drive with a USB data cable (USB Type A <-> USB Type Mini-B)
as follows:
1. Lift the USB connector cover from bottom upwards.
2. Put the USB cable Mini-B plug in the control panel USB connector.
3. Put the USB cable A-plug in the USB connector of the PC (3a). The panel
displays text “USB connected” (3b).
Note: Panel keys cannot be used when a USB data cable is connected to the panel.
For information on using the Drive composer PC tool, see Drive composer PC tool
user's manual (3AUA0000094606 [English]).
1
3b
2
3a
106 Electrical installation
Connecting a PC
To be able to connect a PC to the drive, you need a control panel
Connect a PC to the drive with a USB data cable (USB Type A <-> USB Type Mini-B)
as follows:
1. Lift the USB connector cover from bottom upwards.
2. Put the USB cable Mini-B plug in the control panel USB connector.
3. Put the USB cable A-plug in the USB connector of the PC (3a). The panel
displays text “USB connected” (3b).
Note: Panel keys cannot be used when a USB data cable is connected to the panel.
For information on using the Drive composer PC tool, see Drive composer PC tool
user's manual (3AUA0000094606 [English]).
1
3b
2
3a
• Use a USB to RJ45 converter BCBL-01 (3AXD50000032449) with RDUM-01
(3AXD50000040850). You can order it from ABB.
Note:
Panel keys cannot be used when a USB data cable is connected to the panel.
For information on the Drive composer PC tool, refer to Drive composer PC tool user's
manual (3AUA0000094606 [English]).
Electrical installation 97
