Mount the unit within several metres of the GNSS antennas where possible.
l
Mount close to the centre of gravity of the vehicle where possible.
l
Mount the unit at least 10 cm away (and preferably as far as possible) from sources of dynamic magnetic
interference such as high current wiring or large motors for best performance.
l
Do not obstruct the two vents on the side of the enclosure unless 8.7 Atmospheric Altitude will be dis-
abled.
Boreas is mounted using the four 4.4 mm diameter mounting holes on the base of the enclosure (see Figure
10: Bottom View of Boreas Mounting Plate below for mounting plate and hole guide).

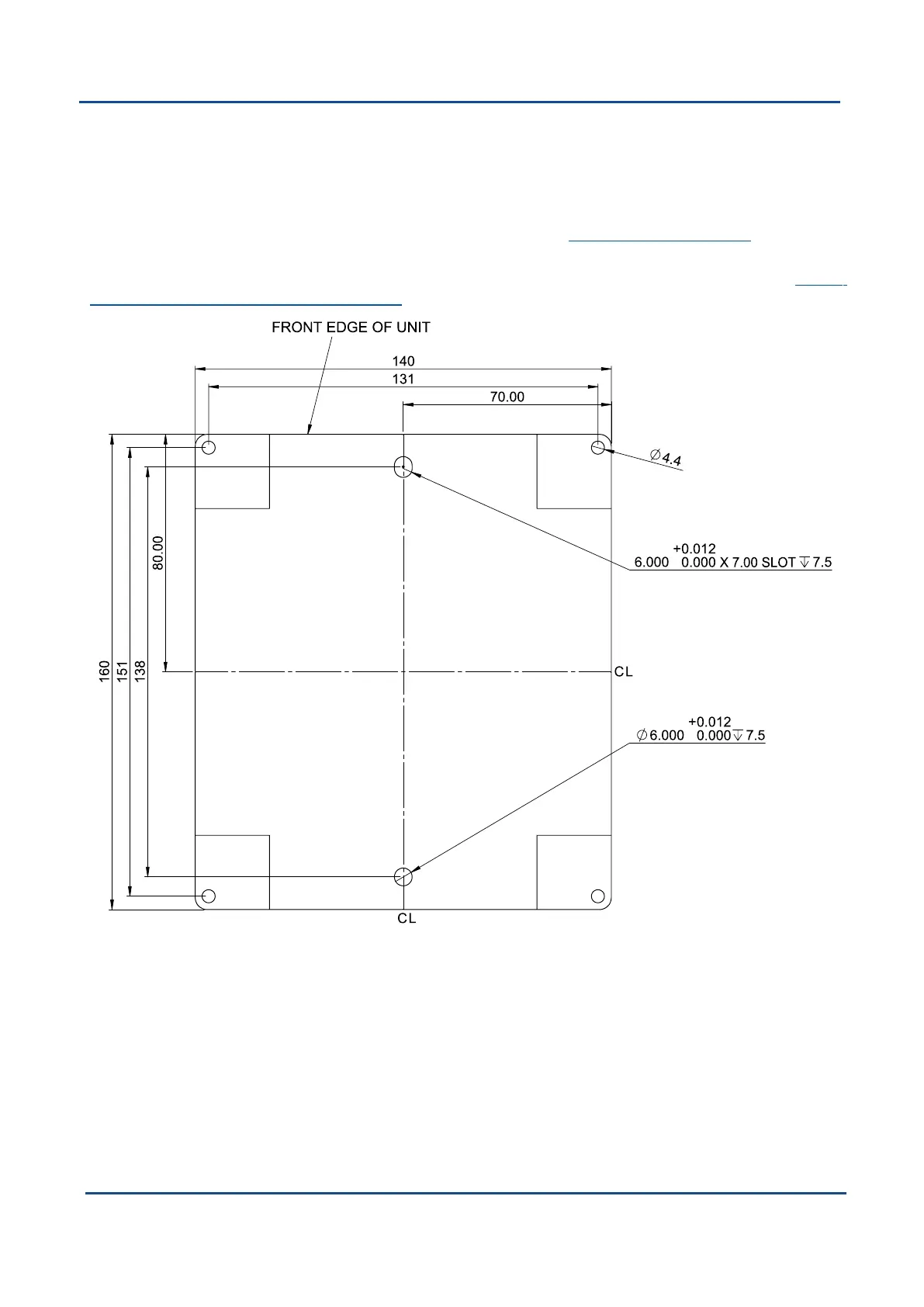

Figure 10: Bottom View of Boreas Mounting Plate
For precision mounting, an alignment hole 6 mm and an alignment slot 6 mm x 7 mm are provided at the middle
edge of the enclosure. They are designed for 6 mm dowel pins. Suitable alignment dowel pins based on DIN
6321 are Norelem Locating Pin 02020-206 or equivalent.
