R3132 Series Spectrum Analyzer Operation Manual
3.3.18 POWER MEASURE Key (Power Measurement)
3-59
√Nyquist Filter ON/OFF
Toggles the √Nyquist filter function on or off.
ON: Turns the Nyquist filter function on.
OFF: Turns the Nyquist filter function off.
Insert Line Inserts a line in the cursor position.
Delete Line Deletes the line at the cursor position.
Sort Sort the CS/BS Setting table by CS.
Table Init Deletes all data in the table.
BS Window ON/OFF
Toggles the ACP bandpass window display on or off.
ON: Displays the window within the bandpass which is tar-
geted for calculating the ACP.
OFF: Removes the window.

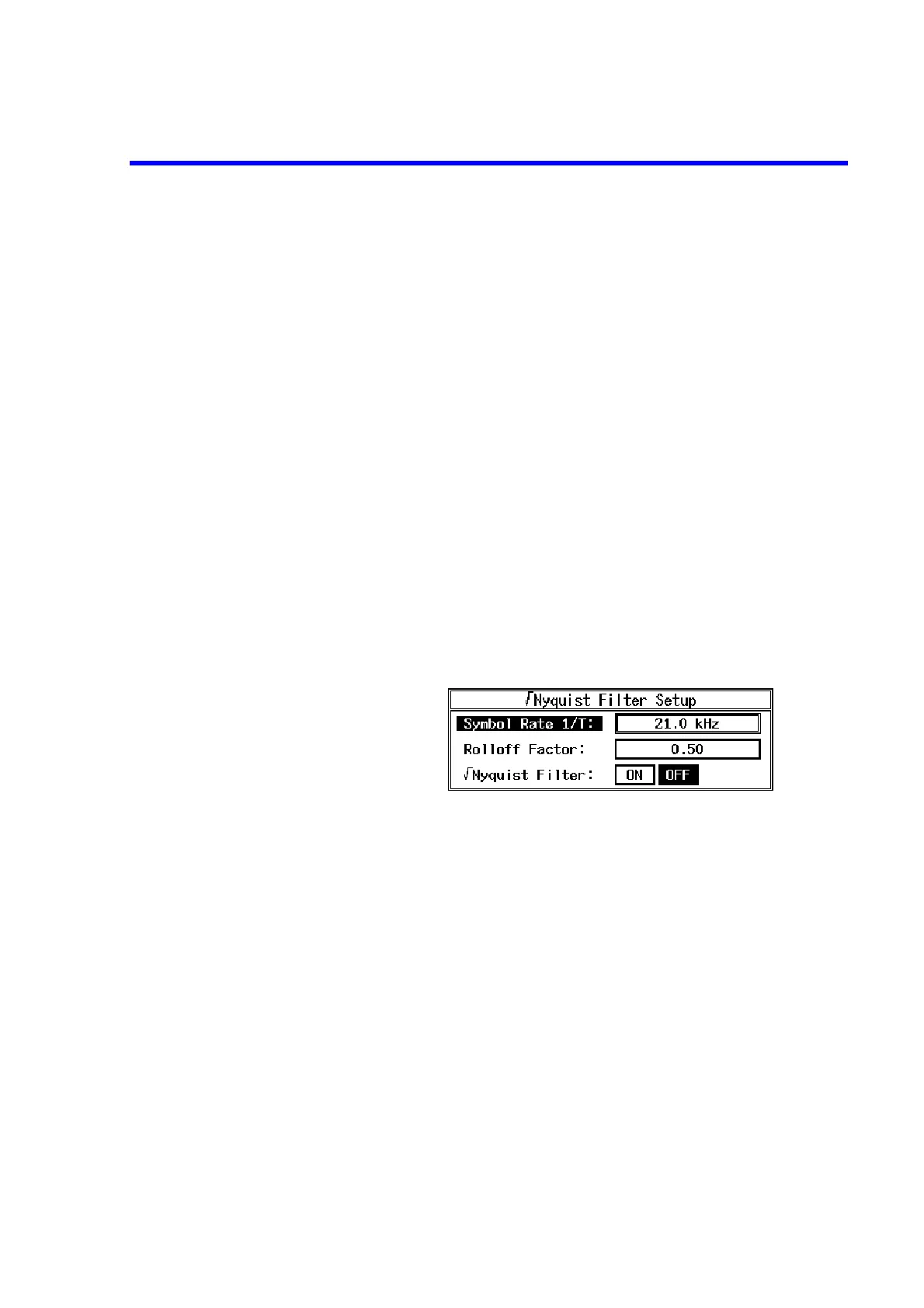

√Nyquist Filter Setup Displays the √Nyquist Filter Setup dialog box.
Symbol Rate 1/T Sets the symbol rate.
Rolloff Factor Sets the rolloff factor.
√Nyquist Filter Toggles the Nyquist filter function on or off.
ON: Turns the Nyquist filter function on.
OFF: Turns the Nyquist filter function off.
Screen FULL/SEPA/CARRIER
Toggles the screen display between the full and separate screen
modes.
FULL: The entire screen is used.
Calculates the ACP based on the total power along the
entire band on the screen.
