Using Plate Material
When you specify plate material as the imaging media, the SelectSet
Avantra exposes areas outside the boundaries of the page defined by
your front end application.

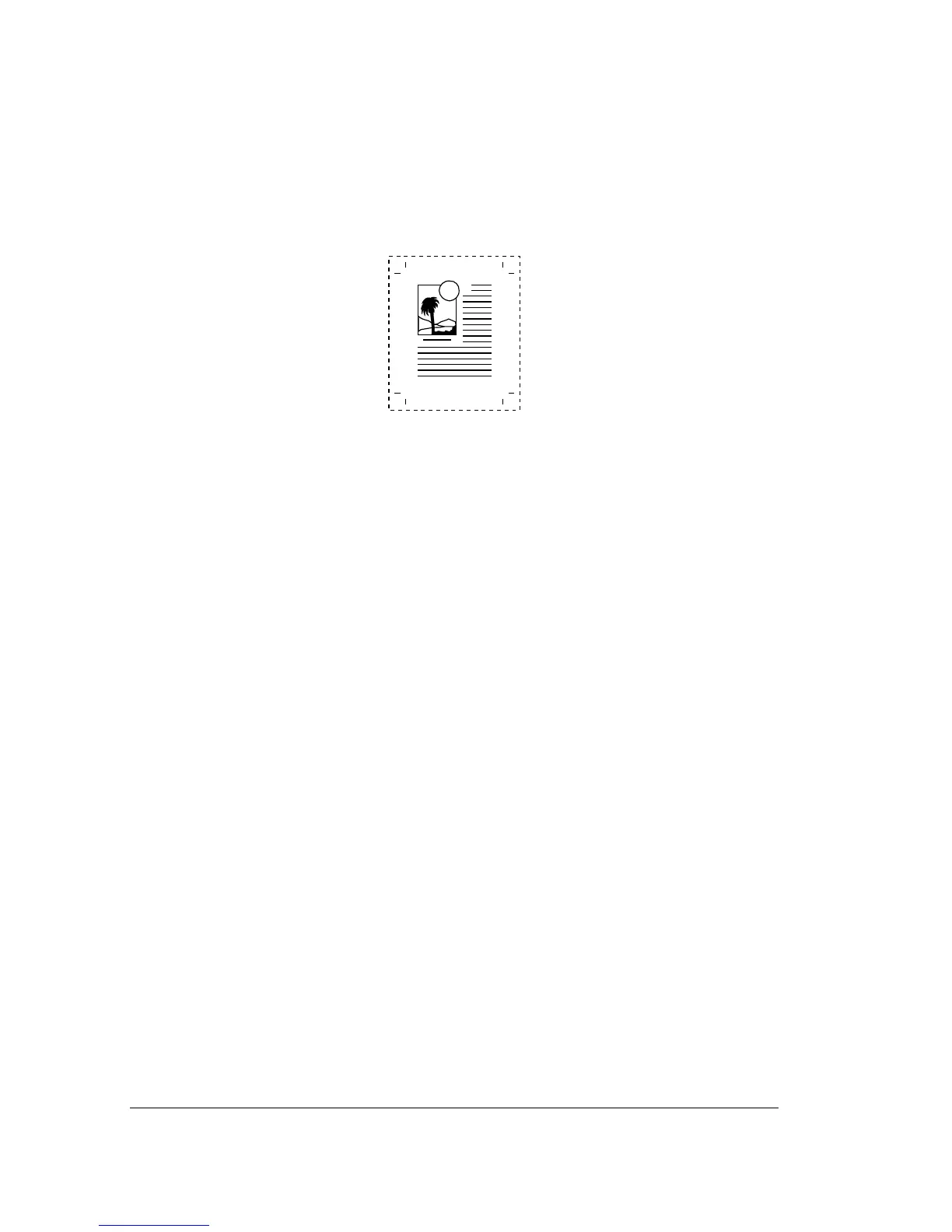

Figure C.1. This represents a page defined by your front end application. The
dashed line represents the outside border of the page.
Figure C.2 on the next page shows different examples of how this fea-
ture works.
The depth of the top bar is calculated like this:
DEPTH = INTERPAGE SPACE + PUNCH REGION
PUNCH REGION
= 0.8" (2 CM) IF ENABLED
PUNCH REGION
= 0 IF DISABLED
For example:
INTERPAGE SPACE = 1" (2.5 CM)
PUNCH ENABLED = 0.8" (2 CM)
TOP BAR DEPTH = 1.8" (4.6 CM)
The top bar is imaged any time the top punch is enabled or the inter-
page space is greater than 0.
If you disable the punch and set the interpage space to 0, the top bar
is not imaged. See E and F in Figure C.2.
