Loading Media into Supply Cassettes

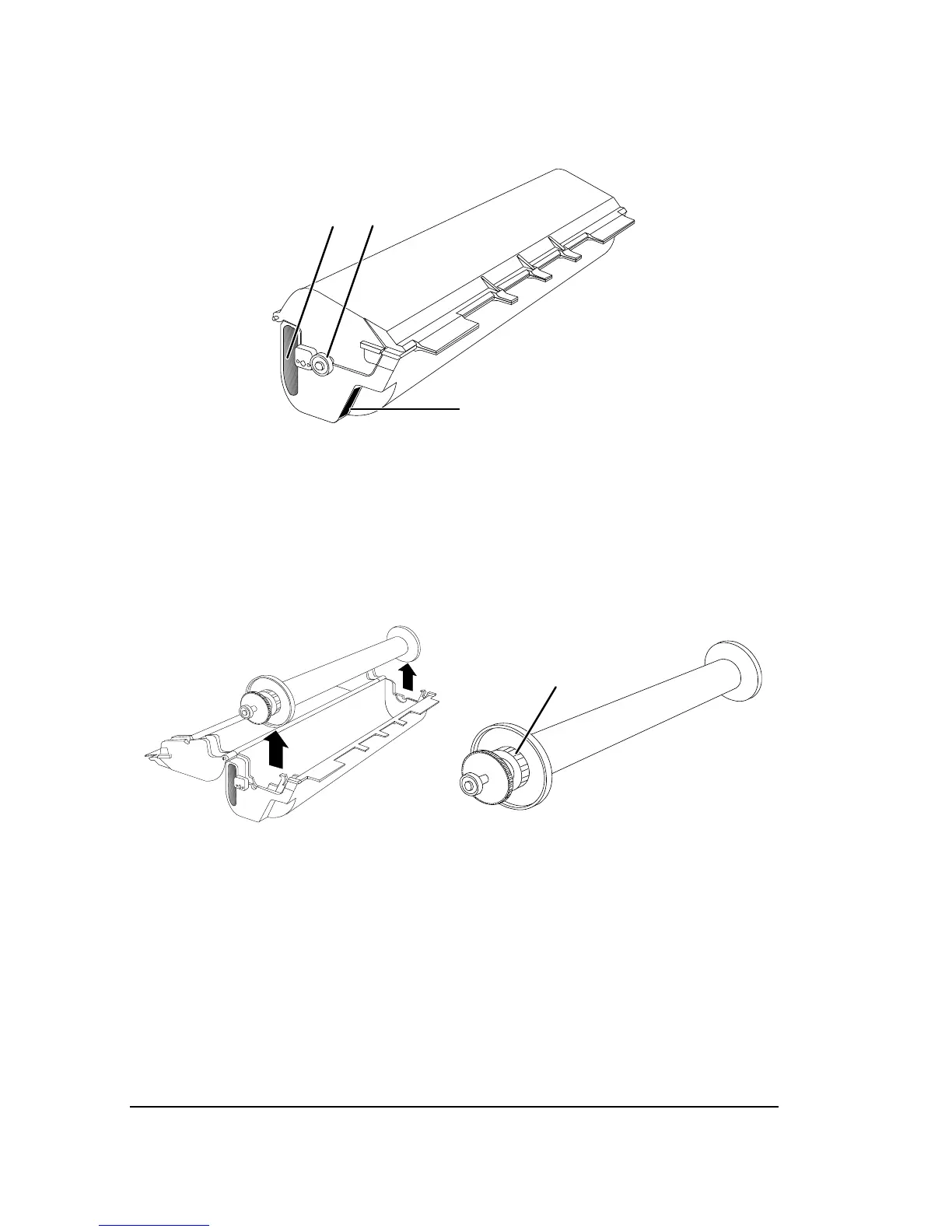

Figure 4.1. The supply cassette. ➀ — Handle. ➁ — Bearing. ➂ —Gear opening.
Step 1. Remove the media roll from the cassette.
Place the supply cassette on a level surface.
Open the cassette and remove the empty media roll.
Figure 4.2. Remove the empty media roll. Loosen the outer locking knob ➀ .
Remove the endcaps from both ends of the roll. Loosen the
outer locking knob, then tap the bearing with the palm of
your hand.
➀
➁
➂
➀
