CPE Connectivity Check
Static routes are used within many IES and VPRN services. Unlike dynamic routing
protocols, there is no way to change the state of routes based on availability information for
the associated CPE. CPE connectivity check adds flexibility so that unavailable destinations
are removed from the service provider’s routing tables dynamically, and wasted bandwidth
is minimized.
Figure 43 and Figure 44 illustrate the use of CPE connectivity check in directly connected
and multiple-hop connected routes.

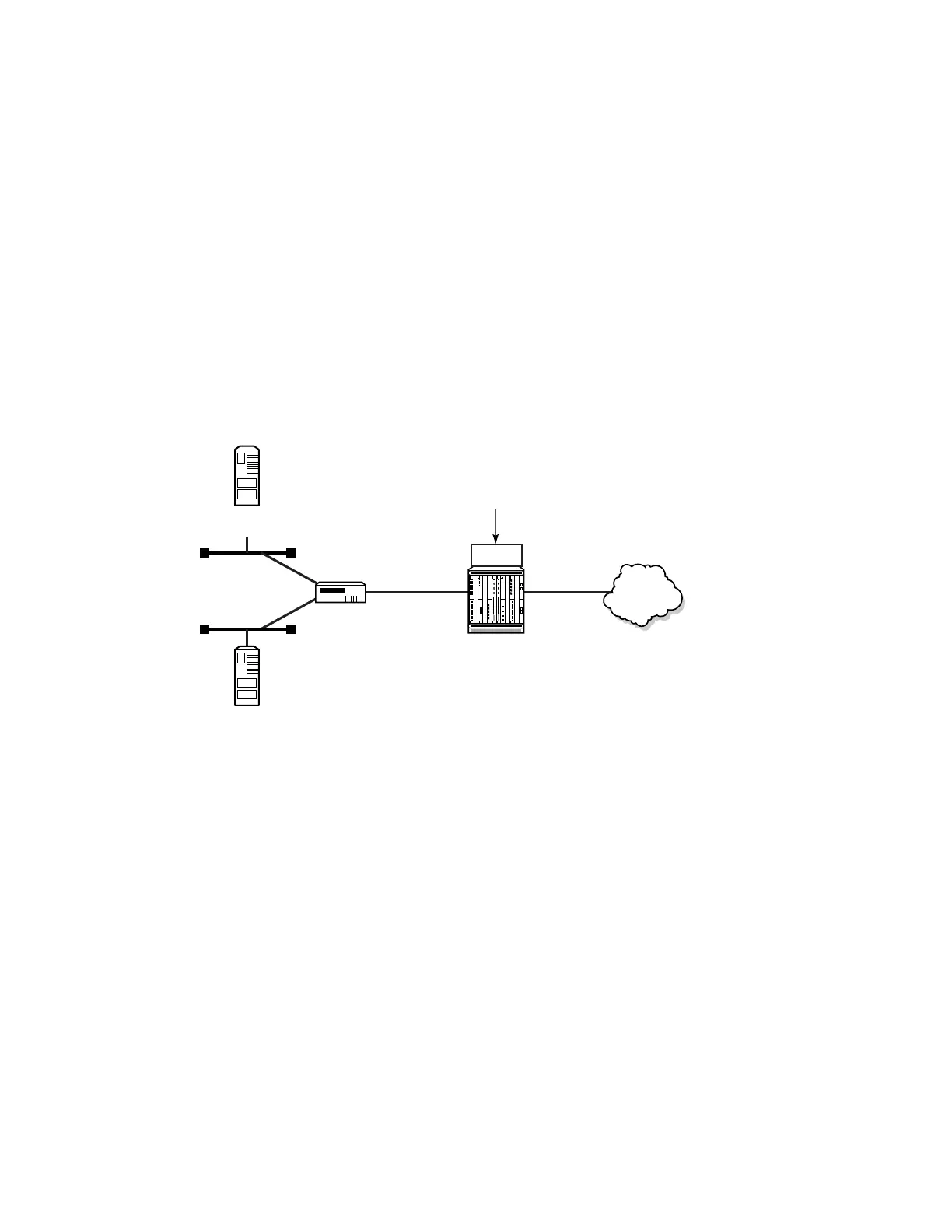

Figure 43: Directly Connected IP Target
20951
Server B.1
11.1.B.0
.2 .1
10.1.1.0/31
Static-route 11.1.A.0/24 nexthop 10.1.1.2 cpe-check 10.1.1.2 interval 1 drop-count 2
Static-route 11.1.B.0/24 nexthop 10.1.1.2 cpe-check 10.1.1.2 interval 1 drop-count 2
Server A.1
11.1.A.0
CPE
7705-1
Node A
VPRN A
Backbone
