ALIEN MEGA/MAX USER MANUAL
117

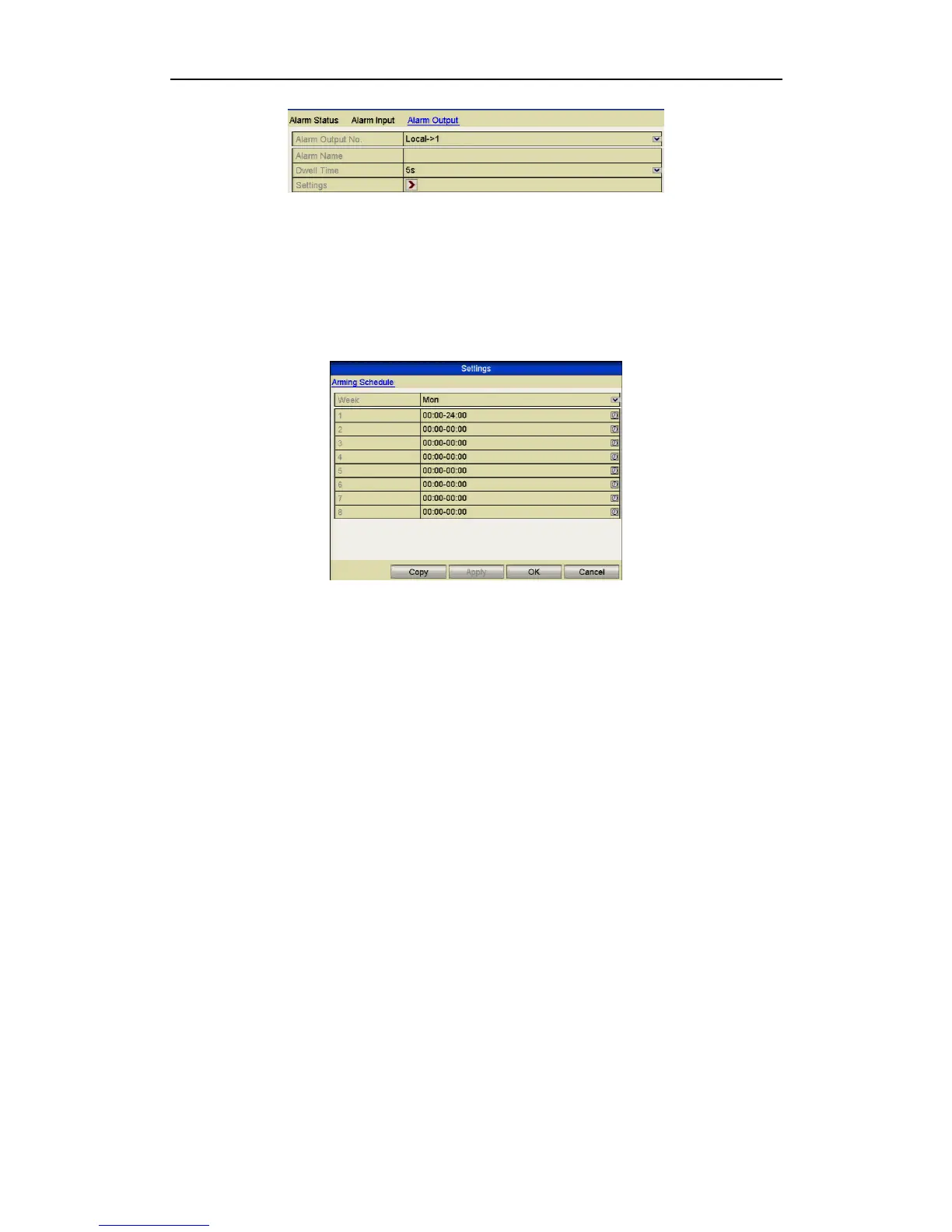

Figure 8.8.1 Alarm Output Settings Interface
2. Set up arming schedule for the alarm output.
Choose a day of the week and up to 8 time periods within each day.
Time periods must not be duplicated or overlap.
Figure 8.8.2 Set Arming Schedule for Alarm Output
3. Repeat the above steps to set arming schedule for other days of the week. You
can also use the Copy button to copy an arming schedule to other days.
Click the OK button to complete the arming schedule setting.
4. Click the Apply button to save the settings.
8.9 Triggering or Clearing Alarm Output Manually
Purpose:
Sensor alarms can be triggered or cleared manually. If “Manually Clear” is selected in
the dropdown dwell time list of an alarm output, the alarm can be cleared only by
clicking Clear button in the following interface.
Steps:
Select the alarm output you want to trigger or clear and make related operations.
Menu> Instant> Alarm
Click Trigger/Clear button if you want to trigger or clear an alarm output.
Click Trigger All button if you want to trigger all alarm outputs.
Click Clear All button if you want to clear all alarm outputs.
