ALIEN MEGA/MAX USER MANUAL
97
2) Tick the checkbox of cameras and set the search time.
3) Click Search button to enter the Search Result interface.

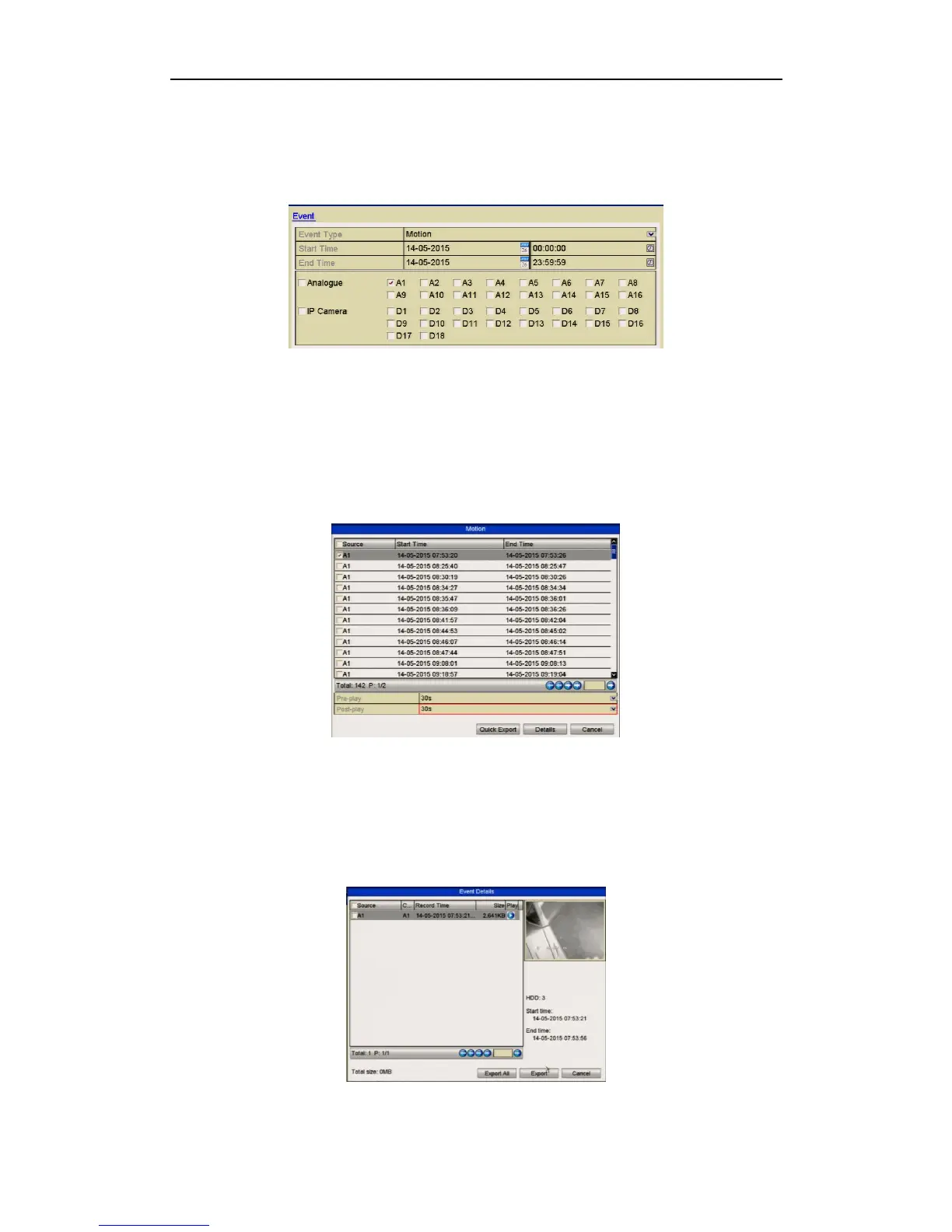

Figure 7.1.2.1 Event Search for Backup
3. Select recorded files for export
1) Select an alarm input in the list and click Quick Export button to enter Export
interface.
2) Clicking Details button will take you to the interface with detailed information
of all channels triggered by the event.
Figure 7.1.2.2. Result of Event Search
3) Click Details button to view detailed information of the record file, e.g. start
time, end time, file size, etc.
The size of the currently selected files is displayed in the lower-right corner of the
window.
Figure 7.1.2.3 Event Details Interface
