ML-5120A
3. Operating Procedure

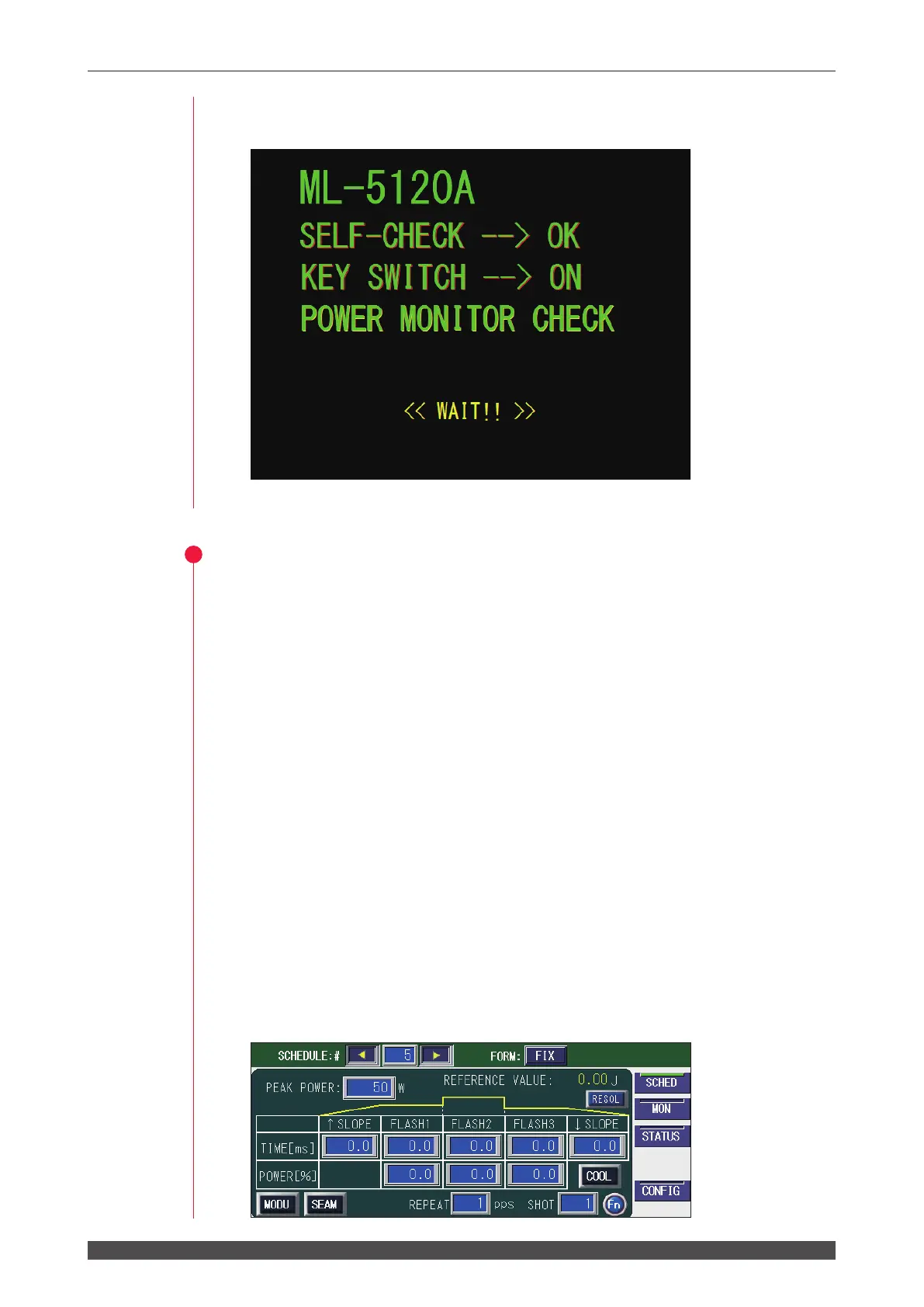

(2) Turn ON the CONTROL keyswitch.
The power monitor is automatically checked.
The SCHEDULE screen appears.
2
Setting Output Schedules
As an example, the procedure for setting SCHEDULE No.5, laser output peak value
50 W, FLASH1 laser output time 30 ms/output value 50%, and up-slope 10 ms is ex-
plained below.
(1) Press the "SCHED" button to display the SCHEDULE screen.
(2) Press the "SCHEDULE" setting button.
Enter the SCHEDULE number by using by using the "<" and ">" buttons or nu-
meric numeric keypad and then press the ENT key
In this example, set #5.
⇒
As the SCHEDULE number, it is possible to set 255 schedules of #000 to #254.
In "FORM", the fixed waveform "FIX", flexible waveform of pulse oscillation
"FLEX", or exible waveform of CW (continuous) oscillation "CW" can be speci-
ed.
⇒
When the registered SCHEDULE number is entered, the set output schedules
are displayed.
(3) Press the "PEAK POWER" setting button.
Enter the laser output peak value by using the numeric keypad and then press
the ENT key.
In this example, set 50 W.
To Next Page
