3. Changing the Equipment Settings

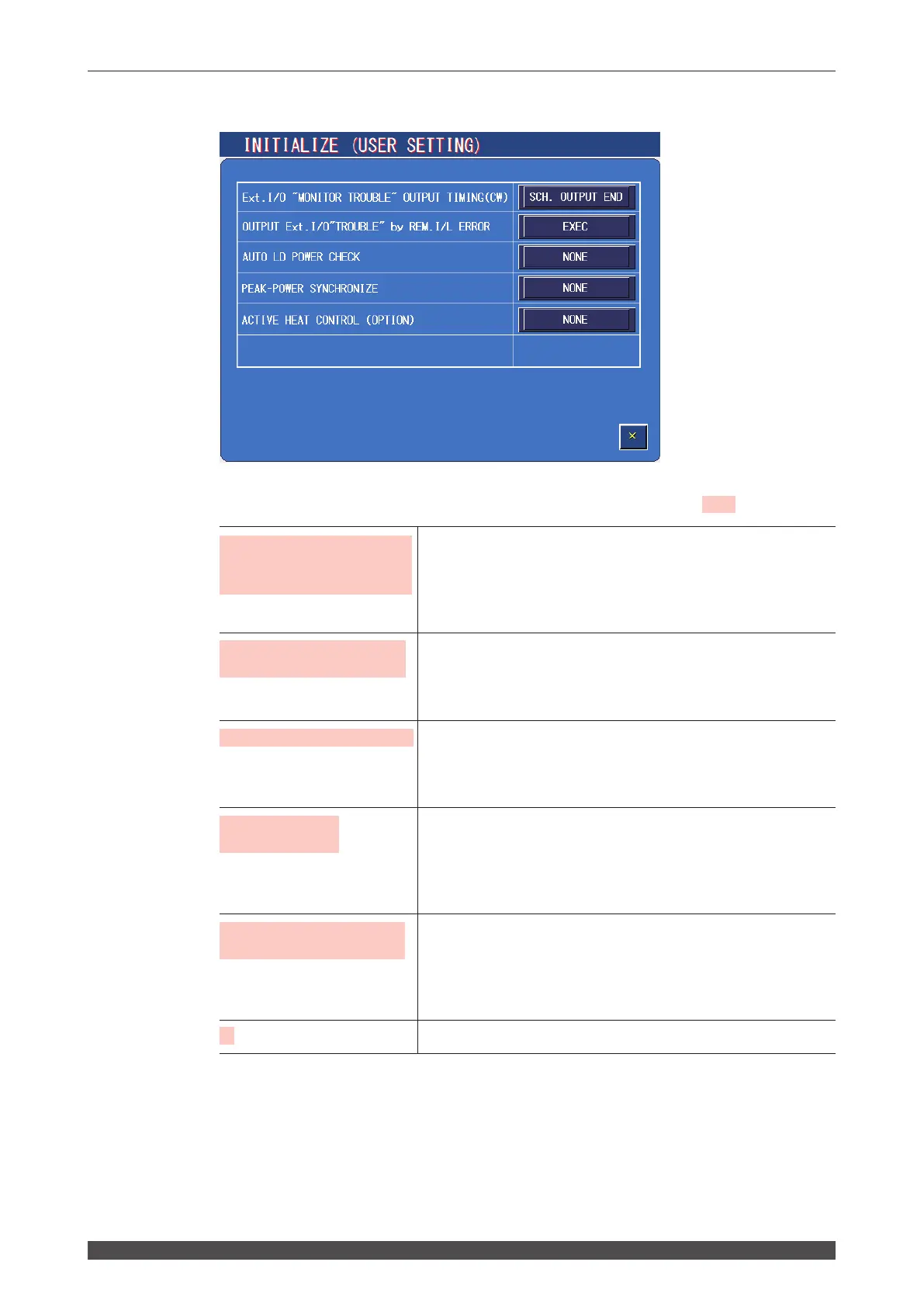

USER SETTING
How to see the displayed items
: Settable item
Ext.I/O "MONITOR TROU-
BLE" OUTPUT TIMING
(CW)
Sets the output timing of the monitor upper/lower limit check error
in the CW waveform.
SCH. OUTPUT END: Output when output ends (default)
MON. TRB. DETECT: Output when the error occurs (The normal
output signal is turned ON during output until the error occurs.)
OUTPUT Ext.I/O "TROU-
BLE" by REM.I/L ERROR
Sets whether to output the error by the external input/output when
error No.022/EXTERNAL INTERLOCK OPENED occurs.
EXEC: Output (default)
NONE: Not output
AUTO LD POWER CHECK
Sets whether to execute the LD deterioration check automatically
while the rst LD ON after power-on.
NONE: Not execute (default)
EXEC: Execute
PEAK-POWER
SYNCHRONIZE
Sets whether to use the peak power synchronize setting. Func-
tions and displays related to the peak power synchronize setting
are valid only when this is set to USE.
NONE: Not use (default)
USE: Use
ACTIVE HEAT CONTROL
(OPTION)
Sets whether to use the optional heat detector setting. Functions
and displays related to the heat detector setting are valid only
when this is set to USE.
NONE: Not use (default)
USE: Use
X
Returns to the INITIALIZE screen.
