One or more Intellex units can be connected over a TCP/IP local
area network (LAN) or a wide area network (WAN). Its data can
then be managed from a central site using the Network Client (sold
separately). A sample network configuration is shown below.

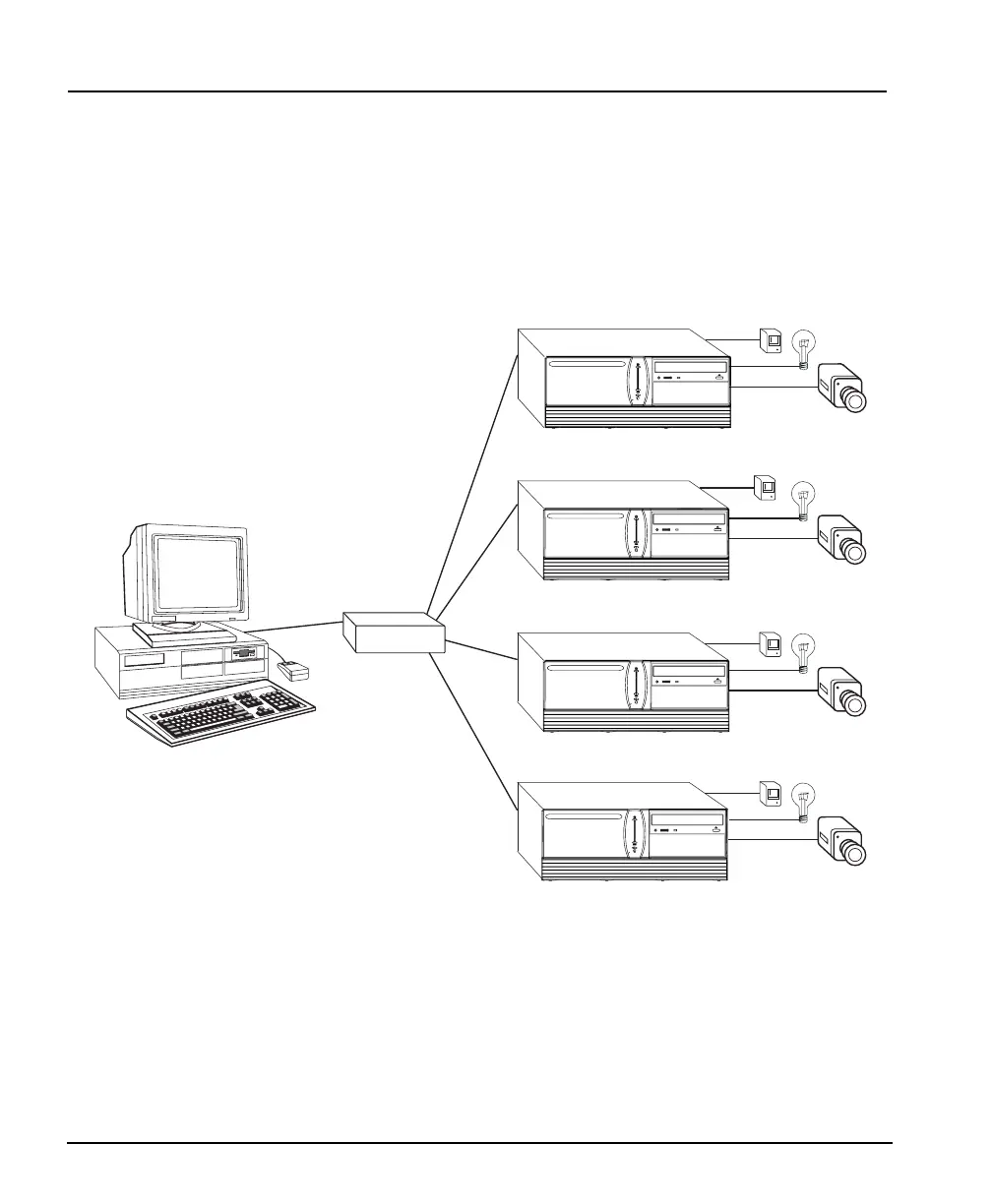

Figure 2 — Sample Network Configuration
Each Intellex unit can be installed with:
Up to 16 cameras
Up to 16 mechanical alarms or sensors
Up to 16 alarm output devices
Network
Hub
Network Client
installed on your computer
