User Manual – Rev BE AMETEK Programmable Power
MX Series 129
4.2.6.3 FREQUENCY SWEEP/STEP sub menu

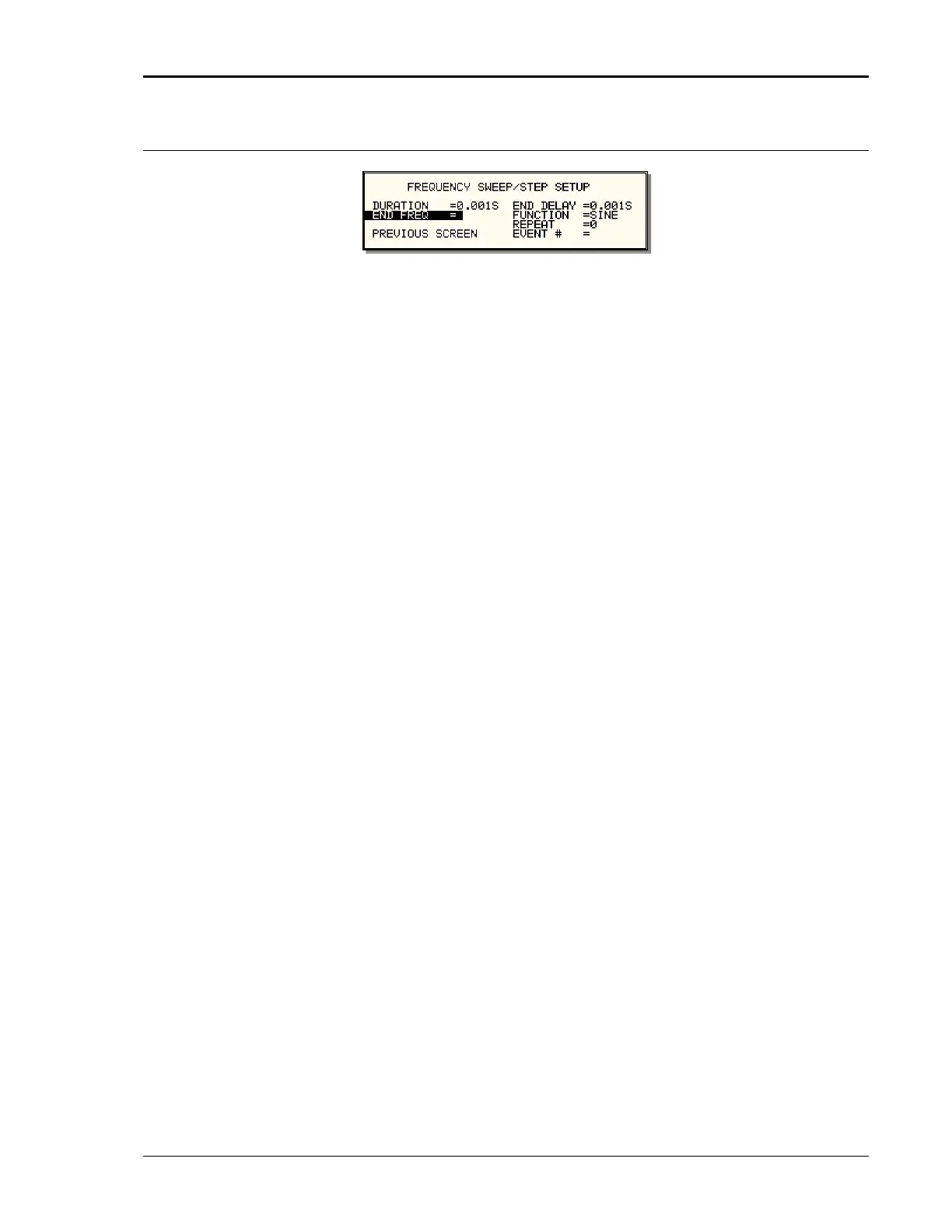

Figure 4-15: FREQUENCY SWEEP/STEP SETUP Screen
The Voltage sweep and step screen shown in Figure 4-15 can be reached from
the transient screen as follows:
1) Scroll to the FREQ SWEEP/STEP entry using the up and down
cursor keys.
2) Press the ENTER key to bring up the FREQ SWEEP/STEP
screen.
The FREQ SWEEP/STEP screen has several data fields. All data fields that are
blank to the right of the equal sign must be filled or an error message will occur
when trying to leave this screen. The EVENT # is the last data field to be filled.
Entering the event data field will cause the display to return to the TRANSIENT
screen where a new selection can be made.
The FREQ SWEEP/STEP screen has the following fields:
DURATION Duration is amount of the time the output frequency
will take to reach the END FREQ level. Duration will
define the slew rate of the output frequency for the
event. A duration of 0 seconds will cause the output
frequency to reach the end frequency immediately.
END FREQ This is the output frequency at the end of the transient
event in Hz.
END DELAY This is the time delay the frequency will stay at END
FREQ before it proceeds with the next transient event
or completes the transient.
FUNCTION [3Pi Controller only] This field can be used to select the
wave shape to be used during this step of the transient
sequence. Each step can use a different wave shape
from the available library of 50 user-defined waveforms
or the three standard waveforms. The output wave
shape changes upon entry into each step and remains
in effect for the duration of the step. The default wave
shape is always the SINE (sine wave).
