Ametek MX Series User Manual

User Manual – Rev BE AMETEK Programmable Power
MX Series 294
9.5.4.4 INTERHARMONICS
A single inter harmonic frequency may be generated using the
INTERHARMONICS screen. This screen allows insertion of any inter harmonic
from 1Hz to 2400Hz in 1Hz steps. The amplitude level of the harmonics range
is from 0 to 20% of the programmed voltage. To select the interharmonics
screen, press the menu screen until the MENU 2 screen appears as shown in

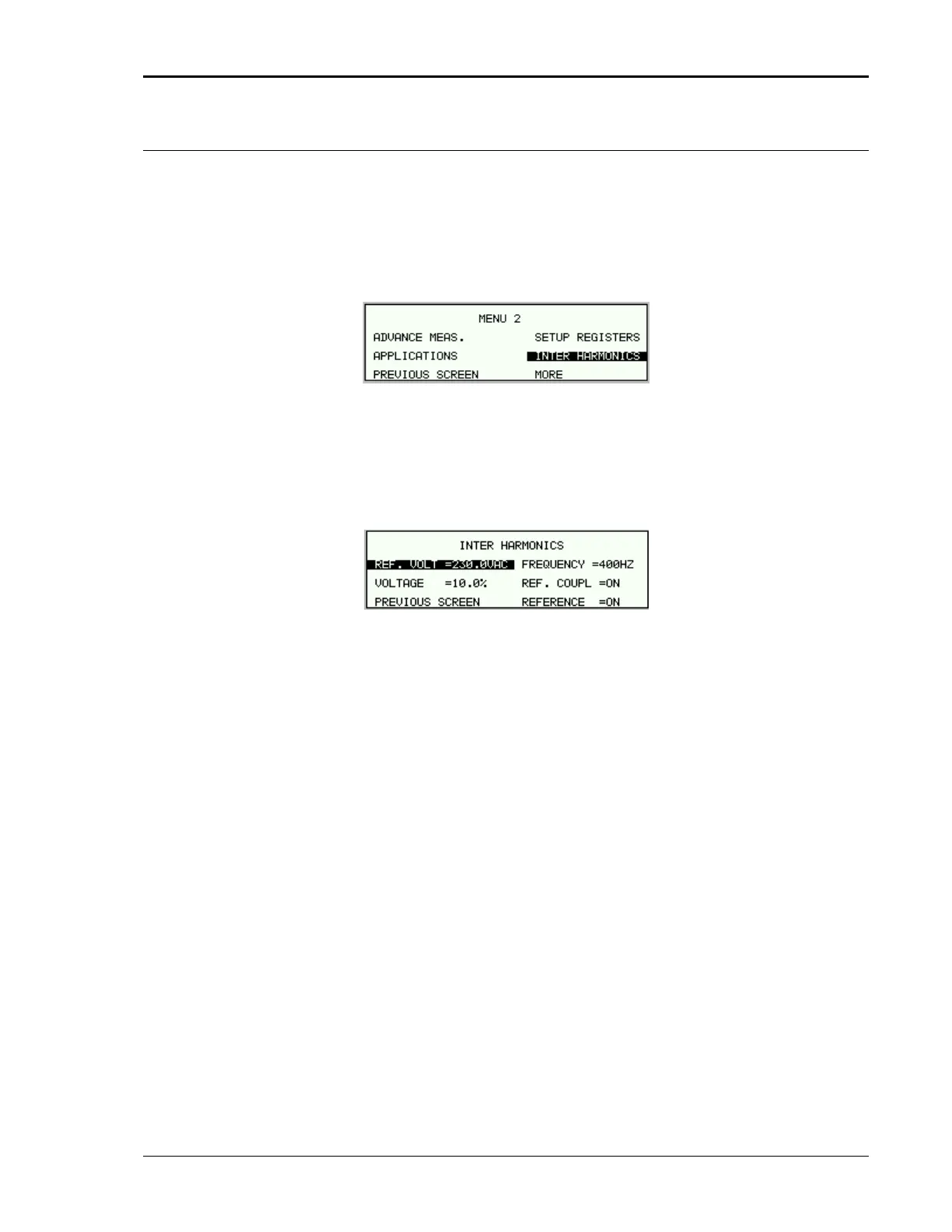

Figure 9-30. Select INTERHARMONICS using the up or down key.
Figure 9-30: MENU 2 SCREEN
INTERHARMONICS SCREEN
The interharmonics screen will appear as shown in Figure 9-31. This screen has
the following parameters:
Figure 9-31: INTERHARMONICS SCREEN
REFERENCE
This field will enable the Inter harmonics generator if ON is selected and will
disable the interharmonics generation if OFF is selected.
REF. COUPL
If turned on, the REF. VOLT will follow the programmed voltage value.
REF. VOLT
This field must be programmed to a value if REF. COUPL is off. This value
has a range from 0 to 230 volts. This value is set to a value equal to the phase
A voltage if the REF. COUPL is turned on.
VOLTAGE
This field programs the Inter harmonic level in percentage of the REF.VOLT. This
value has a range from 0 to 20%
