9.10 Option –WHM: Watt Hour Measurement
9.10.1 General
This section describes the WHM option available for the MX Series Power
Source.
9.10.2 Watt Hour Measurement Specification
All specifications are the same as the standard MX Power Source specifications
in addition to the following specifications:
Watt-hour
0-6.000KW
<100 Hz
0.2%FS +0.1% Range
100-819 Hz
0.5%FS +0.1%R
>6.000KW
3 X the above specifications
9.10.3 Local Operation
From the Menu screen 2, select the APPLICATIONS SETUP 2 screen. The screen
will appear as shown in Figure 9-43. Use the up and down key to position the
cursor to the WH METER field. Press the Enter Key.

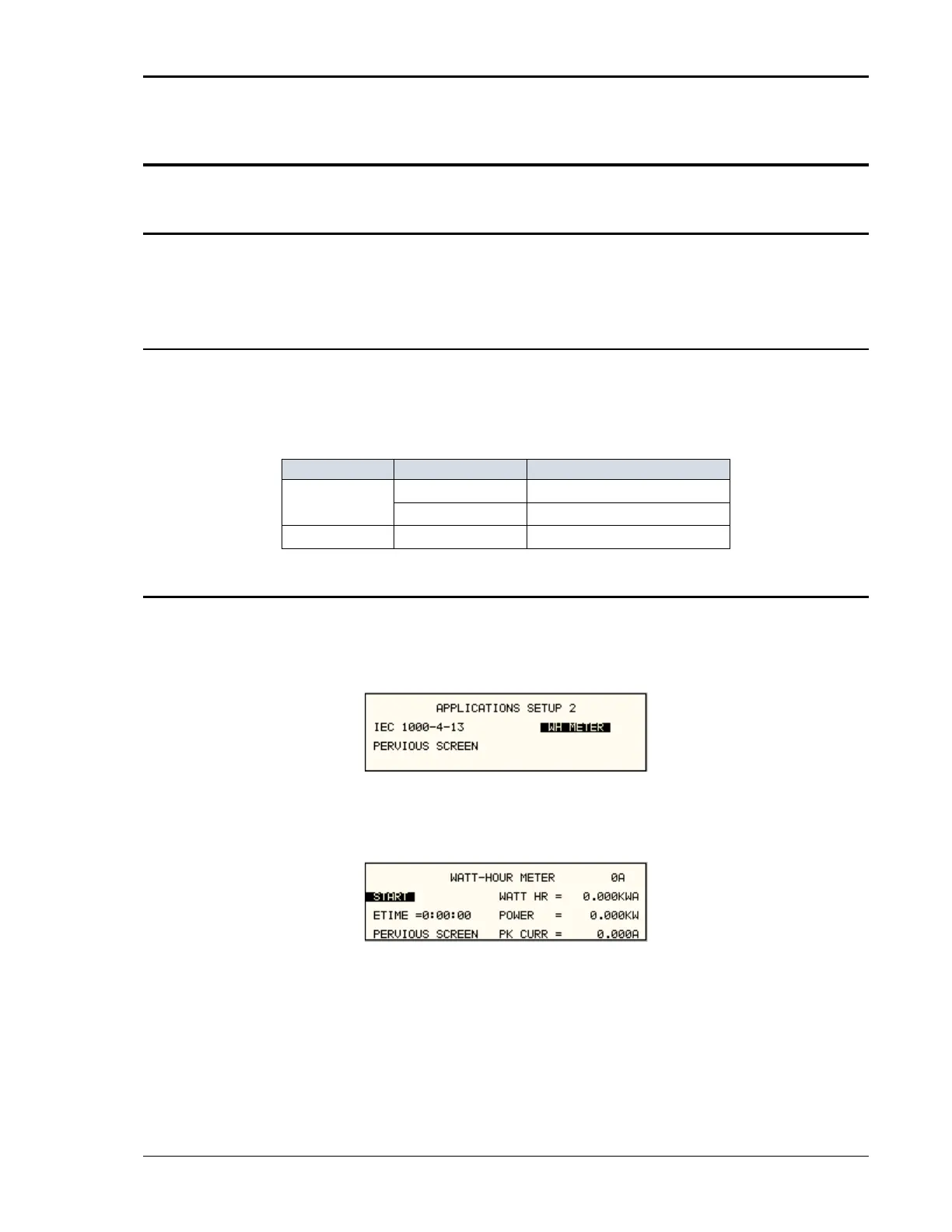

Figure 9-43: Application Screen
The WATT-HOUR METER screen shown in Figure 9-44 has the following fields:
Figure 9-44: Watt-Hour Meter Screen
START:
This field will activate the watt-hour measurements. Moving the shuttle
clockwise when the field is highlighted will activate the watt-hour function and
the field will change to STOP as shown in Figure .
To Next Page
