4.7.4 Pulse Transients

Pulse transients let you program the output to a specified value for a

predetermined amount of time. At the end of the Pulse transient, the output

voltage returns to its previous value. Parameters required to set up a Pulse

transient include the pulse count, pulse period, and pulse duty cycle. An

example of a Pulse transient is shown in Figure 4-43. In this case, the count is

4, the pulse period is 16.6 ms or 60 Hz and the duty cycle is 33%.

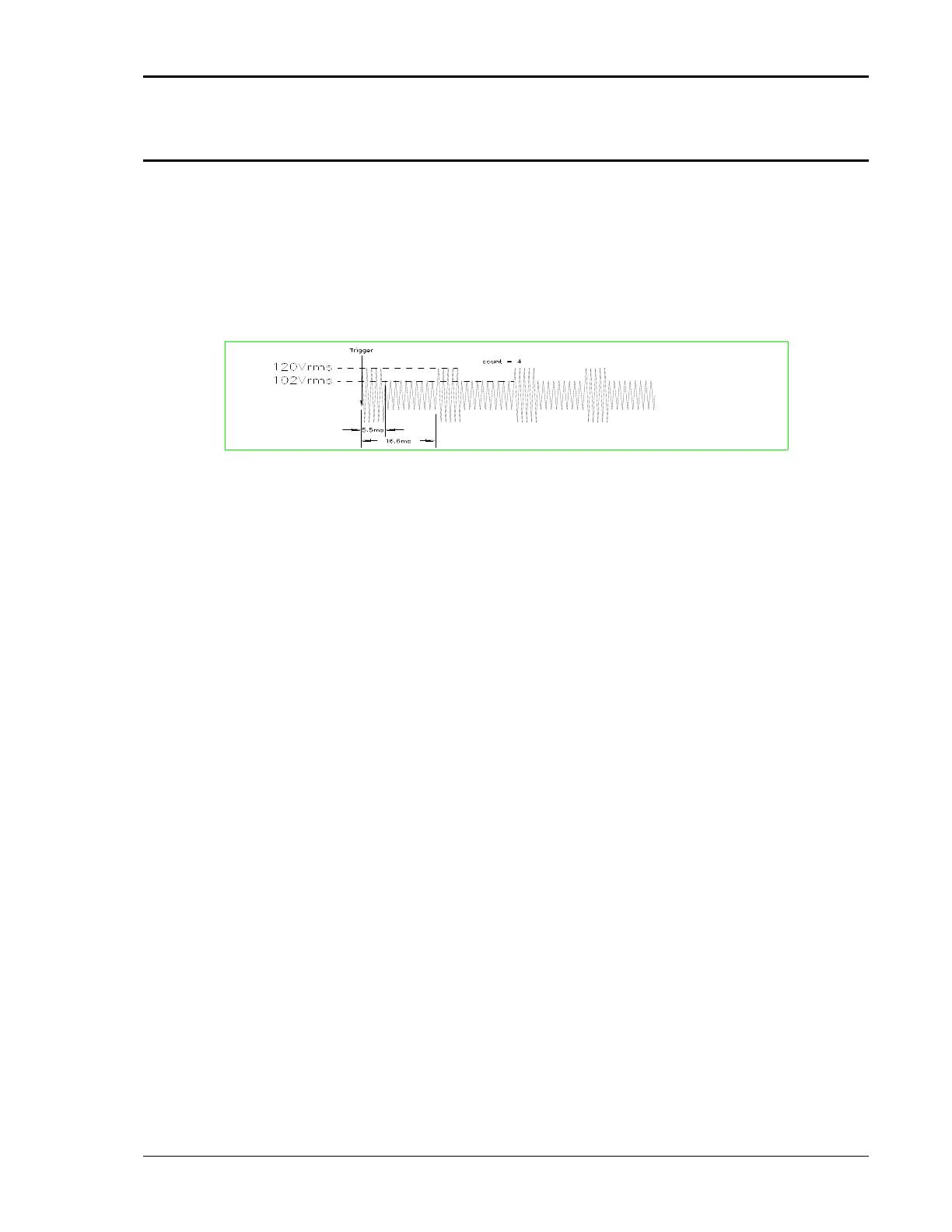

Figure 4-43: Pulse Transients

Note that Pulse transients can only be programmed over the bus, not the front

panel. Refer to the SCPI Programming Manual for more information about

programming Pulse transients and triggers.
