User Manual – Rev BE AMETEK Programmable Power

MX Series 308

9.6.1.8.4 Emergency Test

From the MIL704 DC MENU scroll to the EMERGENCY DC entry using the up and

down cursor keys (Figure 9-42). Press the ENTER key to start the EMERGENCY

TEST.

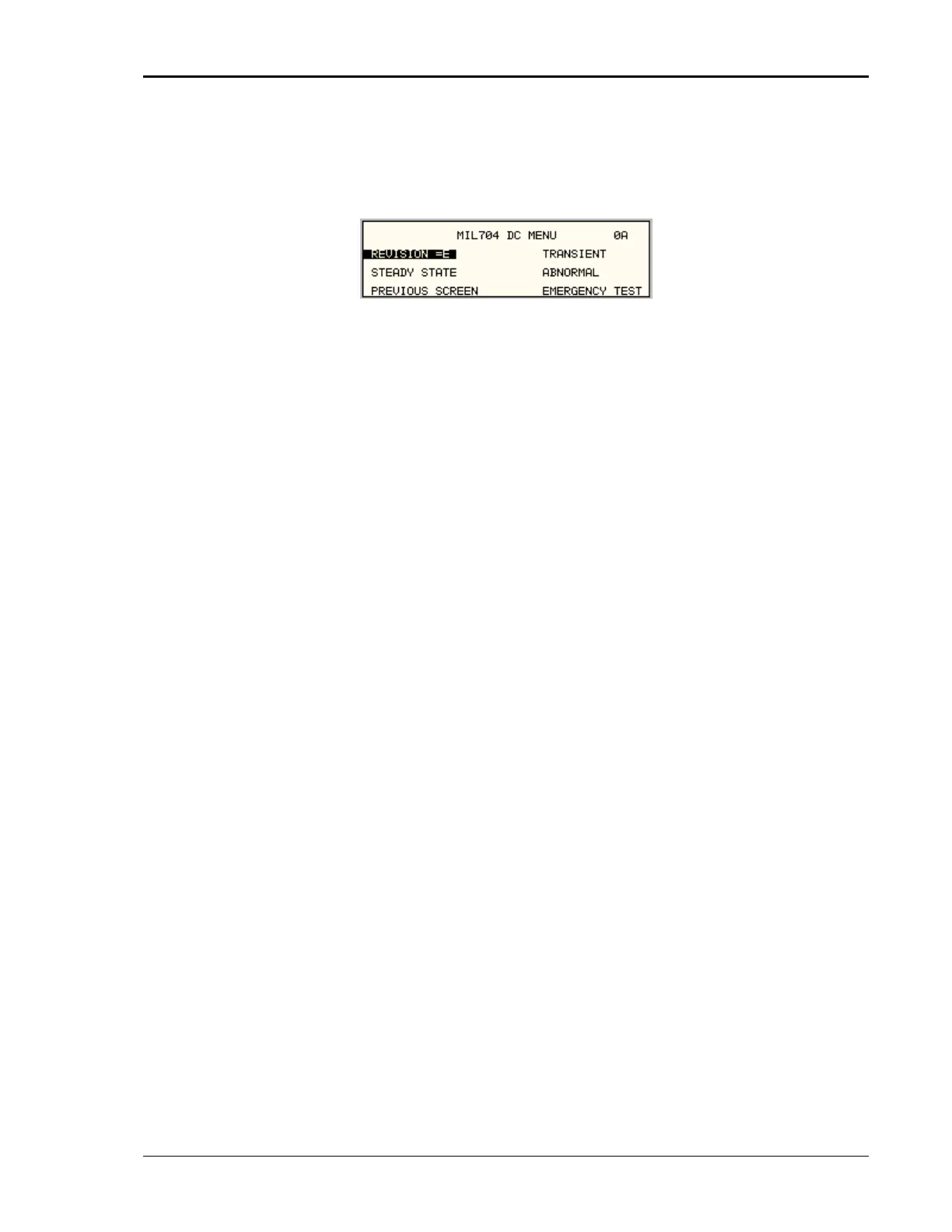

Figure 9-42: Emergency Test

VOLTAGE

This test will change the output voltage for the selected phase in the following

sequence:

28V system:

• 18V for 1 minute.

• 29V for 1 minute.

• 28V for 1 minute.

270V system:

• 250V for 1 minute.

• 280V for 1 minute.

• 270V for 1 minute.

The ← key (backspace) will terminate the test at any time.
