User Manual – Rev BE AMETEK Programmable Power

MX Series 278

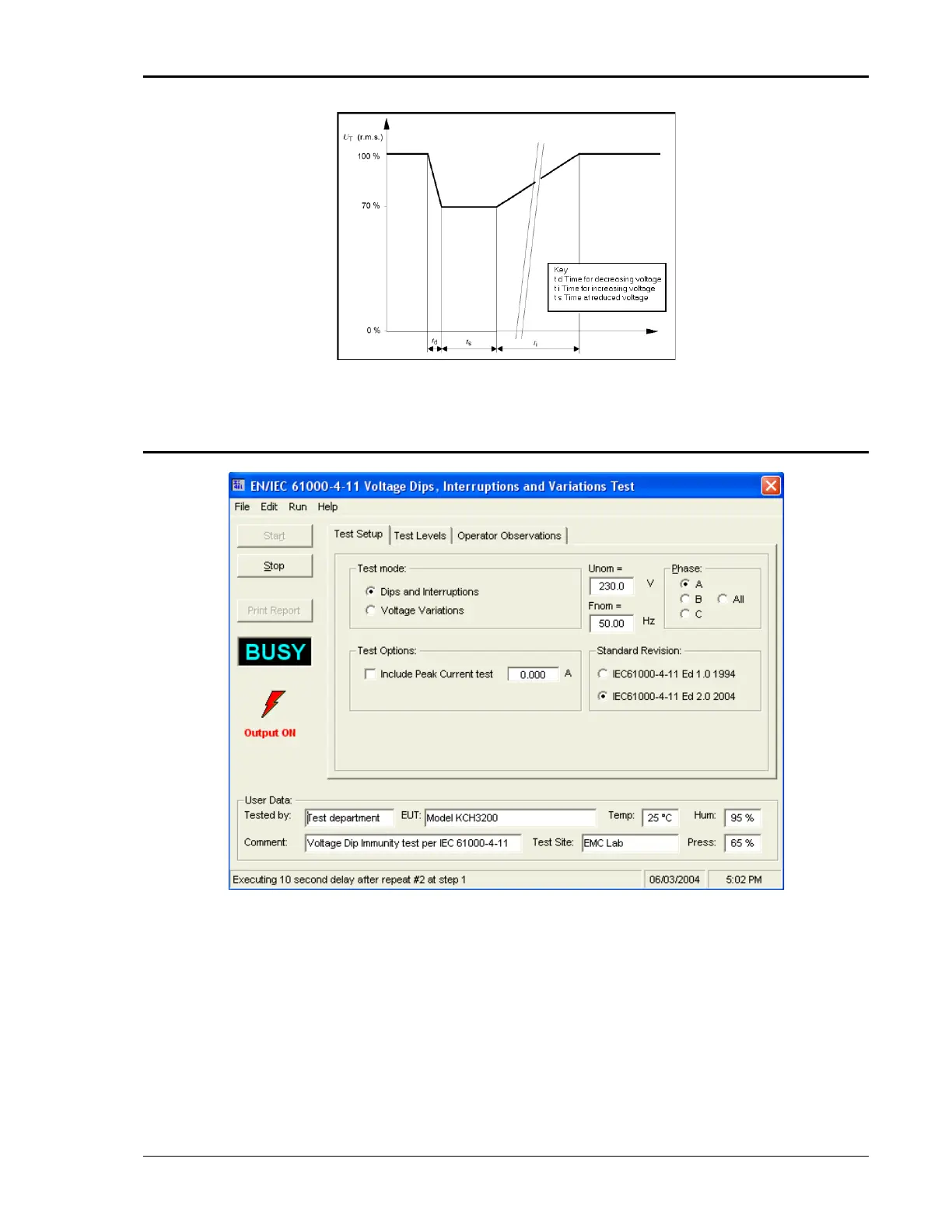

Figure 9-18: EN 61000-4-11 Voltage Variation Specification - Edition 2.0

9.4.7 Using the Virtual Panels Windows Program for IEC 61000-4-11 Testing

Figure 9-19: IEC 61000-4-11 GUI screen.

The Virtual Panels Windows control program will detect the presence of the –

411 option on the MX AC power source. Test reports can be generated at the

end of a test for documentation purposes.

To support Edition 2.0 of the IEC 61000-4-11 test standard, version 1.20 or

higher of the Virtual Panels is required. Older versions of the Virtual Panels will

only support Edition 1.0 tests. The desired Edition can be selected by the user

and provides the relevant data entry mode for the Edition selected.
