9.5.4 Front Panel Entry
While it is possible to perform IEC 61000-4-13 testing from the front panel of
the MX Series AC power source, it is recommended to use the provided Virtual
Panels Windows program for report generation. This also provides a more
convenient way to perform Class 1 and User class tests as test levels can be
saved to disk.
To perform a test from the keyboard, select the APPLICATIONS screen from the
MENU 2 screen. The APPLICATIONS SETUP 1 screen will appear. Move to the
MORE field to proceed to the APPLICATIONS SETUP 2 screen as shown in Figure
9-20. (NOTE: On Series I MX models, the IEC 1000-4-13 option is located on
the APPLICATIONS SETUP screen instead as there is only one APPLICATIONS
SETUP screen.)

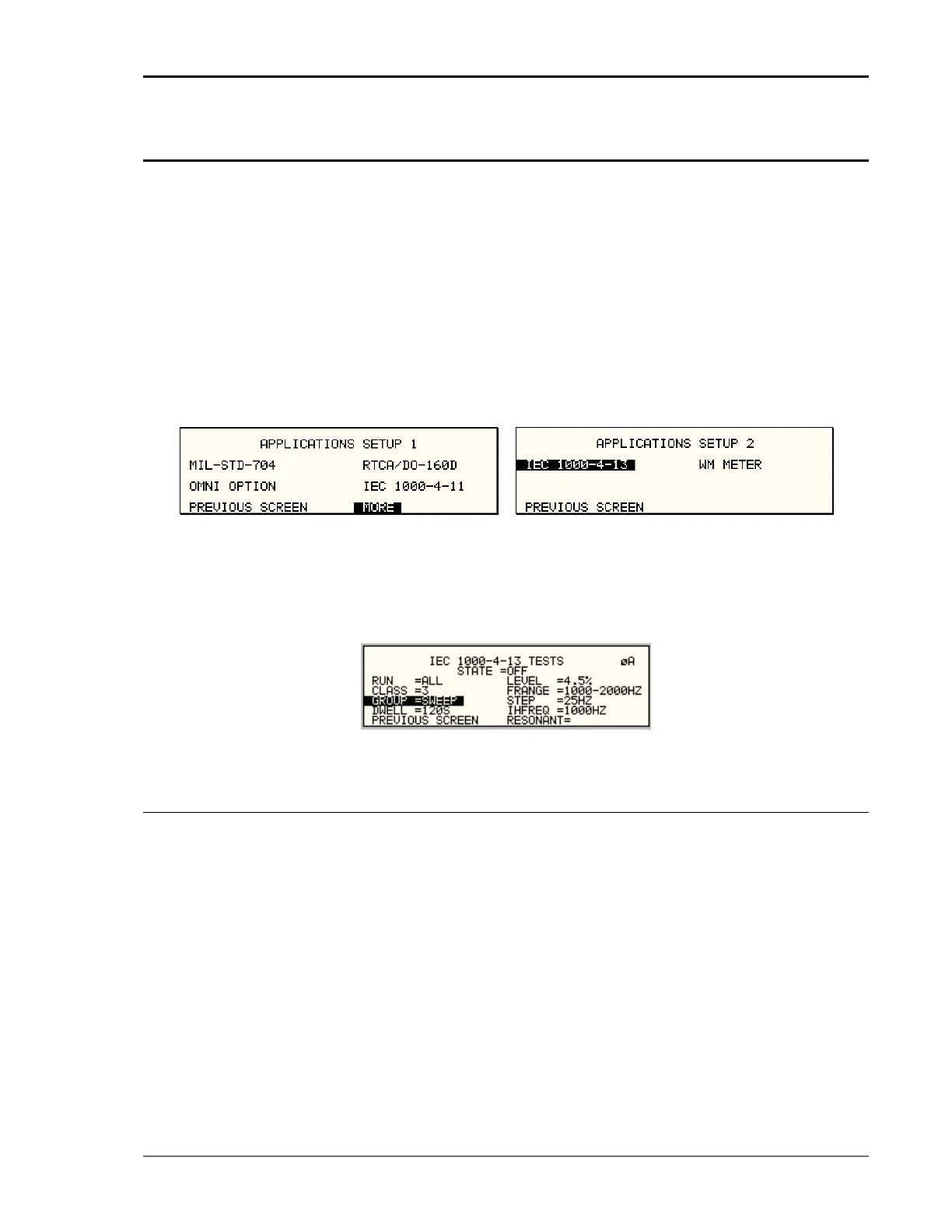

Figure 9-20: Application Setup Menus
Scroll to the IEC 1000-4-13 entry using the up and down cursor keys. Press the
ENTER key to select the IEC 1000-4-13 main menu. The screen will appear as
shown in Figure 9-21.
Figure 9-21: IEC1000-4-13 Menu
9.5.4.1 IEC Screen Parameters
The IEC 1000-4-13 has the following common fields for all IEC1000-4-13 test
groups.
STATE
The STATE field must be set to ON before the test can run. Initial setup
conditions must be met to run the test. See section 9.5.2.
RUN
The RUN field has the following selections:
• ALL Run all IEC 1000-4-13.
• GROUP Run the selected group.
• RANGE Run the selected range for the selected group.
