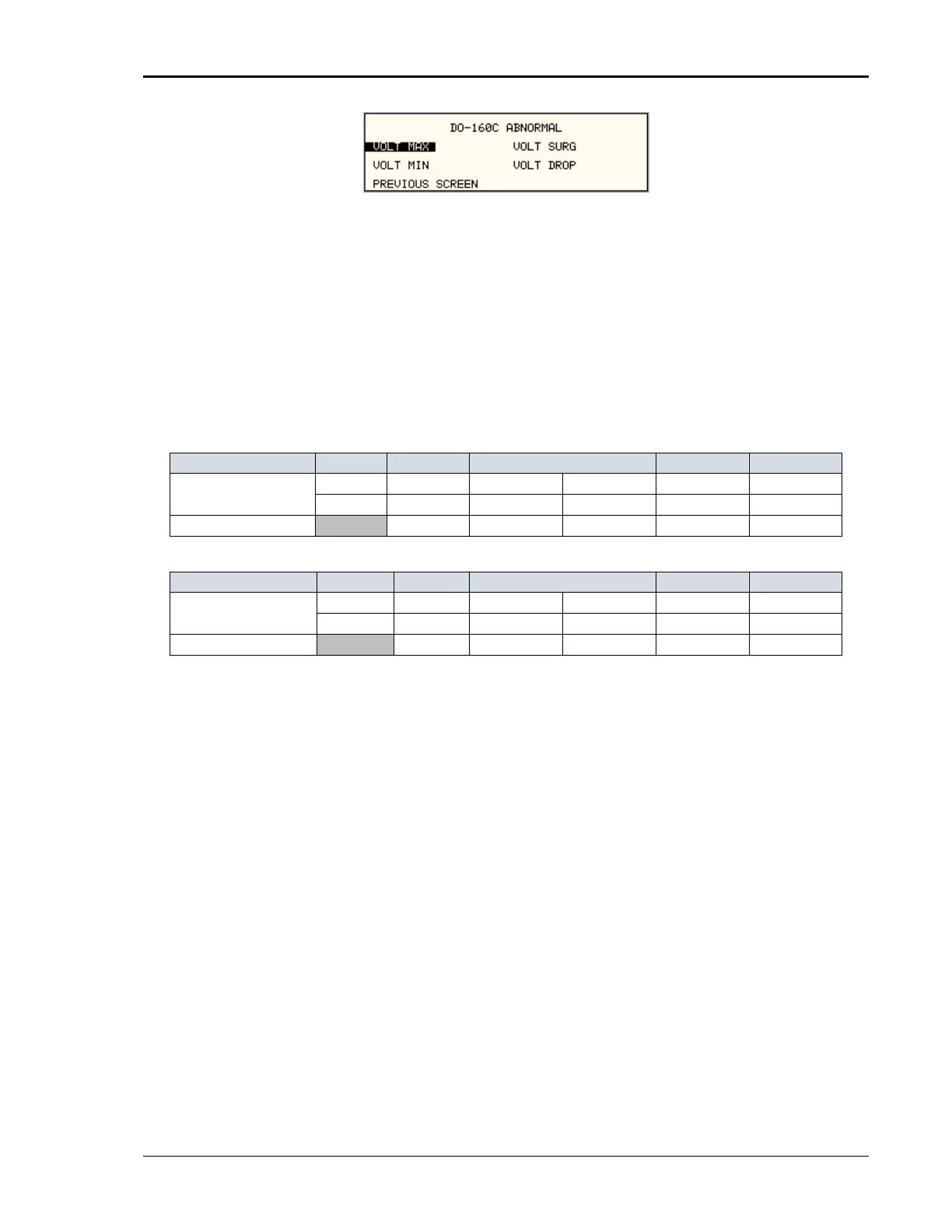

Figure 9-9: Abnormal Screen
The ABNORMAL SCREEN has the following tests:
• VOLT MAX
• VOLT MIN
• VOLT SURG
• VOLT DROP
• FREQ TRANSIENTS
The above test can be selected by scrolling to the highlighted selection using the
up and down key and the ENTER key to start the selected test.
VOLT MAX
Standard/Group
Phases
RTCA
Group 1
Group 2
Group 3
Vo l t a g e 1 97 97 104 97 97
3 98.5 98.5 105.5 98.5 98.5
Frequency 400 400 370 360 360
Table 9-10: Abnormal Voltage Minimum
Standard/Group
Phases
RTCA
Group 1
Group 2
Group 3
Vo l t a g e 1 134 134 122 134 134
3 120.5 132.5 120.5 132.5 132.5
Frequency 400 400 430 650 800
Table 9-11: Abnormal Voltage Maximum
This test will set the voltage and frequency to levels defined by Figure 9-10 for
5 minutes. The test will be repeated for Group 1 only as indicated in Table 9-10
for voltage and Table 9-11 for frequency. All Groups will repeat the test using
Table 9-10 for the voltage setting and Table 9-10 or Table 9-11for the
frequency setting. The ← key (backspace) will terminate the test at any time.
VOLT MIN
This test will set the voltage and frequency to levels defined by Table 9-11 for 5
minutes. The test will be repeated for Group 1 only as indicated in Table 9-11.
All Groups will repeat the test using Table 9-11 for the voltage setting and Table
9-10 for the frequency setting. The ← key (backspace) will terminate the test
at any time.
VOLT UNDER
This test will drop the output voltage from 115 volts to 60 volts for 7 seconds.
VOLT SURGE
