User Manual – Rev BE AMETEK Programmable Power
MX Series 131
4.2.6.4 VOLTAGE/FREQUENCY SWEEP/STEP sub menu

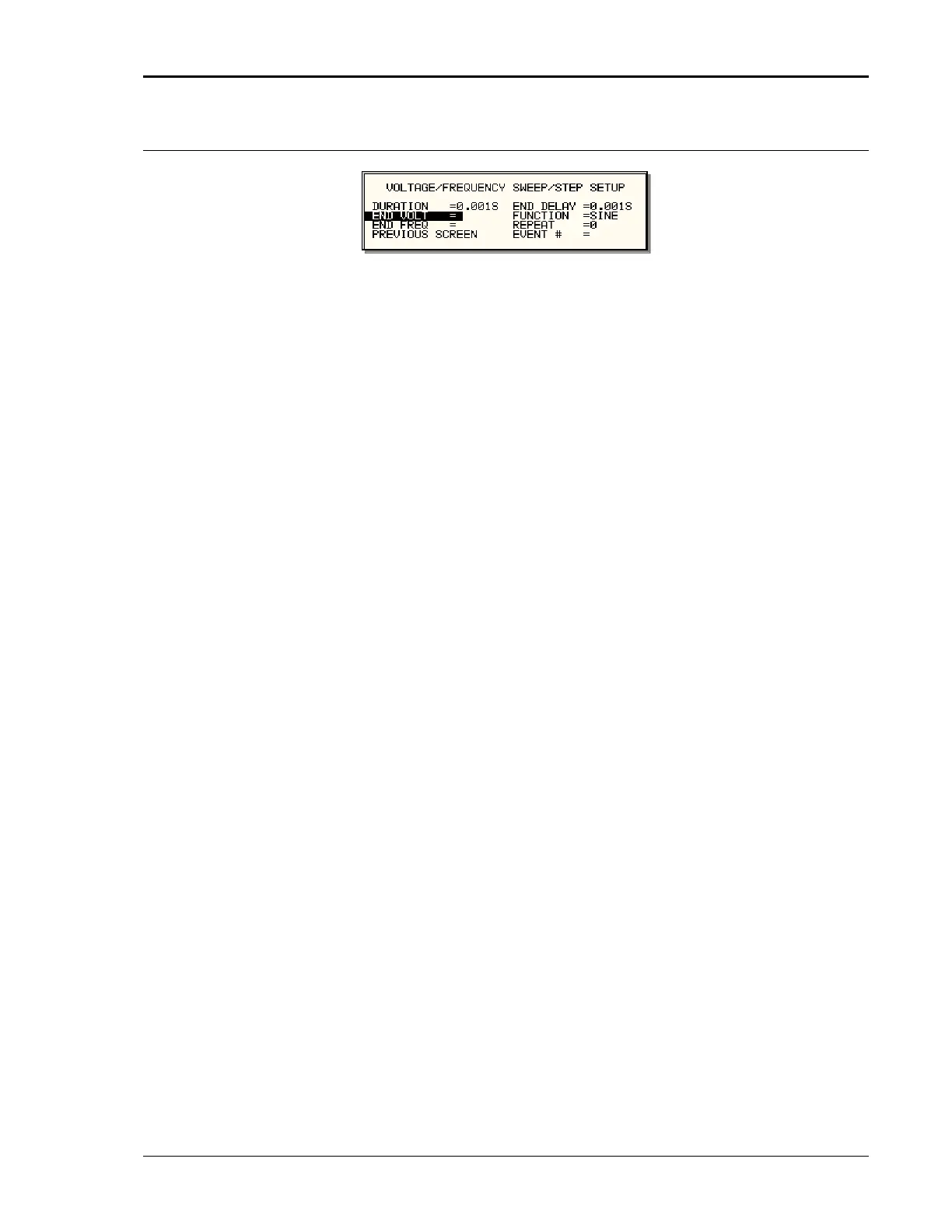

Figure 4-16 VOLTAGE/FREQUENCY SWEEP/STEP SETUP Screen
The Volt/freq sweep/step screen shown in Figure 4-16 can be reached from the
transient screen as follows:
3) Scroll to the VOLT/FREQ SWEEP/STEP entry using the up and
down cursor keys.
4) Press the ENTER key to bring up the VOLT/FREQ SWEEP/STEP
screen.
The VOLT/FREQ SWEEP/STEP screen has several data fields. All data fields that
are blank to the right of the equal sign must be filled or an error message will
occur when trying to leave this screen. The EVENT # is the last data field to be
filled. Entering the event data field will cause the display to return to the
TRANSIENT screen where a new selection can be made.
The VOLT/FREQ SWEEP/STEP screen has the following fields:
DURATION Duration is the amount of time the output voltage and
frequency will take to reach the END FREQ and END
VOLT levels. Duration will define the slew rate of the
output voltage and frequency for the event. A duration
of 0 seconds will cause the output voltage and
frequency to reach their end value immediately.
END FREQ This is the output frequency at the end of the transient
event in Hz.
END VOLT This is the output voltage at the end of the transient
event in volts.
END DELAY This is the time delay the output frequency and voltage
will stay at END FREQ and END VOLT before proceeding
with the next transient event or completing the
transient.
