User Manual – Rev BE AMETEK Programmable Power

MX Series 149

4.2.11.4 LIMIT SETUP screen

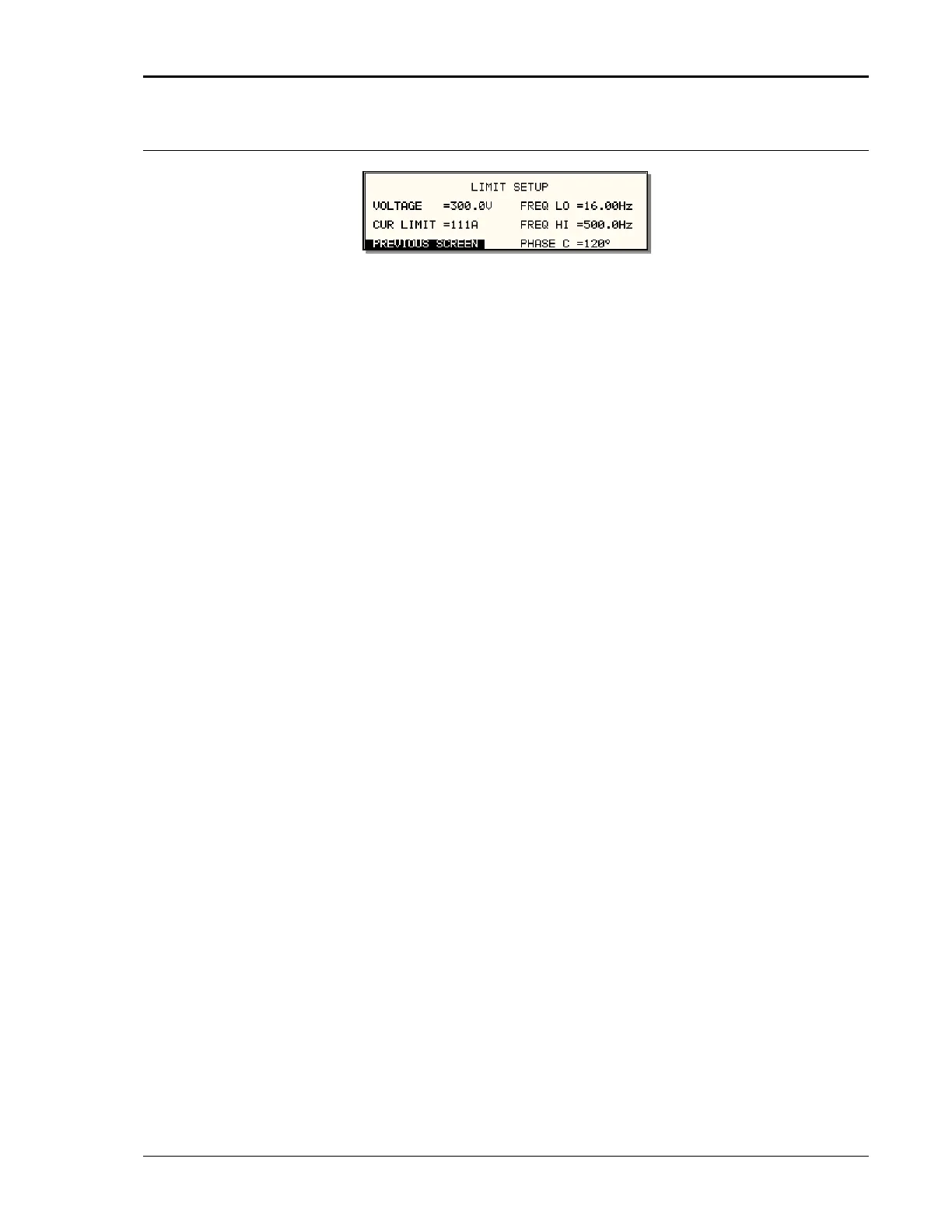

Figure 4-25: LIMIT SETUP Menu

The limit setup screen is not a menu but only serves to inform the user of the

hardware capabilities of the AC source. The cursor can be moved to any of the

fields in this screen but none of these fields can be changed. The following

information is provided on this screen:

Entry Description

VOLTAGE Maximum AC rms or DC voltage available in the high

voltage range.

CUR LIMIT Maximum AC rms current limit available in the low

voltage range.

FREQ LO Lowest possible fundamental frequency that can be

programmed.

FREQ HI Highest possible fundamental frequency that can be

programmed.

PHASE C Phase angle of phase C with respect to phase A in three

phase mode. If the AC source is a single phase model,

this field will show 0°. If the AC source is a split phase

model, this field will show 180°.
