MX Series 138
4.2.10 SETUP REGISTERS Menu

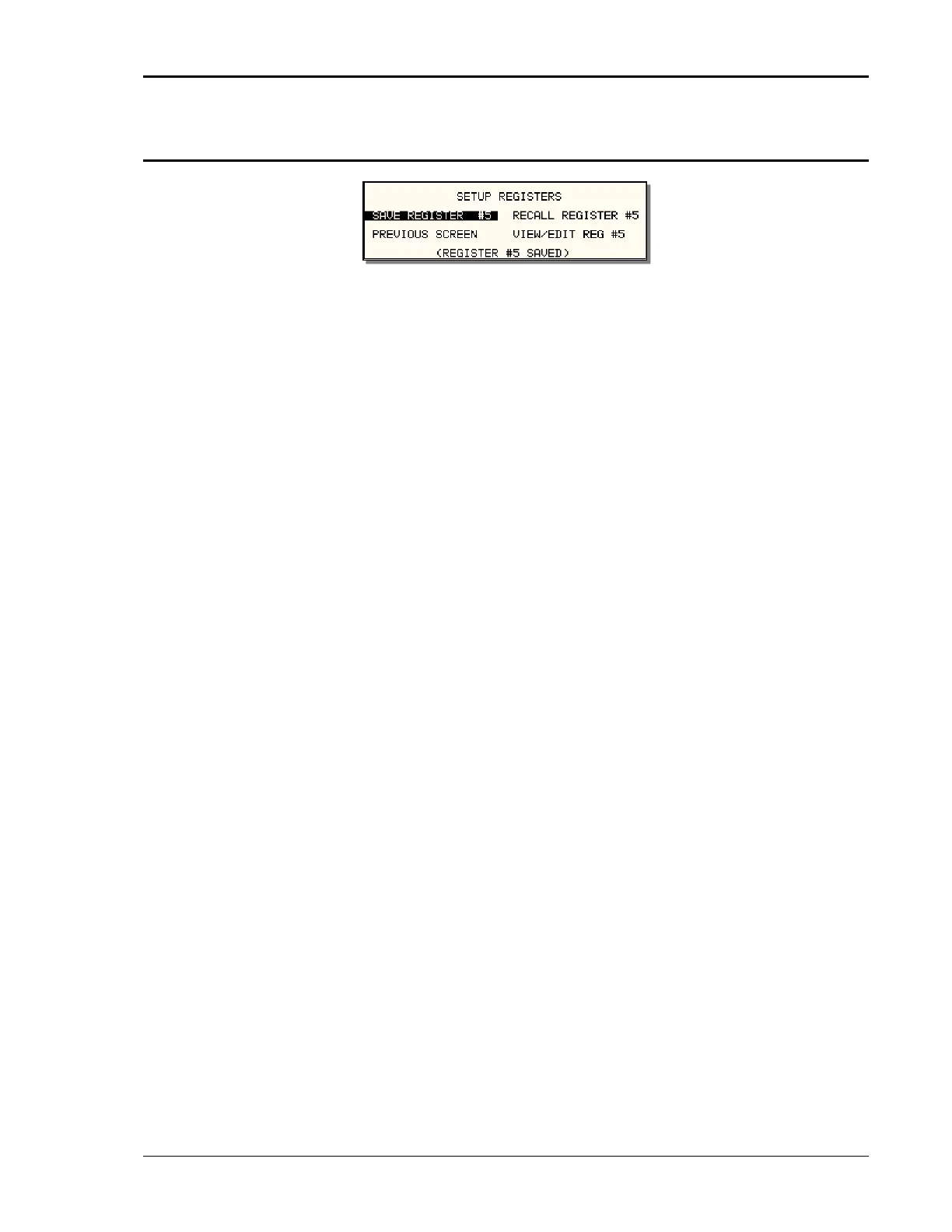

Figure 4-20: SETUP REGISTERS Menu
The SETUP REGISTERS menu allows the user to store and recall complete
instrument setups, including transient program lists. A total of 8 non-volatile
setup registers is available, numbered sequentially from 0 through 7. (For
Series II, number of registers is 16).
The following entries can be found in the SETUP REGISTERS menu:
Entry Description
SAVE REGISTER Save present instrument setup to a register number
selected by the user. The numeric data entry keypad
should be used to enter a number between 0 and 7
(15). Once the ENTER key is pressed, all settings are
saved. A message will appear at the bottom of the
screen to confirm the save operation.
RECALL REGISTER Recall instrument setup from a register number
selected by the user. The numeric data entry keypad
should be used to enter a number between 0 and 7
(15). Once the ENTER key is pressed, all settings are
recalled. A message will appear at the bottom of the
screen to confirm the recall operation.
VIEW/EDIT REGISTER The View/Edit entry can be used to display the contents
of a setup register before it is recalled. After the user
enters a register number to view or edit and presses
the ENTER key, the PROGRAM screen will appear. All
parameters that will be changed by recalling the
register will be blinking. If ENTER is pressed again, the
register will be recalled, and the new values take effect.
To edit the register content, change all parameters that
need to be changed. Pressing ENTER will save the new
values and make them active.
