User Manual – Rev BE AMETEK Programmable Power
MX Series 147
4.2.11.3 INITIAL SETUP menu

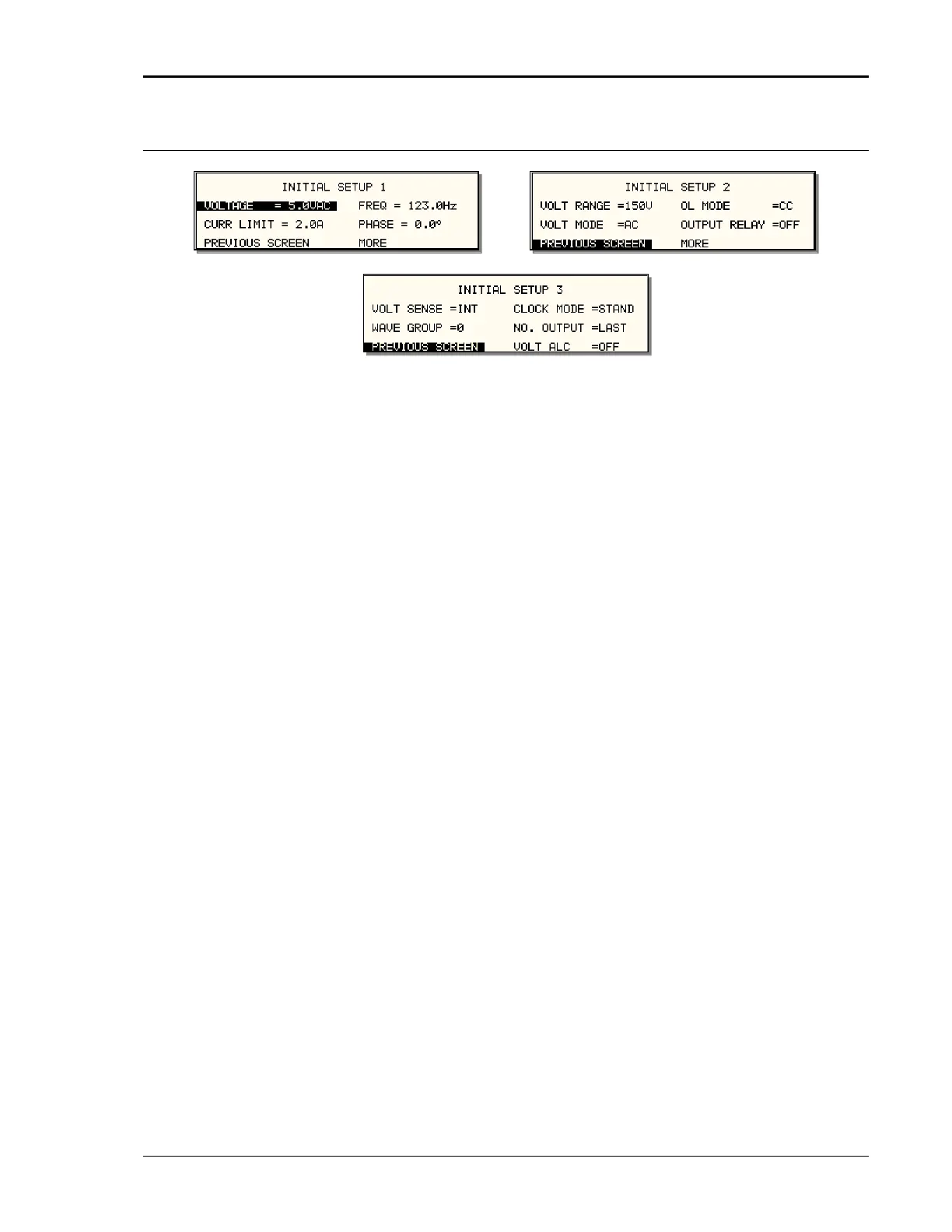

Figure 4-24: INITIAL SETUP Menus
Any time the power source is powered up, the output will reflect the values
stored as the INITIAL setup values. This allows the unit to be always powered
up in a known state. The INITIAL values can be set in the INITIAL SETUP
menus.
The initial setup can be used to power up the power source with the output on
and a high voltage present at the output. For normal situations, this is not
recommended due to the potential danger to the operator. It is recommended
that the initial voltage be set low and/or the output relay be programmed to
OFF for most situations.
The following fields are provided in the INITIAL SETUP menus:
Entry Description
INITIAL SETUP 1
VOLTAGE Sets the power-on AC voltage for AC and AC+DC
modes or the DC voltage for DC mode.
CURR LIMIT Sets the power-on current limit value.
FREQ Sets the power-on frequency value.
PHASE Sets the power-on frequency for phase A with respect
to an external sync signal. If the internal oscillator is
used (default) this setting has no effect.
INITIAL SETUP 2
VOLT RANGE Sets the power-on voltage range value.
