4.2 Menu Structure
The next few pages show a map of the available menus in the MX Series. There
are three main level (level 1) menus from which all other menus can be
reached. Frequently used (level 2) menus have a short cut key that provides
direct access.
Examples of such menus are Program, Measurements, and Waveform. In any
case, there are never more than three levels of menus although some menus
may be spread across more than one screen.
4.2.1 MAIN Menus

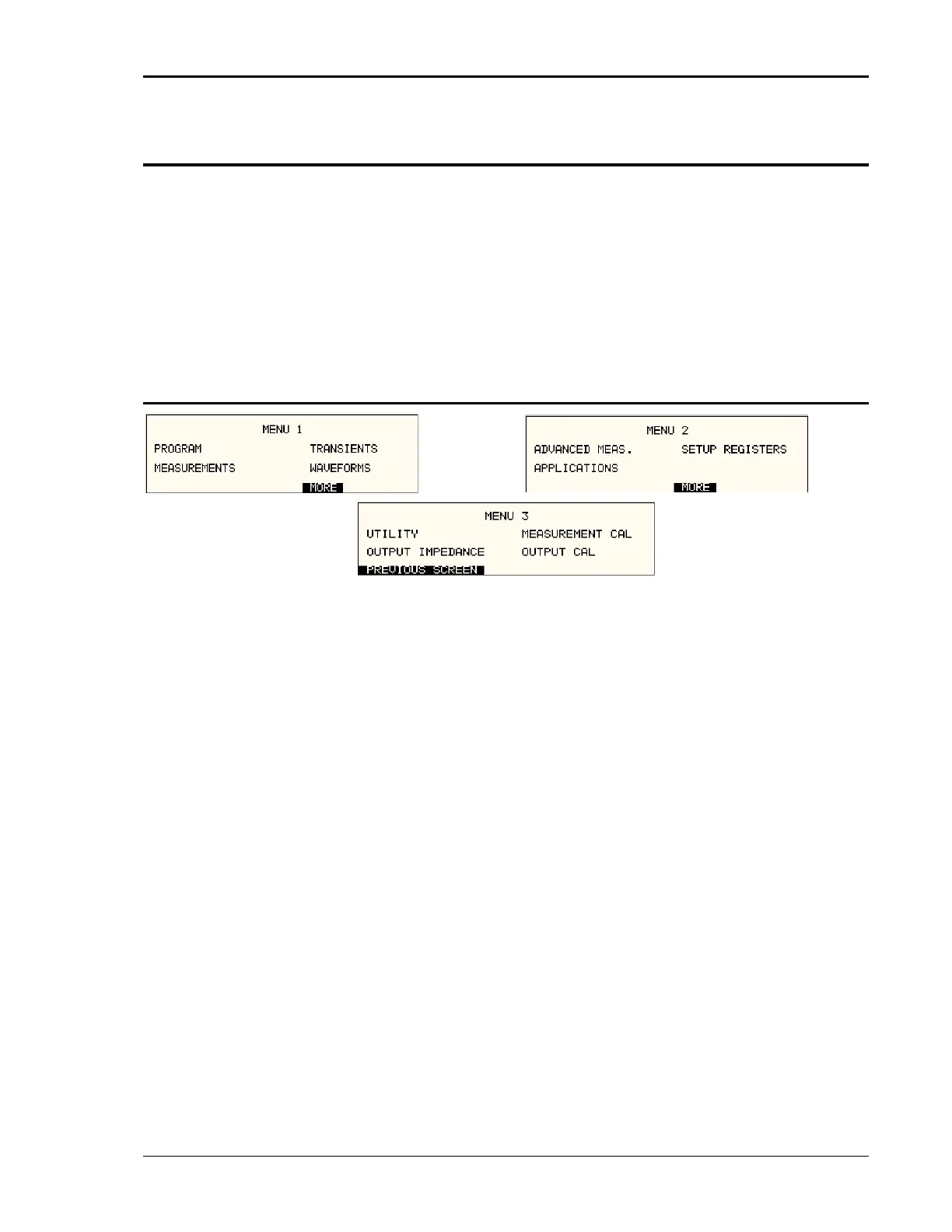

Figure 4-8: Menu 1 through 3
The top-level menu is split in three parts, MENU 1 through MENU 3 to allow
spacing between menu entries. MENU 2 and 3 can be reached from MENU 1 by
selecting the MORE entry or by pressing the MENU key repeatedly, which will
toggle from MENU 1 to 2 to 3 and back to 1.
The division of menu choices between the two screens is graphically illustrated
in 4.2.2 by the boxes in level 1. Each box represents one screen. Subsequent
screens can be reached using the MORE entry.
