User Manual – Rev BE AMETEK Programmable Power
MX Series 265
This test requires 180-volt output voltage. If the power source is set at the low
voltage range, the high voltage range will be selected before the test starts. At
the end of the test the AC source will be switched back to the low range.
The output voltage will surge to 180 volts for 100 ms. followed by drop to 148
volts for 1 sec before it returns to 115 volts. The ← key (backspace) will
terminate the test at any time.

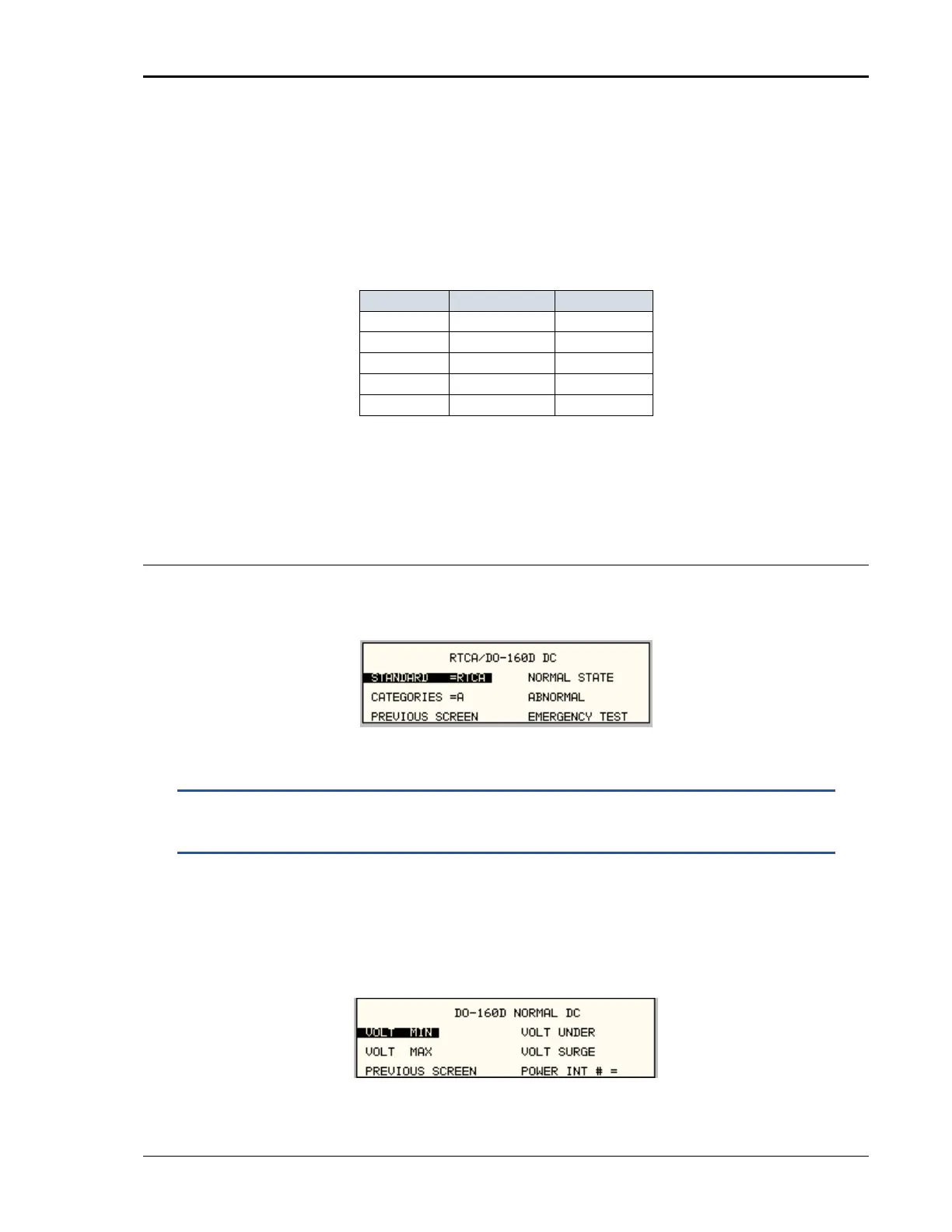

FREQUENCY TRANSIENTS (GROUP 1 ONLY)
1 400 5 minutes
2 480 5 sec.
3 400 10 sec.
4 320 5 sec.
5 400 10 sec.
Table 9-12: Abnormal Frequency Transient
This test will set the voltage at 115V and will remain at this voltage through out
the test. The test will cycle the frequency three times as shown in Table 9-12.
Each repeat will start from sequence 2.
9.3.1.6 DC TESTS
If the output voltage is set for 24V DC or 14V DC the DO-160 DC Main selection
screen will appear as seen in Figure 9-10.
Figure 9-10: DO-160 DC Main Menu
NOTE: Prior to test selection the Standard selection and Category
selection are required. Use the shuttle to select Standard RTCA
or EUROCAE. Also, select equipment category A, B or Z.
9.3.1.6.1 Normal State Test
Scroll to the NORMAL STATE entry using the up and down cursor keys. Press
the ENTER key to select the NORMAL STATE screen. The screen will appear as
shown in Figure 9-11.
Figure 9-11: Normal State
