User Manual – Rev BE AMETEK Programmable Power

MX Series 95

To compensate for the voltage drop across the filter, the external sense

connections can be made at the load (load side of the filter).

NOTE: The filter box chassis must be connected to earth ground.

It is not recommended to use the ground connection on the MX30//45 itself for

this purpose but rather a ground point at the AC service to the MX30/45.

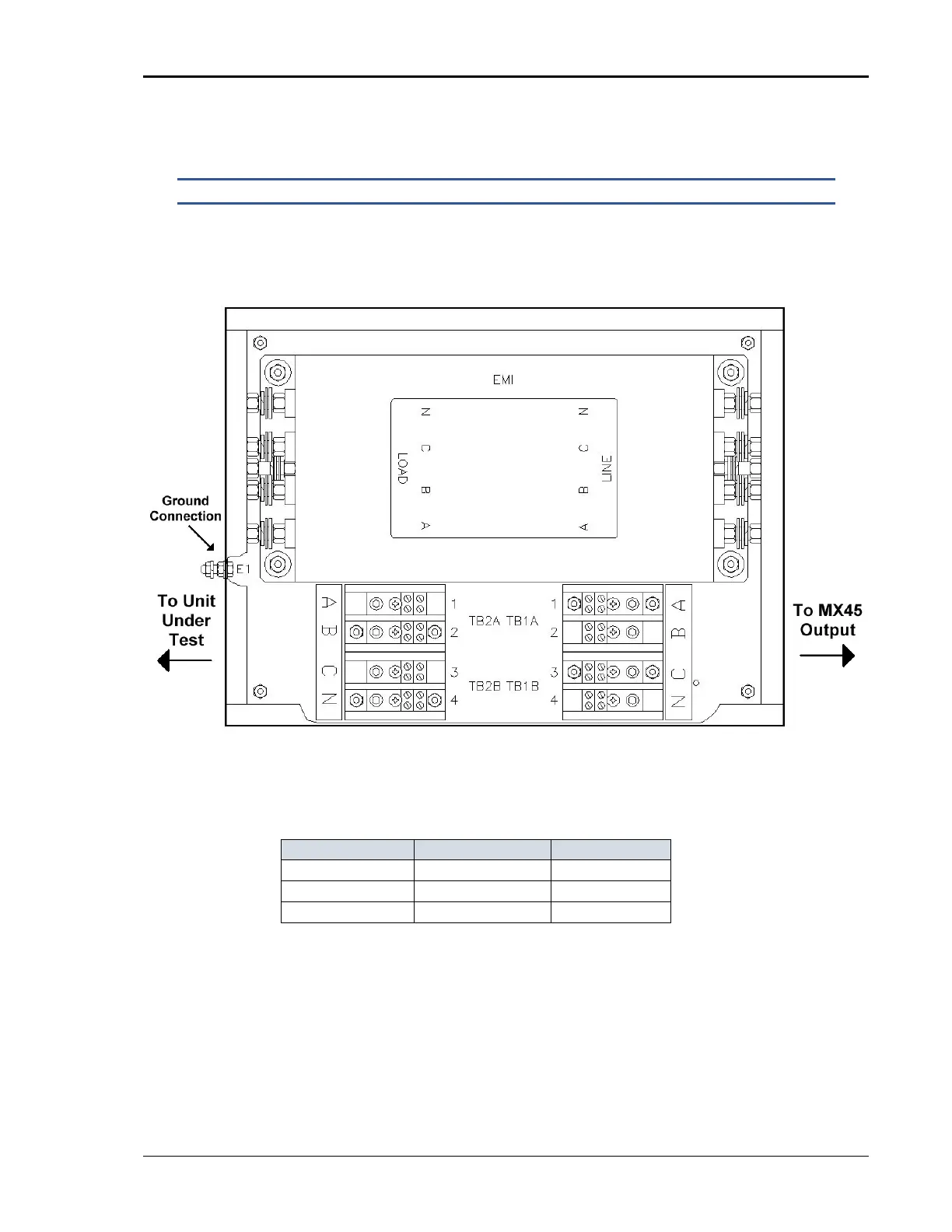

Figure 3-23: 7003-424-1 Output Noise Filter Box.

DIMENSIONS 7003-424-1 OUTPUT NOISE FILTER BOX:

Parameter

Dimension in Inches

Dimension in mm

Chassis Dimension W x L x H 12.125 “ x 16.125” x 4.125” 308 x 410 x 105 mm

Feet height: 0.875 22 mm

Strain relief hole size 1.5” diameter 38 mm diameter
