User Manual – Rev BE AMETEK Programmable Power
MX Series 135

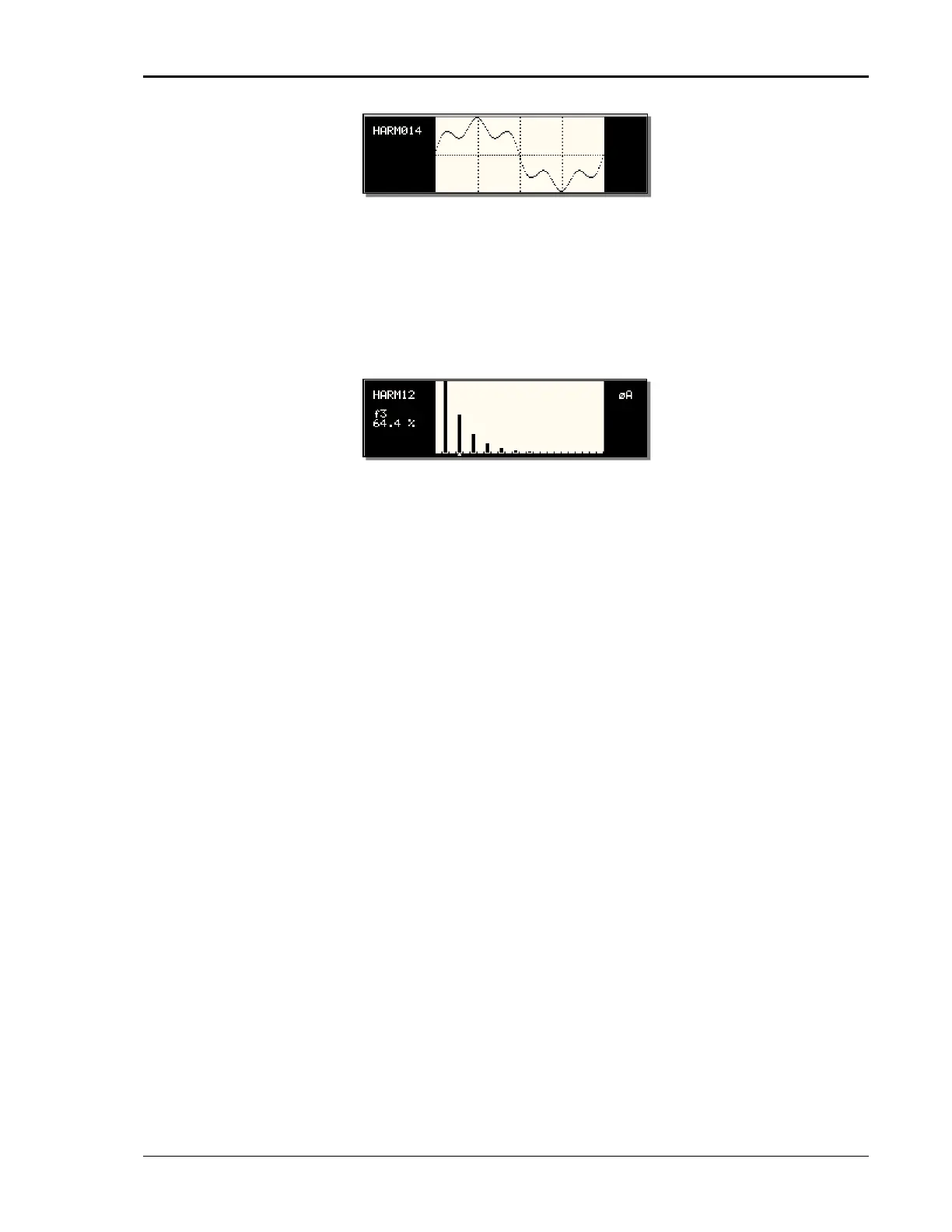

VIEW (F): This mode can be used to display any of the
available user defined waveforms in a frequency
domain display. Waveform data is shown by harmonic
amplitude and phase relative to the fundamental
frequency. Previewing a waveform can be useful if you
are unsure about the nature of the waveform that was
stored.
SINE The SINE is a standard waveform that is always
available. It does not consume any of the user defined
waveform registers and is always displayed in the
waveform list. A right arrow indicates the waveform is
presently selected for the phase. If the cursor is moved
to this field, the ENTER key will execute the selected
MODE. If the mode is set to PROG, pressing ENTER
while the cursor is on the SINE entry will select the sine
wave for the phase shown in the top right corner of the
display.
Note that the VIEW modes are not available for any of
the three standard waveforms.
SQUARE The SQUARE is a standard waveform that is always
available. It does not consume any of the user defined
waveform registers and is always displayed in the
waveform list. A right arrow indicates the waveform is
presently selected for the phase. If the cursor is moved
to this field, the ENTER key will execute the selected
MODE. If the mode is set to PROG, pressing ENTER
while the cursor is on the SQUARE entry will select the
square wave for the phase shown in the top right
corner of the display.
Note that the VIEW modes are not available for any of
the three standard waveforms.
