2) Rotate the knob clockwise to increase the value,
counterclockwise to decrease the value
These changes take effect immediately.
4.3.3 Change Output Values with the Knob in SET Mode
The SET mode of operation is a mode in which changes to output parameters
made with the knob or the entry keypad do not affect the output until the
ENTER key is pressed. The AC source is put in this SET mode by pressing the
SET key.
To change the output voltage:
1) Press the SET key
2) Place the cursor on the VOLTAGE entry
3) Rotate the knob clockwise to increase the value,
counterclockwise to decrease the value
4) The VOLTAGE field will be blinking to indicate a change in
settings but the output remains unchanged.
5) Place the cursor on the FREQ entry
6) Rotate the knob clockwise to increase the value,
counterclockwise to decrease the value
7) The FREQ field will be blinking to indicate a change in settings,
but the output remains unchanged.
8) Press the ENTER key.
Both new voltage and frequency output values are now present at the output.
The unit has returned to immediate mode of operation until the SET key is
pressed again.

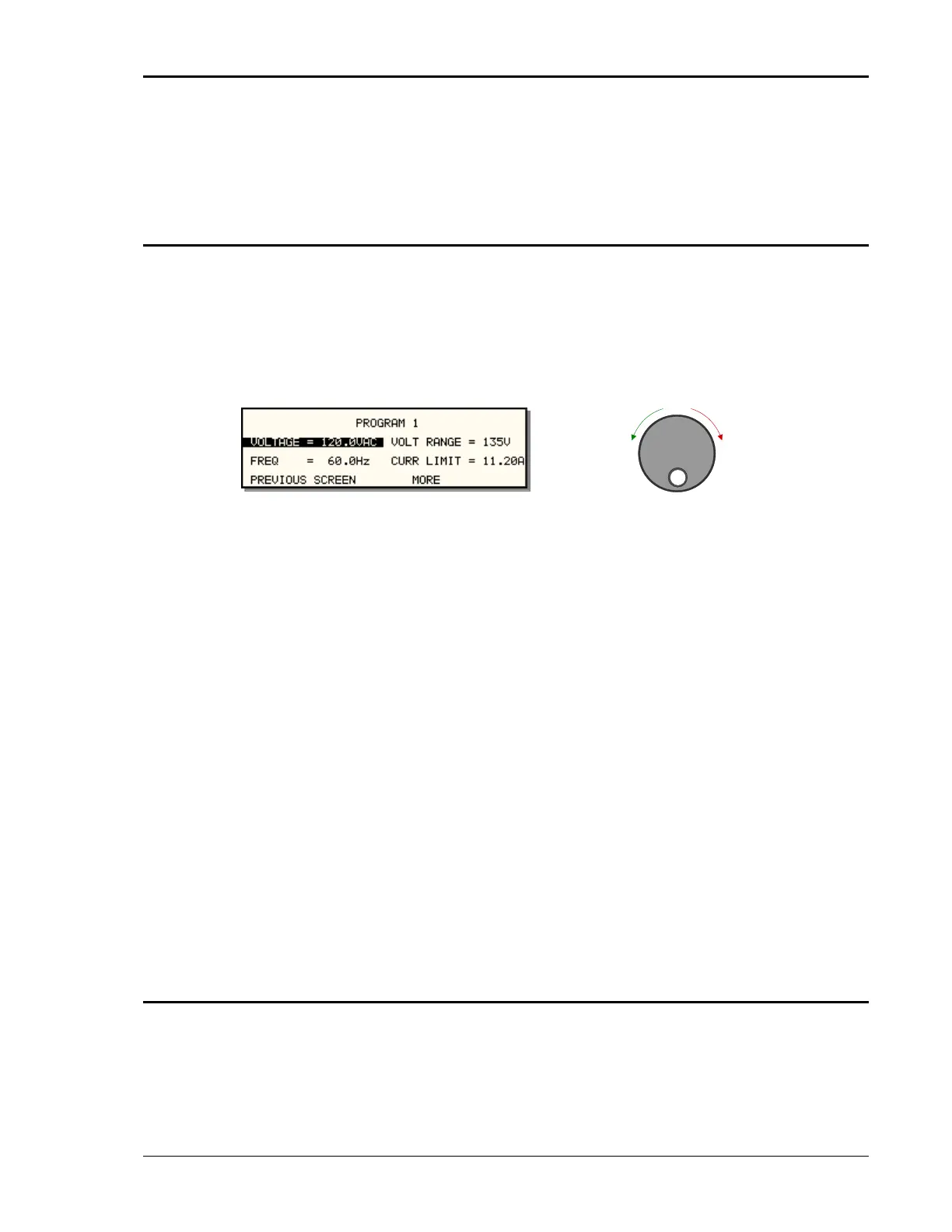

4.3.4 Change Output Values with the shuttle knob from the MEASUREMENT 1 screen
Basic output settings such as voltage and frequency can be changed from the
MEAS 1 screen by using the following procedure:
Clockwise
INCREM ENT
DECREM ENT
Counter Clockwise
To Next Page
