9-4

129390199 Operator Manual Troubleshooting

9.2.2 Too Long In

Exhaust

Occurs if chamber does not

exhaust to 4 psig (0.28 bar)

within the allotted time.

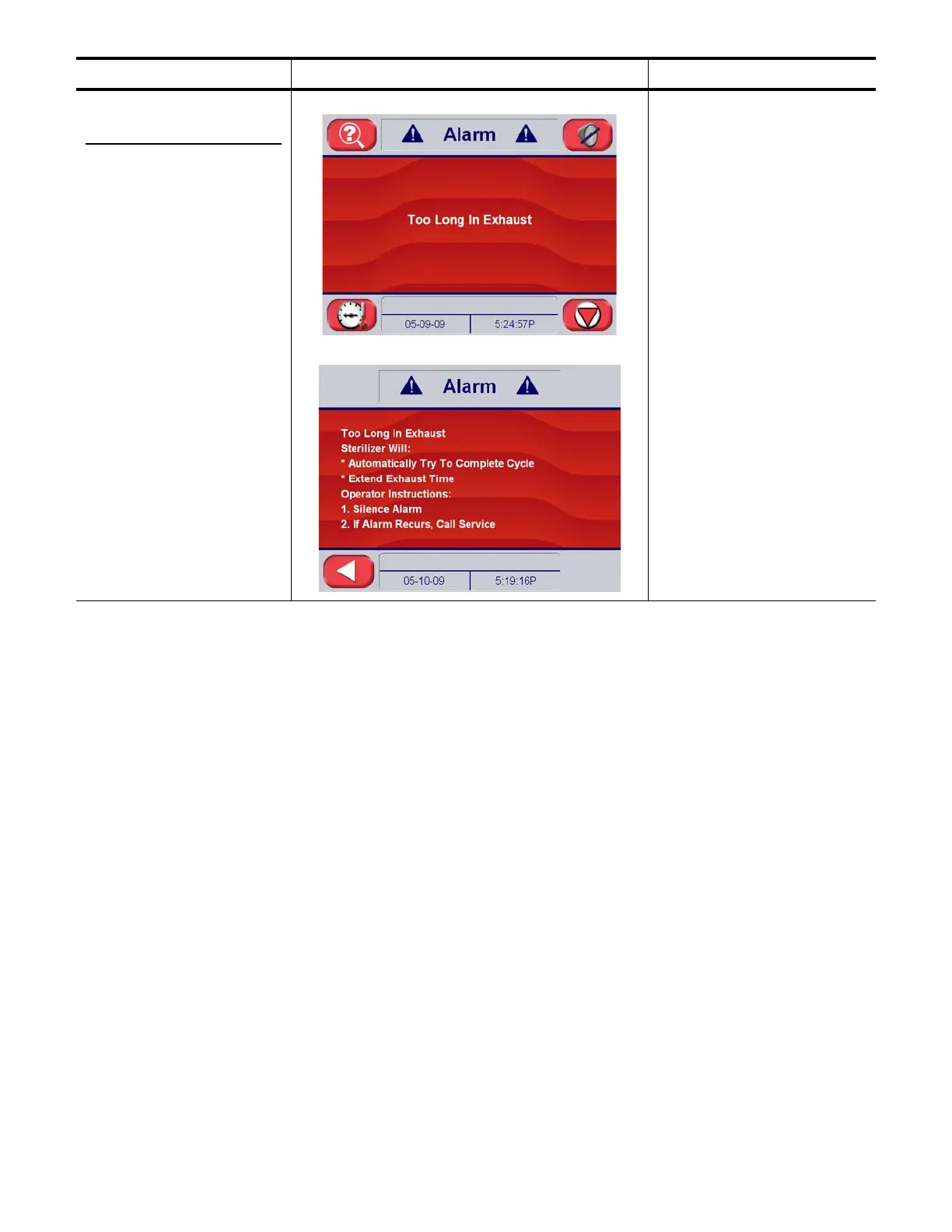

Alarm Screen

Alarm Detail

Chamber did not exhaust to

atmospheric pressure within

allotted time.

Causes and Correction:

1. Chamber drain strainer

plugged

•Clean

2. Valve malfunction

•Repair V03

3. Control out of calibration

• Recalibrate (contact

qualified Service person)

Table 9-1. Operator Troubleshooting – In-Cycle Alarms (Continued)

Condition Alarm Screen on Sterilizer Control
