9-22

129390199 Operator Manual Troubleshooting

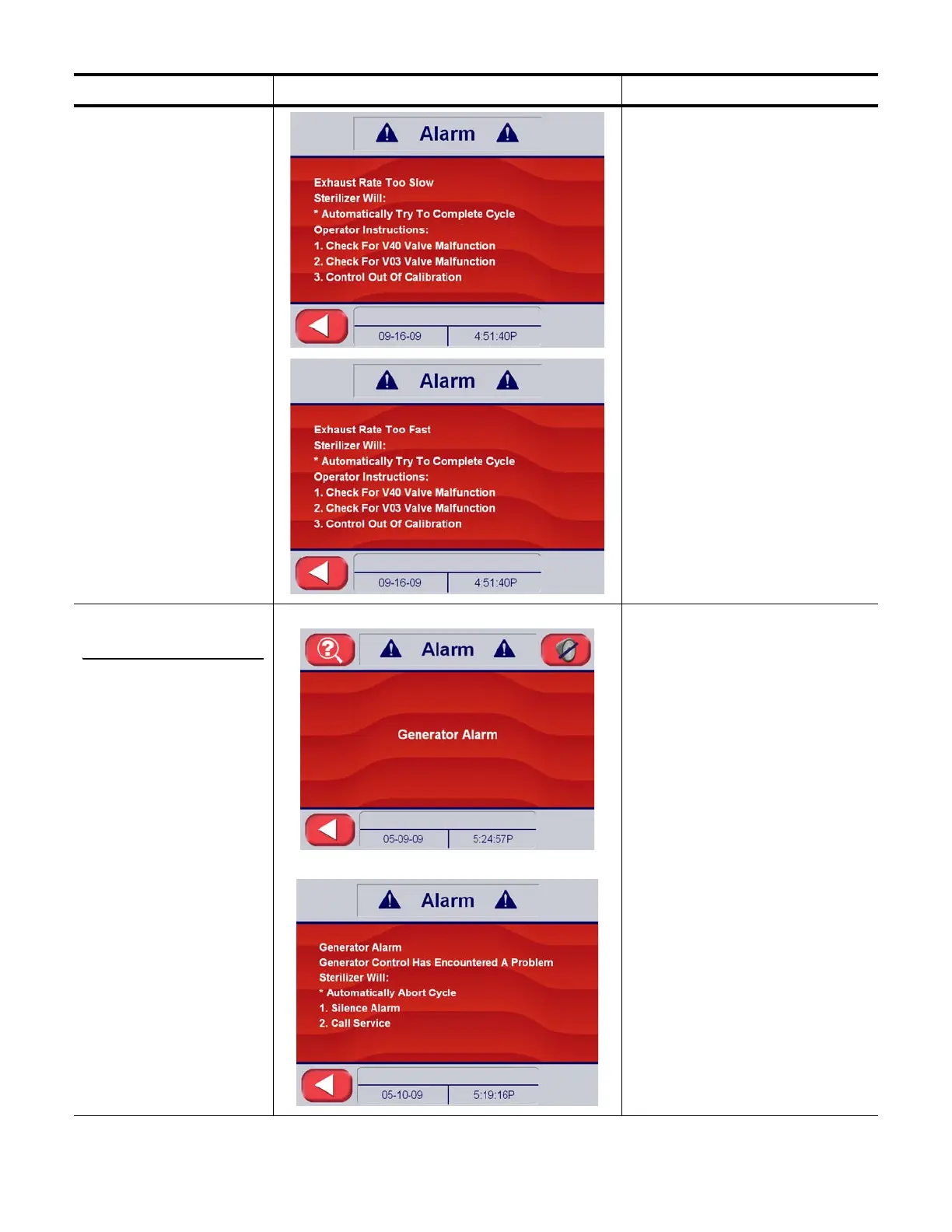

9.4.12 Exhaust

Rate Too Fast

Occurs if liquid cycle fast

exhaust rate is too fast.

Chamber exhausted faster than

the expected rate.

Causes and Correction:

1. Solenoid valve malfunction –

Repair V40

2. Solenoid valve malfunction –

Repair V03

3. Control out of calibration –

Recalibrate (contact qualified

service person)

9.4.13 Generator

Alarm

Occurs if generator

control encounters a

problem.

Alarm Screen

Alarm Detail

Generator control has

encountered a problem.

Call STERIS service to resolve

issue.

Table 9-3. Operator Troubleshooting – Sensor Alarms (Continued)

Condition Alarm Screen on Sterilizer Control Service Information
