9-24

129390199 Operator Manual Troubleshooting

Condition Alarm Screen on Sterilizer Control Service Information

9.5.2 Too Long to

Fill Tank

(Green Machine)

Occurs if tank fill time

exceeds 5 minutes.

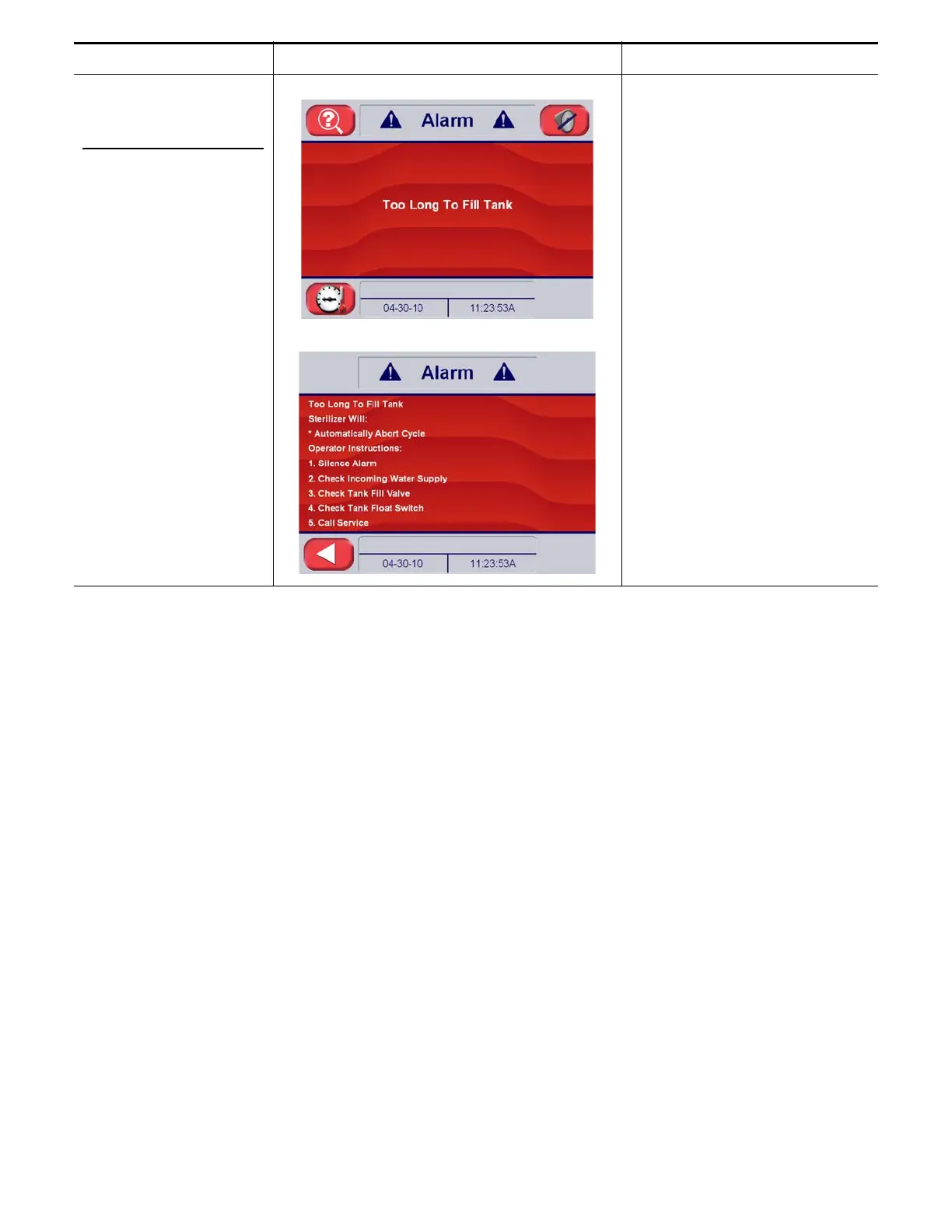

Alarm Screen

Alarm Detail

Tank fill time exceeds 5 minutes.

Causes and Corrections:

1. Check water utility supply

• Water pressure should be a

minimum of 20 psig

(dynamic).

• PS3 – Water Utility Supply

Pressure Switch

• V4 – Tank Fill/Cooling Valve

• ST1 – Water Utility Supply

Strainer

2. Check LLS2 – Tank Float

Switch

3. Check MV6 – Tank Drain

Valve is closed.
