9-16

129390199 Operator Manual Troubleshooting

9.4 Sensor Alarms The following alarm screens appear anytime the sterilizer is

energized. The sensors are continually monitored whenever sterilizer

is in- or out-of-cycle.

Table 9-3. Operator Troubleshooting – Sensor Alarms

Condition Alarm Screen on Sterilizer Control Service Information

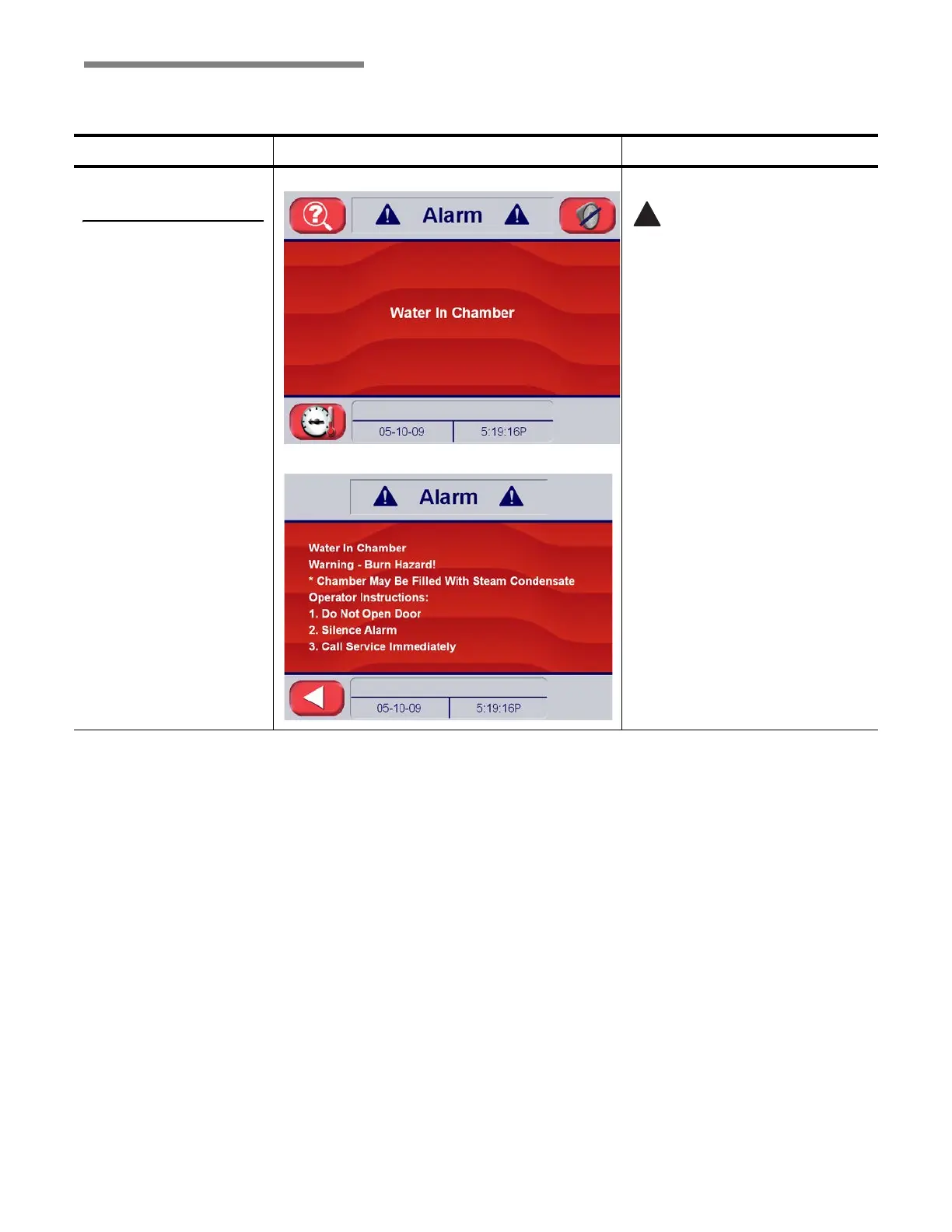

9.4.1 Water In

Chamber

Occurs if excess water is

sensed in the chamber.

Alarm Screen

Alarm Detail

Excess water sensed in chamber,

Warning! Burn Hazard

Causes and Correction:

1. Water entered chamber

through steam piping

• Check boiler or steam

generator

• Repair piping

2. Water float sensor malfunction

• Repair

3. Water entered chamber

through drain piping

• Check V40 and V3 for proper

operation, repair if necessary
