5-27
5.2 Testing CDMA Mobile station Output

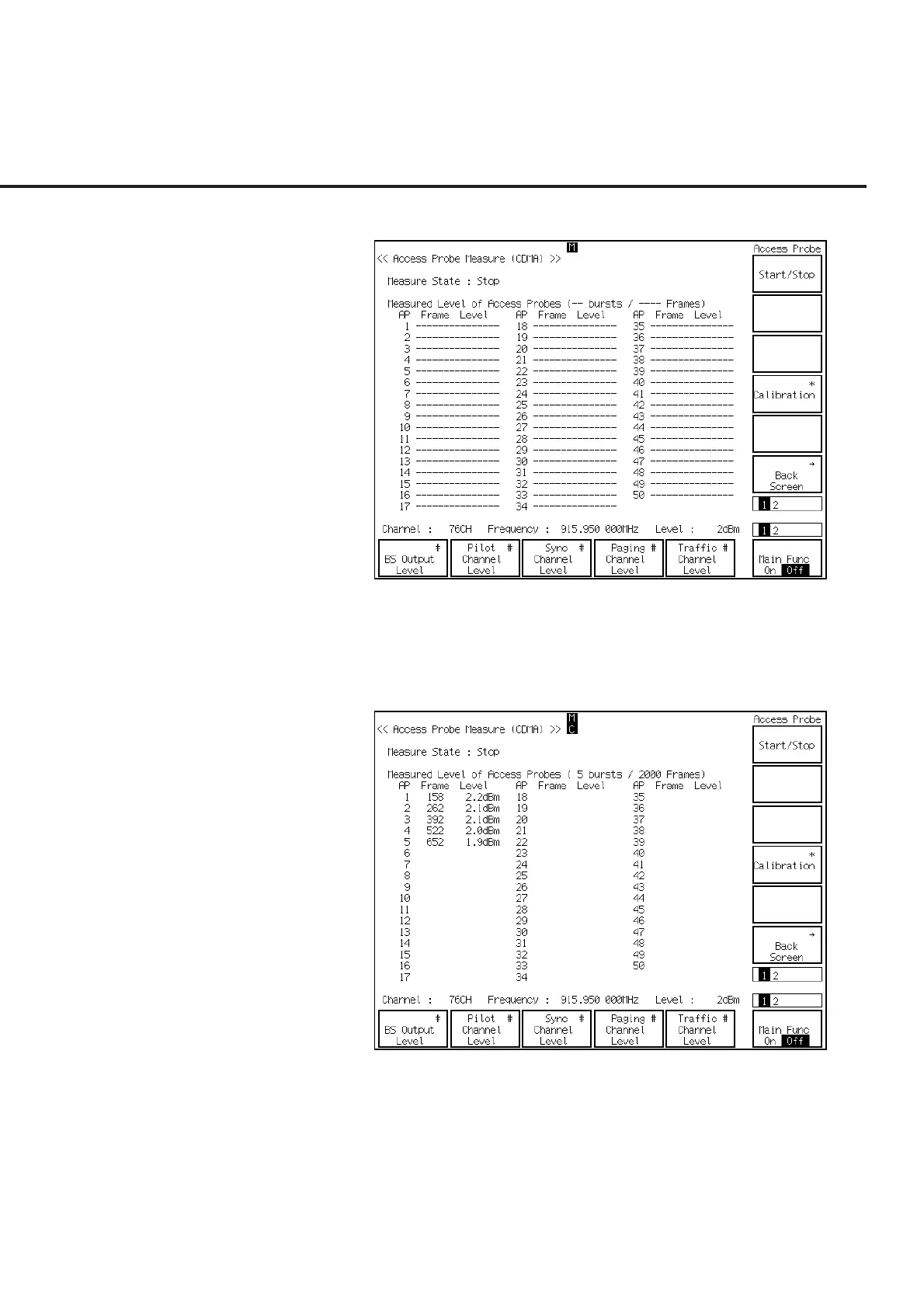

(19) The Access Probe Measure screen (shown below) is displayed.
(20) Press the F10 (Calibration) key and the F8 (Int. Osc.) key to perform the calibra-
tion using the internal oscillator.
(21) Press the Single key or the Continuous key to start the access probe output
power measurement. The measurement result 1 is shown as follows:
(22) Then change parameters to perform the similar test.
(23) Press the F6 (Main Func On Off) key to turn On the Main Func.
(24) Press the F1 (TX & RX Tester) key.
(25) Set the following items on the Setup Common Parameter screen:
♦ Set Access Parameter NON_PWR at 3.
♦ Set Access Parameter INIT_PWR at 3.
(26) Press the F1 (TX Measure) key.
