SmartROC D65 T4F 9 Angle instruments
118 No: 713944459.6 en

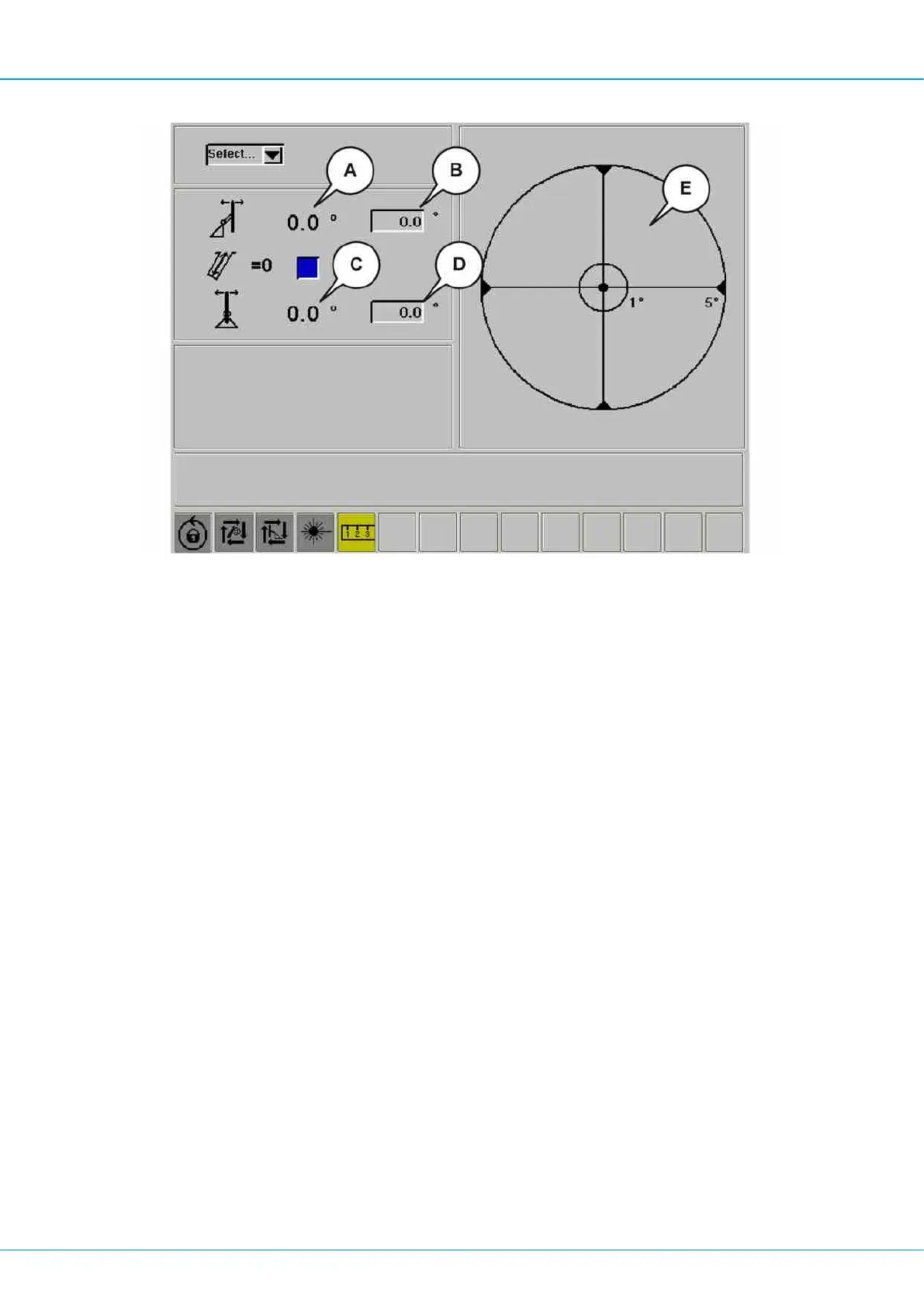

Direct selection menu - F4.
Shown in the angle instrument display are four numbers, two each for the tilt-incline and
two each for the side gradient plus a graphic image of the deviation from desired value.
1.
Actual inclination front/back: Shows the actual inclination of the feeder. When the
feeder is positioned perfectly, the desired value and the actual value are the same.
2.
Desired inclination forward/backward: Set the desired inclination angle in relation
to the reference point (aim device). Select and activate the box by scrolling with the
arrow keys until the box turns blue and then press Enter to open it. Move the cursor in
the box to the relevant decimal. Set the desired hole inclination with the arrow keys
and then press Enter to confirm.
3.
Actual inclination left/right: Shows the actual inclination of the feeder. When the
feeder is positioned perfectly, the desired value and the actual value are the same.
4.
Desired inclination left/right: Set the desired inclination angle in relation to the ref-
erence point (aim device). Highlight the box by moving with the arrow keys until is
turns blue and then press the enter key to open it. Move the cursor in the box to the
relevant decimal. Set the desired hole inclination with the arrow keys and then press
the enter key to confirm.
5.
Reset: Resetting the drilled length instrument. Before the start of each hole, the drill
bit should be positioned against the ground. Change menu by pressing F1, then the
cursor will automatically be in the reset box of the F1 menu. Press Enter. The actual
drilled length should then show 0. The display will continue to show the menu for drill
pressure settings F1.
6.
Graphic: The graphic shows deviation from the desired inclination via a line drawn
in the direction of the deviation. The feeder spike must be positioned in the opposite
direction of the line to reduce the deviation. When the feeder is set with the desired
amount of inclination, only a dot is shown in the centre of the graphic.
