SmartROC D65 T4F 5 Controls
49 No: 713944459.6 en

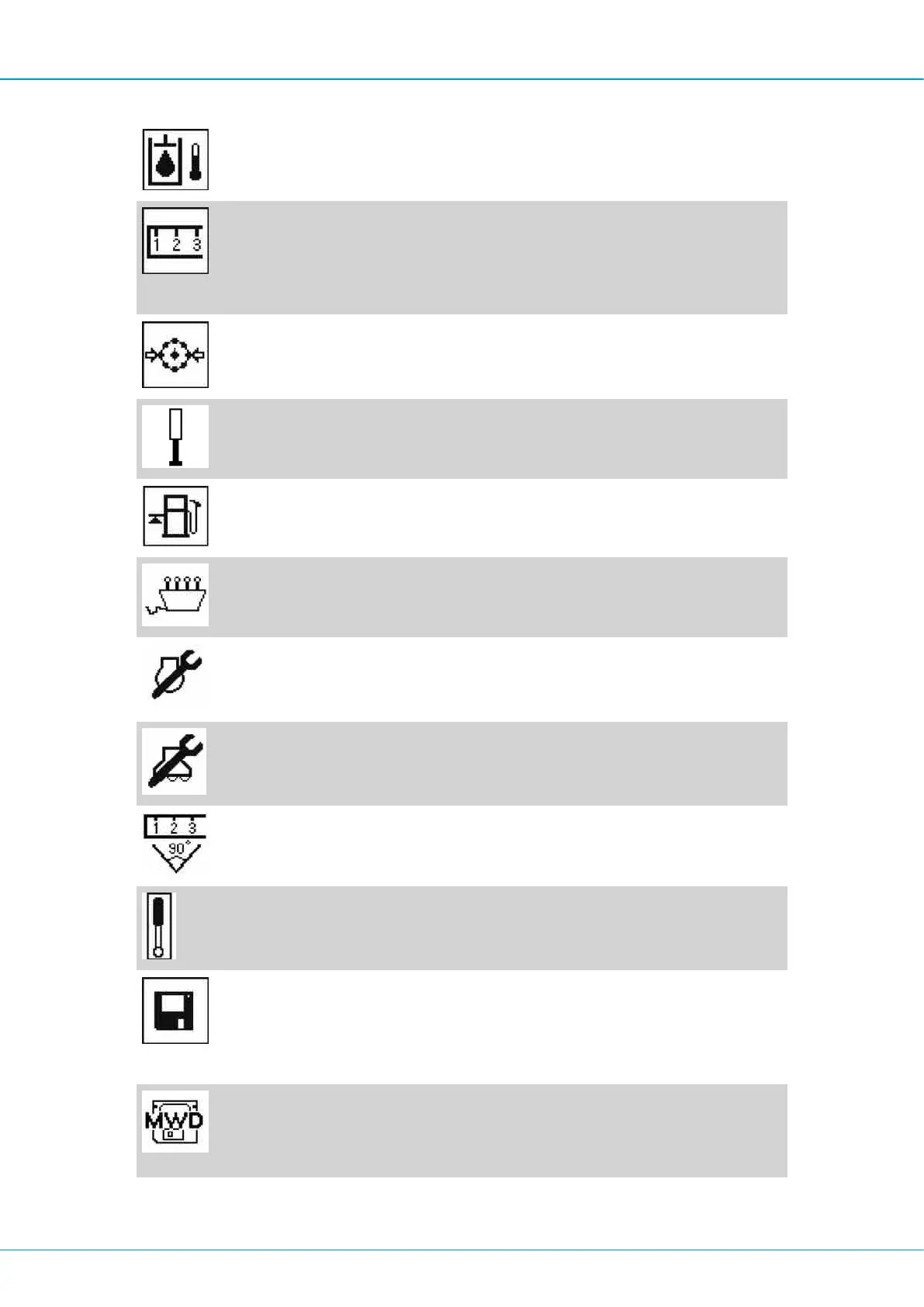

Yellow/Red warning/fault High or low hydraulic oil temper-
ature. The diesel engine turns off
automatically if a fault occurs.
Yellow warning Length sensor not calibrated.
This icon is displayed when the
control system starts and stops
when the rock drill cradle has
been calibrated.
Red fault Low HECL pressure. Drilling is
switched off automatically.
Yellow warning Jack down.
Yellow warning Low fuel level. The icon is activ-
ated when the fuel level drops
below 80 litres.
Yellow warning Contact with remote control
broken.
Yellow warning Time for engine service.
Yellow warning Time for rock drill service.
Yellow warning Erroneous positioning data ob-
tained from angle sensor.
Yellow warning Lever fault: Erroneous values
from lever/levers. See event log
for more information.
Yellow warning File transfer initiated. Goes out
automatically when saving is fin-
ished. Do not remove the USB
memory stick while the sym-
bol is displayed!
Green info The MWD log is saved on a
card.Do not remove the USB
memory when the symbol is il-
luminated!
