Atlas Copco SmartROC D65 T4F User Manual

SmartROC D65 T4F 5 Controls
50 No: 713944459.6 en

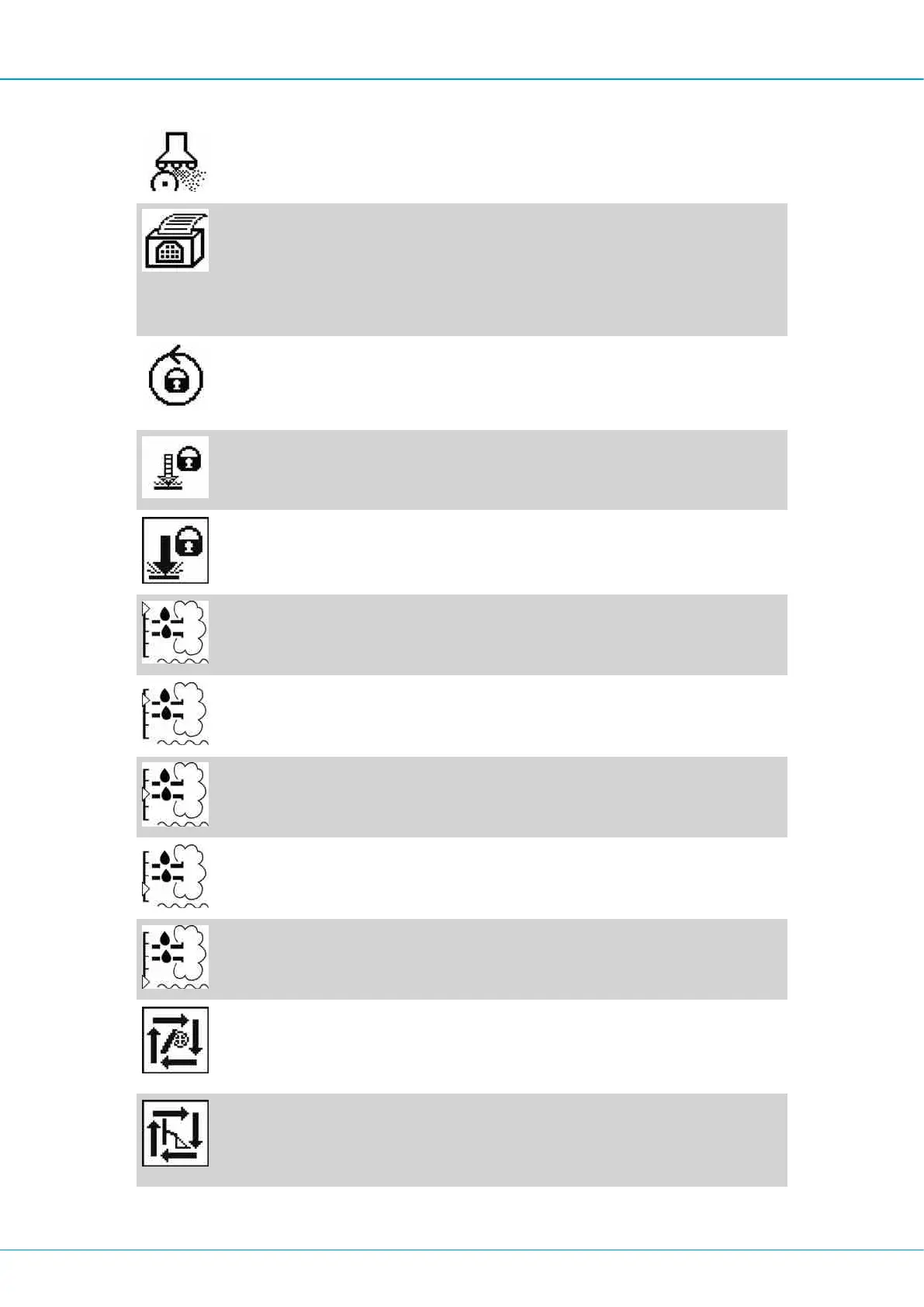

Yellow warning Time to regrind drill bit.
Yellow warning Quality log has been corrupted
because the operator has added
one more hole than the max-
imum allowed. Create a new cor-
rect drill plan to clear the warn-
ing symbol.
Grey/Green Info Green=no locking. This symbol
is always displayed when the
drilling system is unlocked!
Grey=locked rotation
Green info Locked collaring.
Green info Auto-drilling locked. This icon is
green while the function is activ-
ated.
Green info Indicates that the DEF (Diesel
Exhaust Fluid) level is > 80%
Green info Indicates that the DEF (Diesel
Exhaust Fluid) level is < 80%
Green info Indicates that the DEF (Diesel
Exhaust Fluid) level is < 60%
Green info Indicates that the DEF (Diesel
Exhaust Fluid) level is < 40%
Green info Indicates that the DEF (Diesel
Exhaust Fluid) level is < 20%
Grey/Green info Option Green=the automatic rod
handling system is activated.
Grey=Inactive or option not ac-
tivated.
Green/Grey info Option Green=the automatic po-
sitioning system is active.
Grey=Inactive or option not ac-
tivated.
