4.4.11.2 Target Display

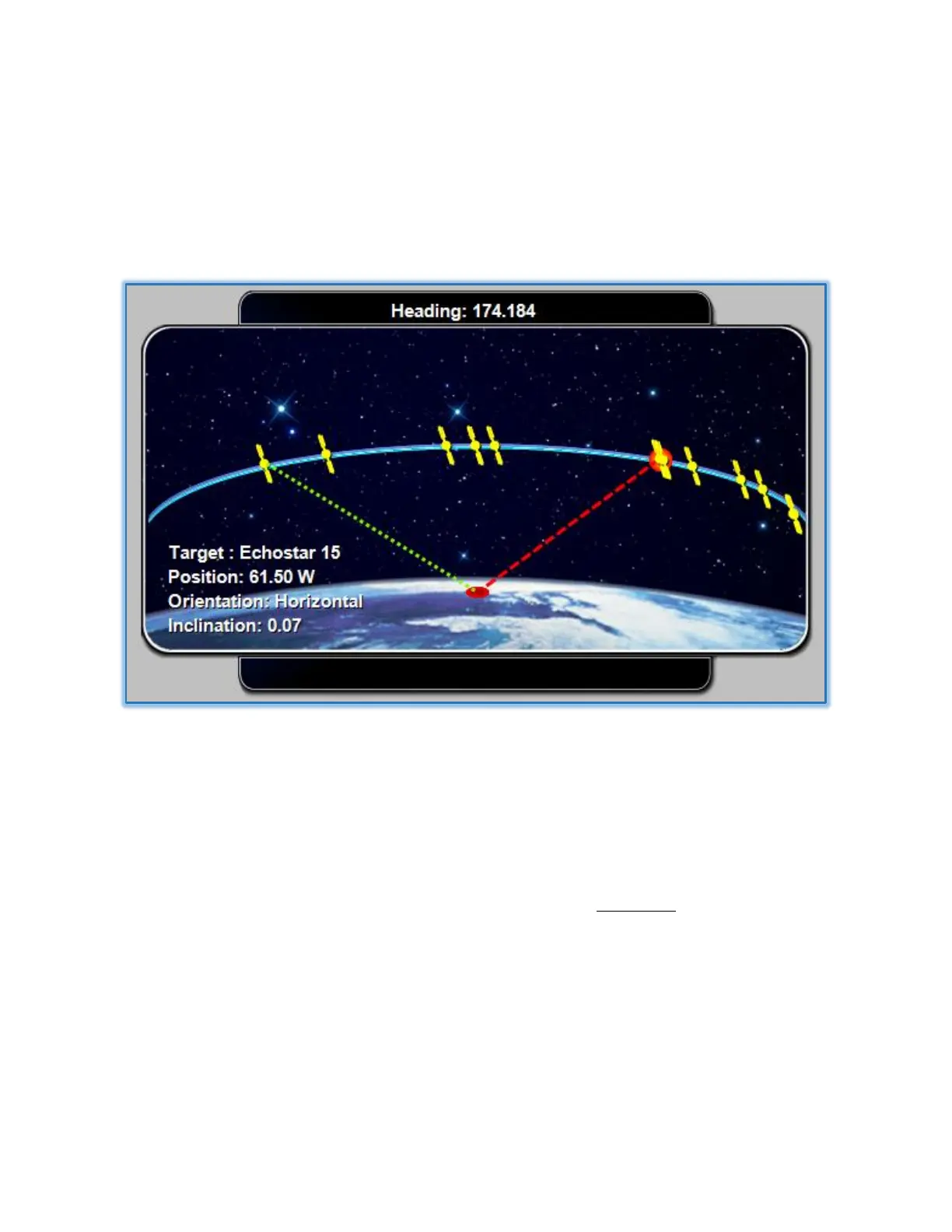

Figure 4.4.11.2 - Graphic Controller Window, Target Display
The target display shows a simulation of the visible sky from the controller’s Latitude and Longitude
position on the earth. The point on the earth currently occupied by the antenna is represented as a
circle (red or green) on the earth’s surface. An arc is displayed above the earth; this arc is populated
with satellites that are currently in use by the controller. Use the satellite list (View > Satellite List)
to add or remove satellites from the controller’s list of selectable targets. The current heading of
the antenna is shown at the top of the display. Any messages received from the controller are
shown below the display. A green line indicates the current approximate pointing solution of the
antenna.
