4.4.11.3 Coordinate Dials

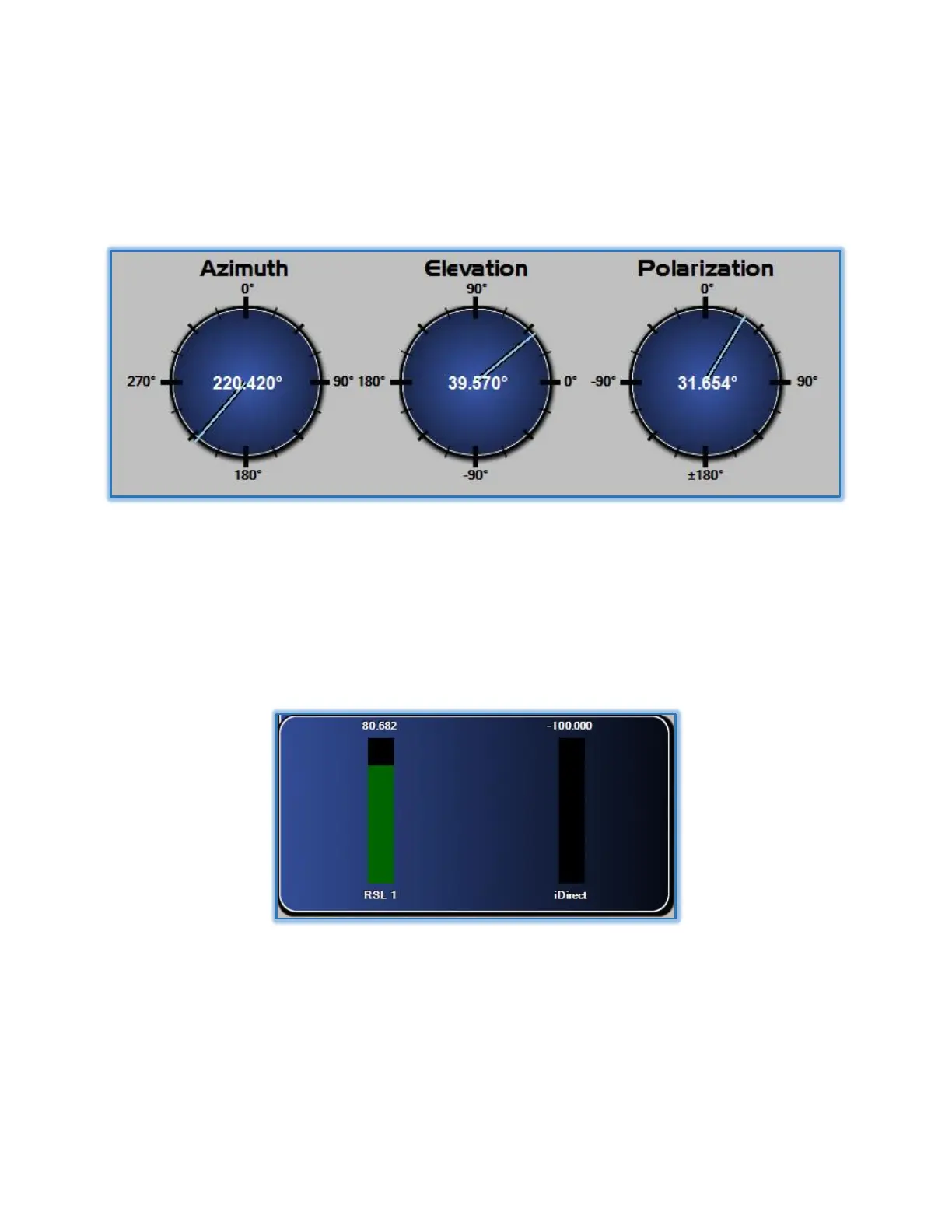

Figure 4.4.11.3 - Graphic Controller Window Coordinate Dials
Each axis of the positioner is represented by a graphic dial showing the current position of that axis in
world coordinates. The current value of that axis is also displayed in the center of each dial.
4.4.11.4 Signal Strength Meter
Figure 4.4.11.4 - Graphic Controller Window Signal Strength Meter
The signal strength of each signal source is represented as a bar chart in the signal strength meter.
Depending on the strength of the source the associated color bar will increase and decrease. The
sources included are shown below.
