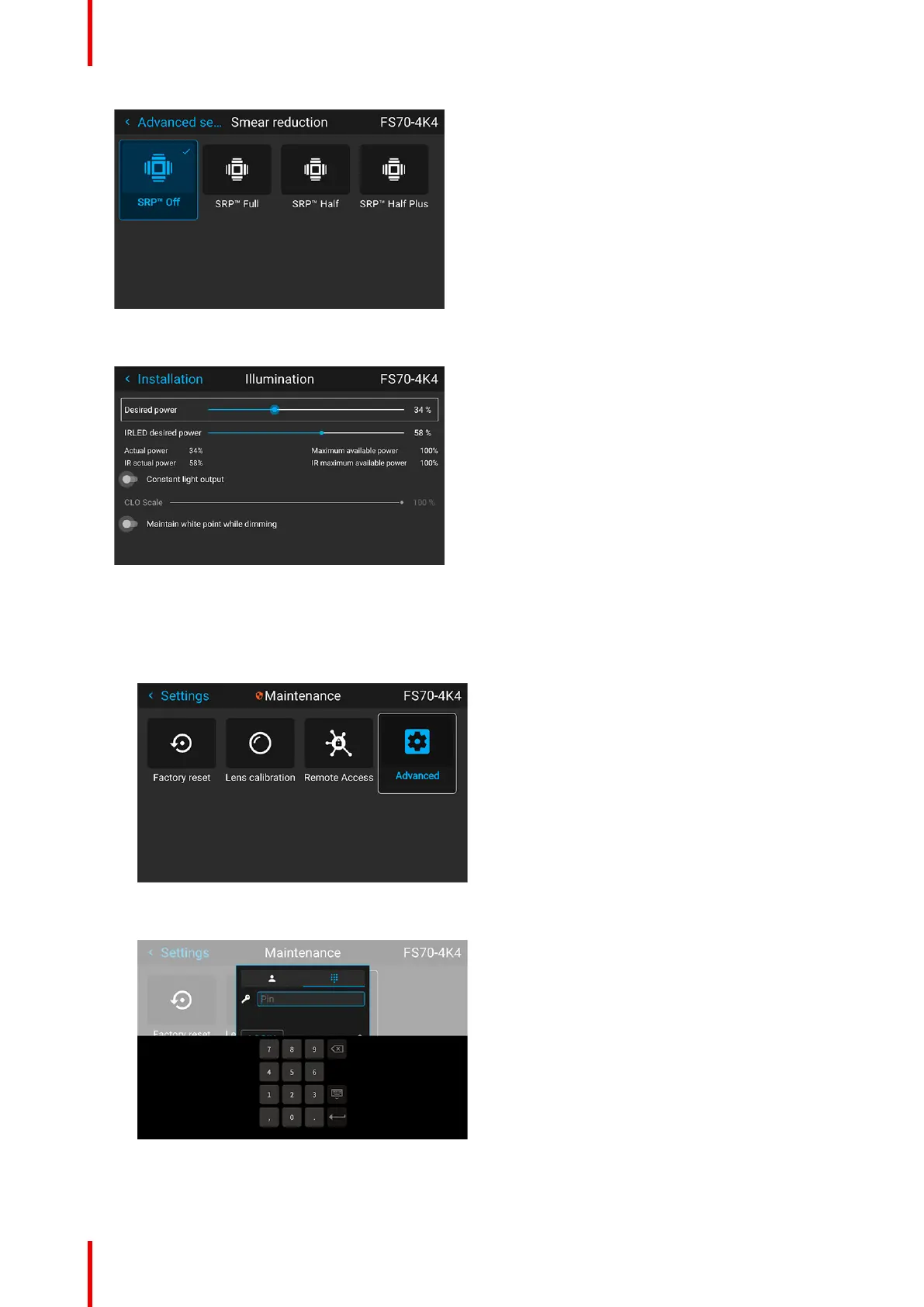

6. Set Desired power and IRLED desired power to 100%. Installation -> Illumination
Image C–14
7. Use a white test image either from an external source or the internal White test pattern. A chromameter is
needed to measure the coordinates of the white test pattern.
8. Adjust the laser pulse value to obtain the desired white y-coordinate.
a) Log in as Power user. Go to menu Menu -> Settings -> Maintenance -> Advanced
Image C–15
b) Enter the access code from the remote controller numeric pad to have access to the feature.
Image C–16
c) Enter the menu to adjust the laser pulsing value.Maintenance -> Advanced -> Laser pulsing
Color calibration guide
