4. Lamp & Lamp House
12

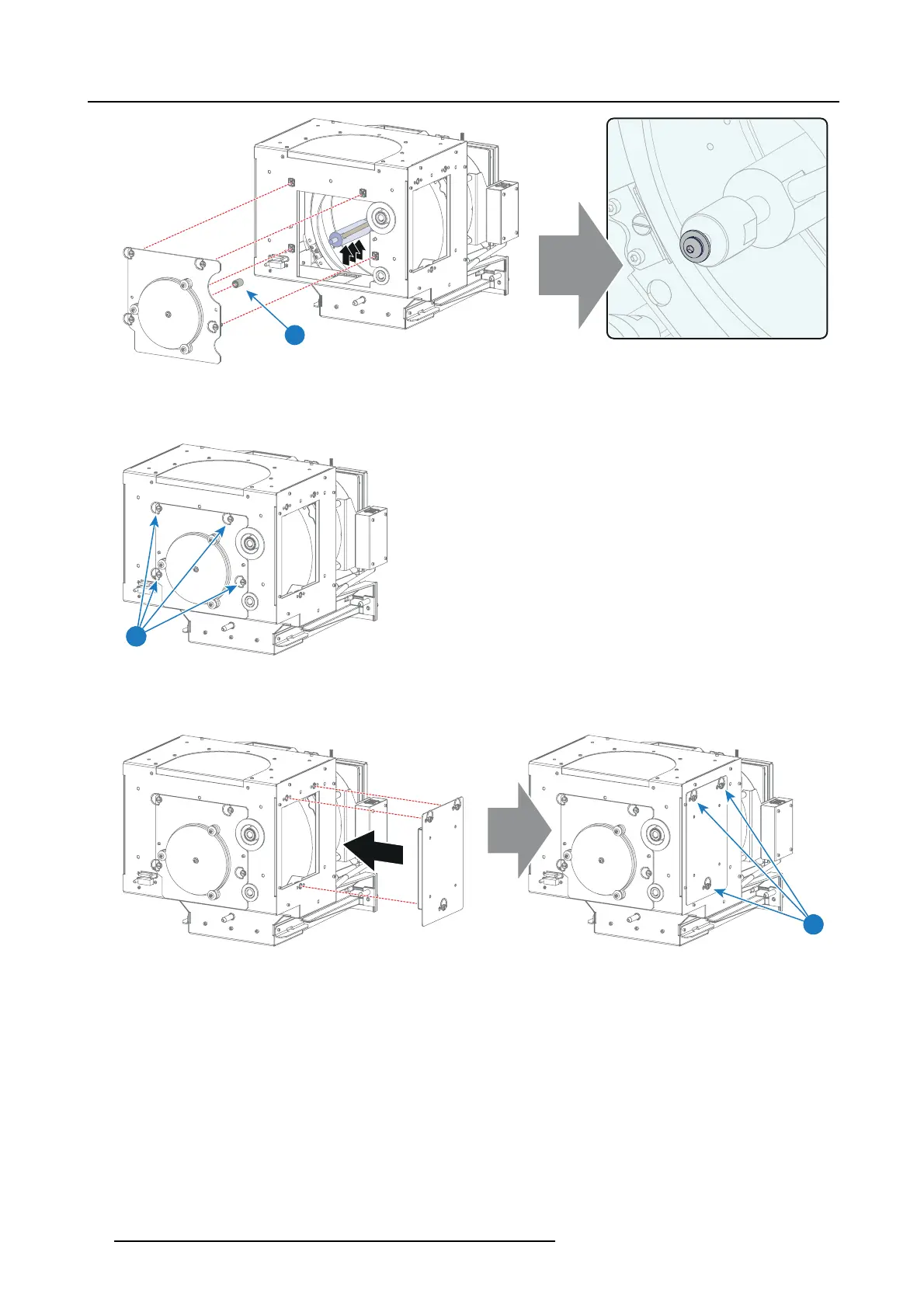

Image 4-43
10.Secure the UV block er by fastening the four quarter turn screws (reference 5 image 4-44) as
illustrated.
Note: Ensure that the quarter turn sc rews turning wires are flush with the cover or interference will occur while inserting t he
Lamp House into t he projector.
5
Image 4-44
11.Install the side cover of the Lamp House and fasten the three quarter turn sc rews (reference 4 image 4-45) of the cover.
Note: Please e nsure that the quarter turn screws turning wires are flush with the c over or interference w ill occur while inserting
the Lamp H ouse into the projector.
4
Image 4-45
12.Secur e the xenon lam p cathode with the hexagon socket head cap screw (reference 1 image 4 -46), spring washer (reference 2
image 4-46) a nd pla in wa sher (reference 3 image 4- 46). Fasten the screw with a torque of 5Nm(3,7 lbf*ft). Use a torque wrench
with a 5 mm Allen socket.
Caution: Make sure that both pins (reference 11 image 4-46) of the cathode adapter remain engaged in the foreseen slots.
62
R5905963 PROMETHEUS SERIES 09/03/2015
