Connections
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11 Baumüller Nürnberg GmbH
128
of 218
7.14
Encoder 
evaluation 
HIPERFACE
®
The encoder evaluation is provided with a HIPERFACE
®
-interface.
The encoders, which meet the following technical specifications, can be used:
Voltage supply 10 V
DC
Signal level HIPERFACE
®
- specification of the process data
channel (~1 V
SS
; REFSIN/REFCOS 2.5V)
Current input Max. 250 mA

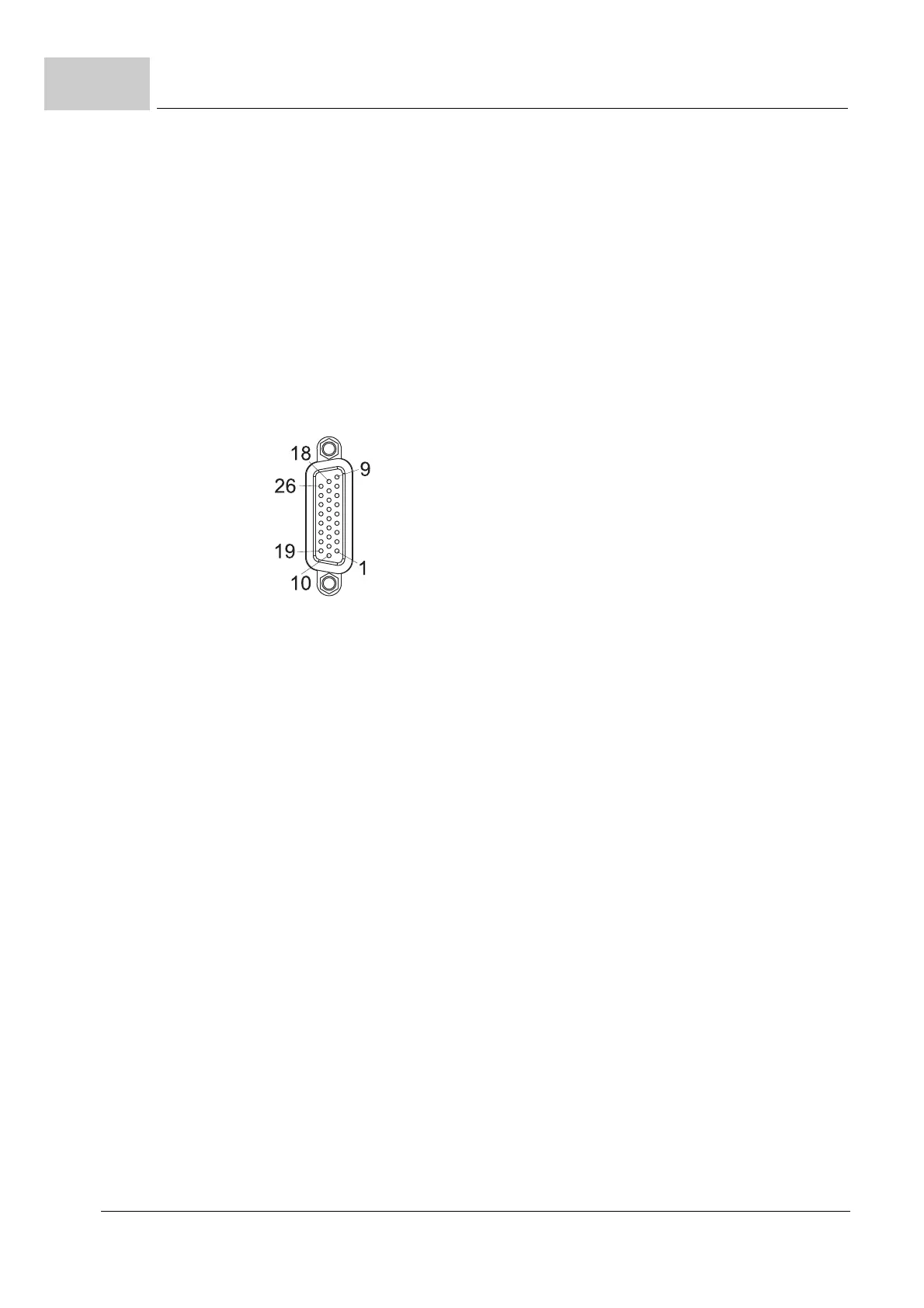

D-sub-connector
26-pin
1 GND encoder supply
2 +10 V encoder supply
3 reserved *
4 COS +
5 COS -
6 SIN +
7 SIN -
8 reserved *
9 reserved *
10 reserved *
11 reserved *
12 reserved *
13 reserved *
14 reserved *
15 reserved *
16 reserved *
17 Temperature +
18 Temperature -
19 RS485 Data +
20 RS485 Data -
21 reserved *
22 reserved *
23 reserved *
24 reserved *
25 reserved *
26 reserved *
* do not occupy
