Encoder 
evaluation with 
EnDat
®
2.1 or SSI
The encoders, which meet the following technical specifications, can be used:
Voltage supply 5 V
DC
controlled
Signal level ~1 V
SS
Current input Max. 250 mA

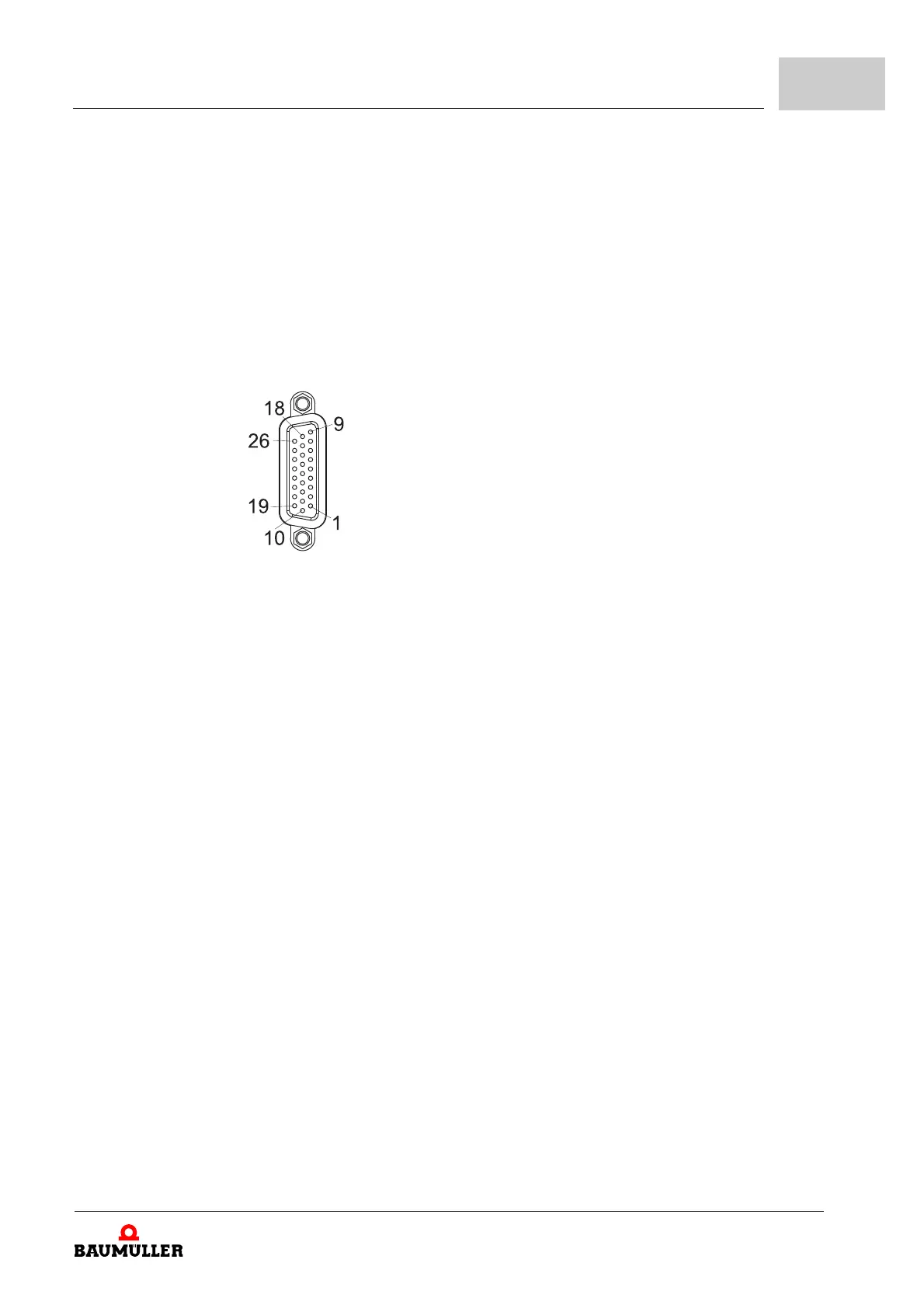

D-sub-connector
26-pin
1 GND encoder supply
2 +5 V encoder supply
3 Clock+
4 A + (COS +)
5 A - (COS -)
6 B + (SIN +)
7 B - (SIN -)
8 reserved *
9 reserved *
10 reserved *
11 Sense GND
12 Sense Vcc
13 Clock-
14 reserved *
15 reserved *
16 reserved *
17 Temperature +
18 Temperature -
19 Data +
20 Data -
21 reserved *
22 reserved *
23 reserved *
24 reserved *
25 reserved *
26 reserved *
* do not occupy
