Connections
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11 Baumüller Nürnberg GmbH
134
of 218
7.14
3-phase device without internal ballast resistor BM3XXX-XTXX-XXXXX-E-XXXXX-

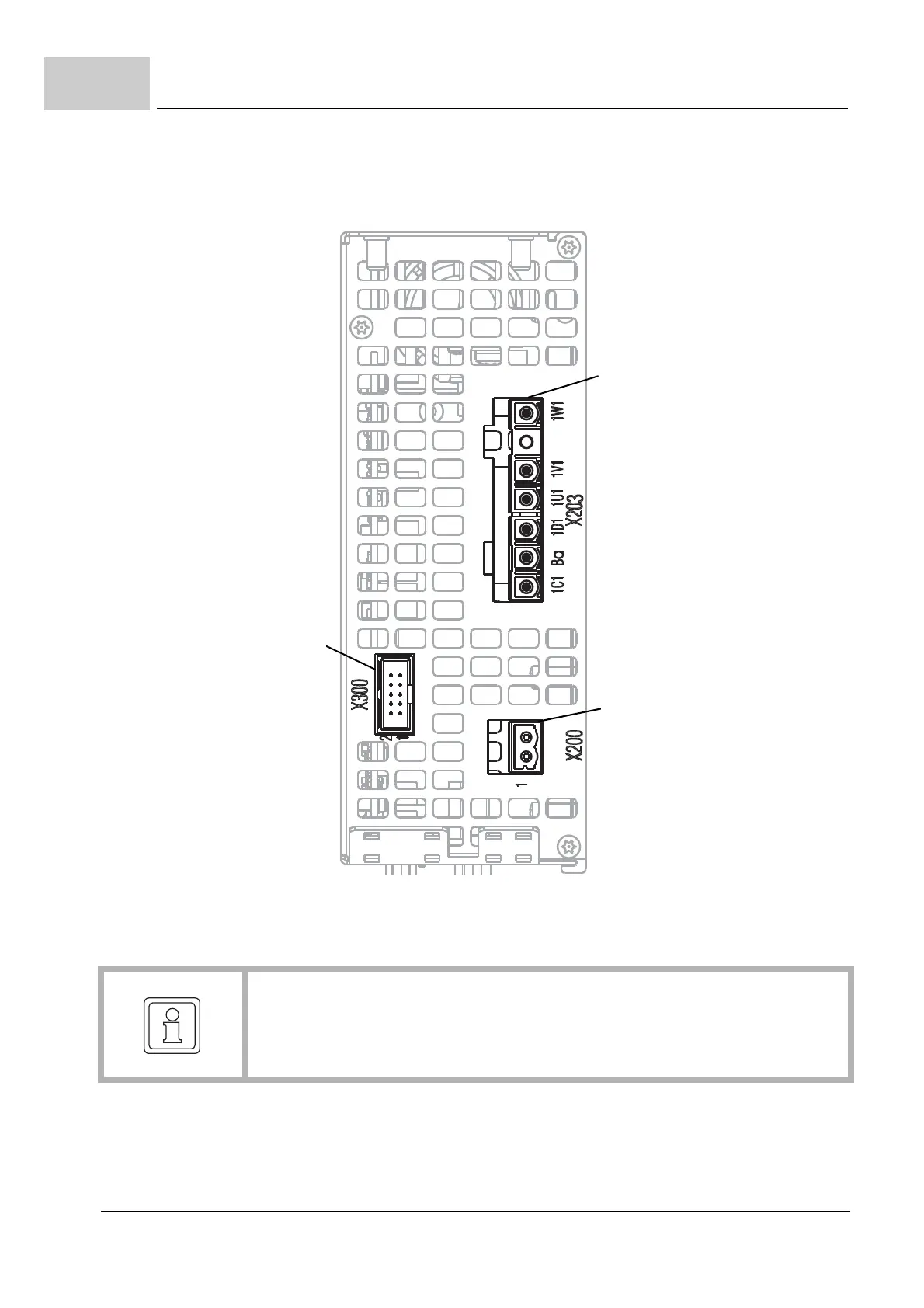

Figure 54: Connections at the top, BM3XXX-XT without internal ballast resistor
X300:
Signal bus
X203:
Power supply connection
Ballast resistor connection
DC link connection
X200:
24V-voltage supply
NOTE!
The ballast resistor connection is not short-circuit proof.
When using devices BM3200, BM3300 without internal ballast resistor an external
ballast resistor must be connected in case of braking operation.
